Variable Frequency Ultrasonic PCB Driver Circuit Board For Ultrasonic Jewelry Glasses Cleaner

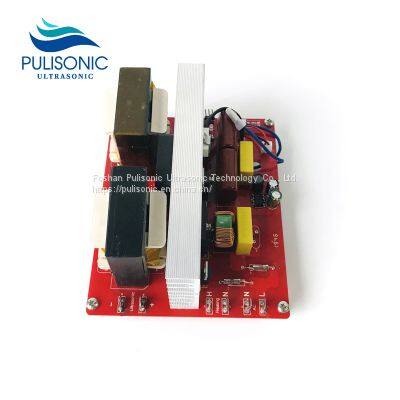

Introduction to PCB circuit board of low-power ultrasonic generator: the control box adopts other exciting circuit under microcomputer control, and the working mode of automatic frequency tracking and frequency scanning is adopted
And other advanced technologies. Compared with the traditional control box, it has stable and reliable operation, continuous and adjustable ultrasonic power, and can give full play to the potential of the transducer. work
Automatic frequency tracking enables better output matching, stronger power and higher efficiency. The unique frequency sweeping working mode makes the cleaning fluid under the action of frequency sweeping
Form a small reflux to timely take the dirt stripped off by ultrasound away from the workpiece surface, so as to achieve a faster and more thorough cleaning effect and ultrasonic cleaning
Higher washing efficiency. At the same time, it has perfect protection functions: overheating protection and overcurrent protection, which makes it more reliable.
Low power ultrasonic generator with digital power adjustment can meet different cleaning requirements.
Type |
Frequency |
Power |
Dimension(mm) |
Transducer numbers |
PLS-DLB60 |
25khz,28khz,33khz,40khz |
60W |
132×85×45mm |
1 piece |
PLS-DLB100 |
25khz,28khz,33khz,40khz |
100W |
132×85×45mm |
1-2 pieces |
PLS-DLB120 |
25khz,28khz,33khz,40khz |
120W |
132×85×45mm |
1-2 pieces |
PLS-DLB150 |
25khz,28khz,33khz,40khz |
150W |
132×85×45mm |
1-3 pieces |
PLS-DLB200 |
25khz,28khz,33khz,40khz,80khz,100khz,135khz |
200W |
180×130×60mm |
4 pieces |
PLS-DLB300 |
25khz,28khz,33khz,40khz |
300W |
180×130×60mm |
6 pieces |
PLS-DLB400 |
25khz,28khz,33khz,40khz |
400W |
180×130×60mm |
8 pieces |
PLS-DLB500 |
25khz,28khz,33khz,40khz |
500W |
180×130×60mm |
10 pieces |
PLS-DLB600 |
25khz,28khz,33khz,40khz |
600W |
180×130×60mm |
12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | ||||
