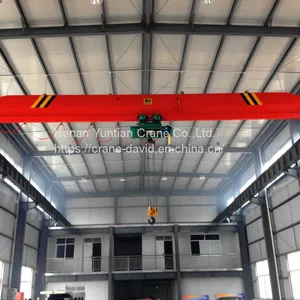

Indoor loading and unloading crane 5 tons single beam bridge crane with hoist
- 10000 Set / Sets per Month
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- CCS, BV, ABS Approved Marine Ship Telescopic Folding Arm Crane
- China Supplier Single-Arm Rack Floating Crane for Bulk Cargo
- Barge Mounted Crane for Bauxite Discharging Transfer From Vessel to Barge
- Port Grab Crane Coal Bauxite Sand Stone Unloading Crane
- Fixed Type Lattice Boom Port Crane Heavy Duty
- Lattice Boom Port Fixed Crane Widely Usage with Customized Color
Product Details
Brand Name: | YT | Certification: | CE | Warranty: | 12 month |
Max. Lifting Load: | 50 ton | Max. Lifting Height: | 10 m |
Product Description
LDA Sinlge Girder Overhead Crane is widely used in plants warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosives environment.
LDA Sinlge Girder Overhead Crane has two operational methods, ground or operational room which has open model and closed model and can be installed on left or right side according to the practical situation. And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users' Choice users' different conditions.
Contact us for more information
Main Features of LDA model Crane:
1). Light structure,easy installation and maintenance;
2). Widely used in different places for hoisting such as factories,warehouses and material yards;
3). Reasonable structure,strong bearing capacity ;
4). Low noise, soft starting and stopping ;
5). Safe and reliable operation ;
6). Low cost maintenance, long working life;
7). Strong box type,welding by machine hand.;
8). Wheels,wirerope drum,gears, couplings are processed by CNC manchine center, TOP quality control;
9). Heavy duty slipring motor,Or Sq.cage motor with VVVF, IP54 or IP44,insulation class F or H,soft starting and smooth running
10). Siemens main electric parts are used for durable and safe operation.;
11). Prohibited to use in the environment with inflammable,explosive and corrosive media.
Datailed Images:
Please click here for details communication
Sketch Drawing:
Technical Parameter:
Please contact me for customized parameters
Lifting Capacity | T | 1t | 2t | 3t | 5t | 10t | 16t | 20t | ||
Span | m | 7.5~22.5m | 7.5~31.5 | |||||||
Speed | Lifting | MD1 hoist | m/min | 8/0.8 (7/0.7) | 3.5/0.35 | |||||
CD1 hoist | 8 (7) | 3.5 | ||||||||
Traveling of electric hoist | 20 | 20 | ||||||||
Traveling of crane | 20/30 | 20/30 | ||||||||
Wheel diameter | Φ270 | Φ370 | ||||||||
Width of trail | 37~70mm | 37~70mm | ||||||||
Operational Model | remote control; ground handle | remote control; ground handle | ||||||||
Working Duty | A3 | |||||||||
Power Supply | According to your demands | According to your demands |
Rated Products:
Click Here to Fill Out Your Inquiry in The Text Box to Get The Latest Quotation.
YunTian Group products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
Thank you for your interests in YunTian Group. Please feel free to submit your inquiry information to us. We love to talk and are not afraid to discuss any question about your crane, Hydraulic platform, hoist, winch need. After your inquiry, our sales manager will contact with you as soon as possible.
