Automatic disposable plastic plates and cups making machine, thermoforming machine
Usage

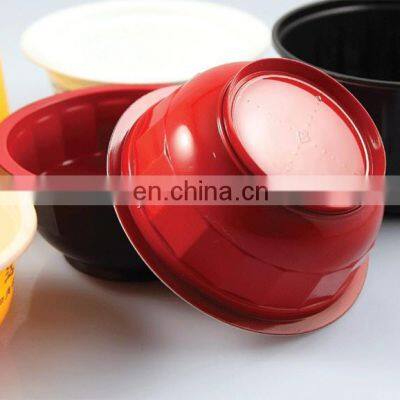

The machine mainly used for making different kinds of plastic cups, such as water drinking cups, jelly cups, yogurt cups, coffee cups, it can also make disposable bowls, lids, dishes, trays and ect.
Major construction features
The sheet feeding pin chain is controlled by motor with encode.
The stretching of plug inside of up mould is controlled by air cylinder.
The operation is controlled by PLC with touch screen.
Adopt four pillars to fix the mould.
Adopt hydraulic system to drive the movement of the mould.
Fill oil automatically to lubricate mechanism movement at certain time.
Temperature control modules to control each temperature area.
Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting in one stroke.
Machine frame adopts square steel, more stable and serviceable.
Convenient operation, reliable performance, low noise and high quality.
Technical:
|
Model |
FJL-SZ-680 I |
FJL-SZ-750 I |
|
Max. Forming Area |
650*320mm |
650*420mm |
|
Running Speed |
15-30cycles/min(According to sheet thickness, material used and product shape) |
|
|
Running Pattern |
Hydraulic/cam |
Hydraulic |
|
Oil Pump Motor Power |
7.5KW(Double Pump) |
15KW(Double Pump) |
|
Cutting Pattern |
In mould automatic |
|
|
Sheet Material |
PP.PS.HIPS.PET.PVC |
|
|
Sheet Thickness Range |
0.2-2mm |
|
|
Max. forming Depth, Sample Height |
120mm |
|
|
Max. Sheet Roll Dia |
800mm |
|
|
Heater arrangement |
(120Pieces,650W)Top+Bottom Heating With IR Ceramic Heater |
(152Pieces,650W)Top+Bottom Heating With IR Ceramic Heater |
|
Temperature Controller & Thermocouple |
PID K-Type |
|
|
Electrical Consumption |
40KW/h |
50KW/h |
|
Overall Power |
100KW |
120KW |
|
Air Consumption |
1.5-1.8m3/min, 0.6-0.8 Mpa |
2-2.5m3/min, 0.6-0.8 Mpa |
|
Dimension |
3.65*1.73*2.5m |
4*1.59*2.6m |
|
Weight(T) |
4.4 |
4.8 |
|
Power Supply |
380V/50HZ Three phase four wires |
|
