Factory Direct Price With High Efficiency 1tph Palm Oil Press Machine

Factory direct price high efficiency palm oil press machine

We have engaged in palm oil filed for many years, with our own factory and experienced engineers, will supply the most suitable proposal for customers.

We offer both production machine line and single press machines:

Small size palm oil mill with the capacity of : 1TPH, 2TPH, 3TPH 5TPH

Large and medium size palm oil mill: 10TPH, 15TPH, 20TPH, 30TPH,50TPH, 60TPH, 80TPH, 100TPH, 120TPH

Small palm kernel oil mill with the capacity of: 0.5TPH, 1TPH, 2TPH

Large and medium palm kernel oil mill:30TPD,50TPD,100TPD,200TPD,300TPD

Batch type refinery plant with the capacity of: 1TPD,2TPD,3TPD,5TPD,10TPD

Semi-continuous type refinery plant: 10TPD,20TPD, 30TPD

Full-continuous type refinery plant: 50TPD,100TPD,200TPD,300TPD,600TPD

Fractionation plant with the capacity: 1TPD to 600TPD

Double screw palm oil press production line introduction:

This is the complete production line, our engineer have built many palm oil mill in Tailand, Malaysia, Indonesia, Peru, Nigeria, Congo, have rich experience in palm oil filed. They design this small scale production line of the capacity from 1ton/hour to 5 tons/hour for customers.

This palm oil plant includes all the processings of sterilization, threshing, digesting, pressing, clarification, filtration, final oil drying system, all the pumps, tanks, pipes conveyor, and so on.

After harvesting the fresh palm fruit bunches, the finally you can get the high quality and pure palm oil.

Details of Each Steps of double screw palm oil press production line:

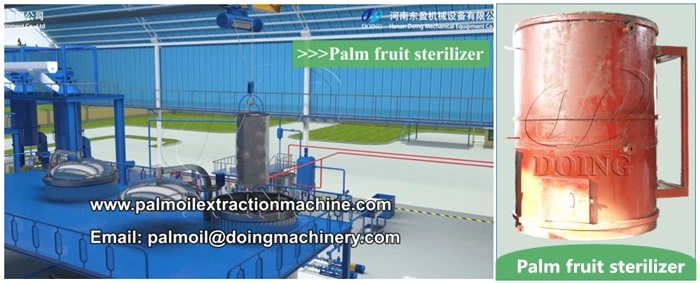

1- The first steps is sterilization: becasue the palm fruit bunches are very easy to rancidity, and then enfluence the quality of final crude palm oil, it must be processed with 24 hours.

Sterilization has  two important effects:

1) Prevent palm fruits rancidity.

2) Making it is easy to seperate the fruits from bunches.

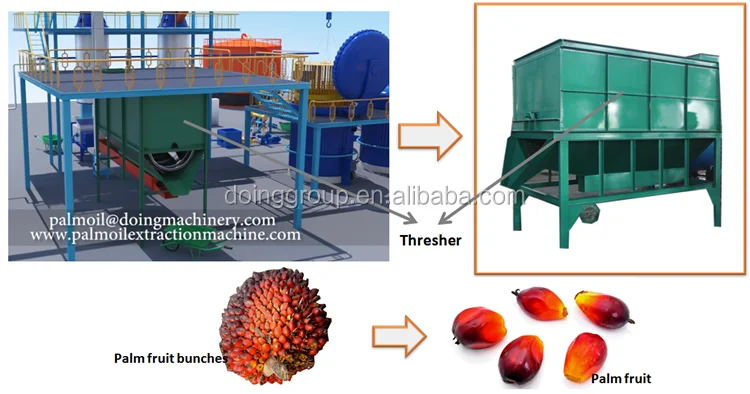

2- The secound step is threshing: using our threshing machine to separate the palm fruits from bunches.

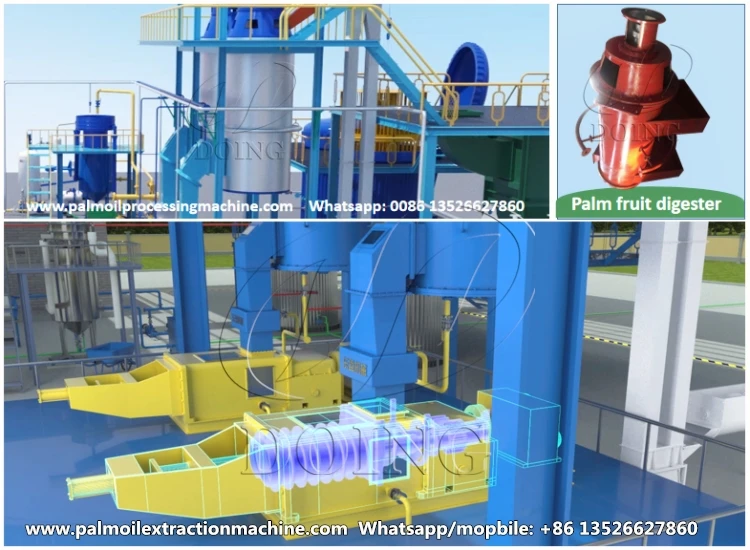

3- The third step is digesting: stripping the fruit and separate the pulp with the fruit, for easier pressing.

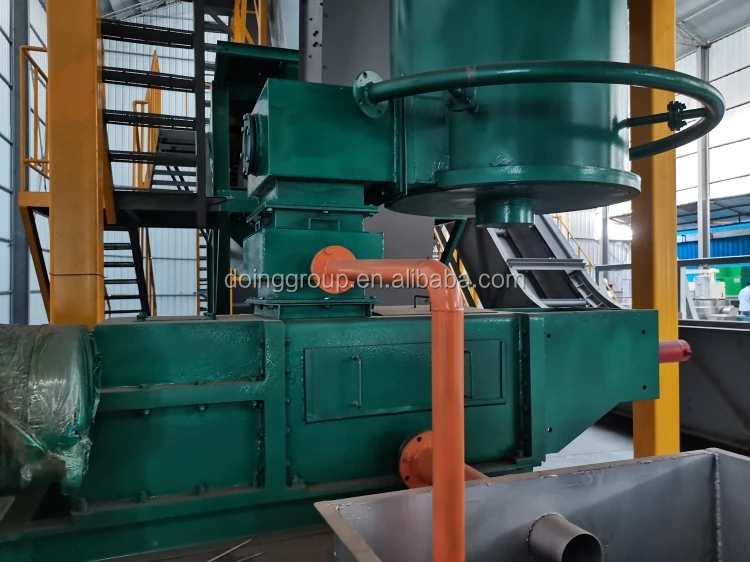

4- The fourth step is pressing oil: separate fruit from kernel, get crude palm oil and kernel (send it to kernel recovery section). The kernel will not be broken.

5- The fifth step is vibrating screen machine:

This is to clean the small fibers in the oil, so that can get the cleaning oil. Not separating the kernel from fibers.

6- The sixth steps is Clarification tank:

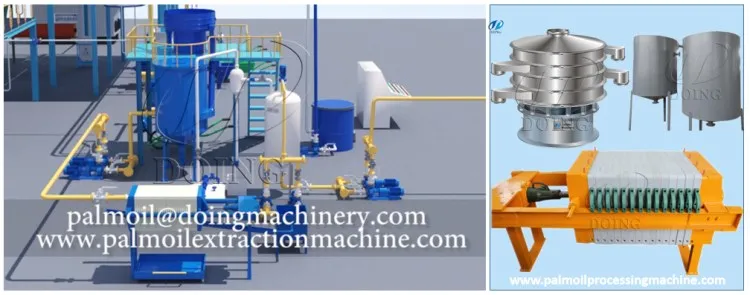

To using the free settling to let the sands and sludge go down the bottom of the tank. The oil will go out from upside of clarification tank, but there still some small impurities in the oil. Because during the harvest, there are plenty of soil and sands together with the FFB.

If without this step, you can't clean them from palm oil.

7- The seventh steps is plate filter:

Because there are still some small impurities in the CPO, it will use plate filter to remove the smallest impurities.

Crude palm oil clarification machine

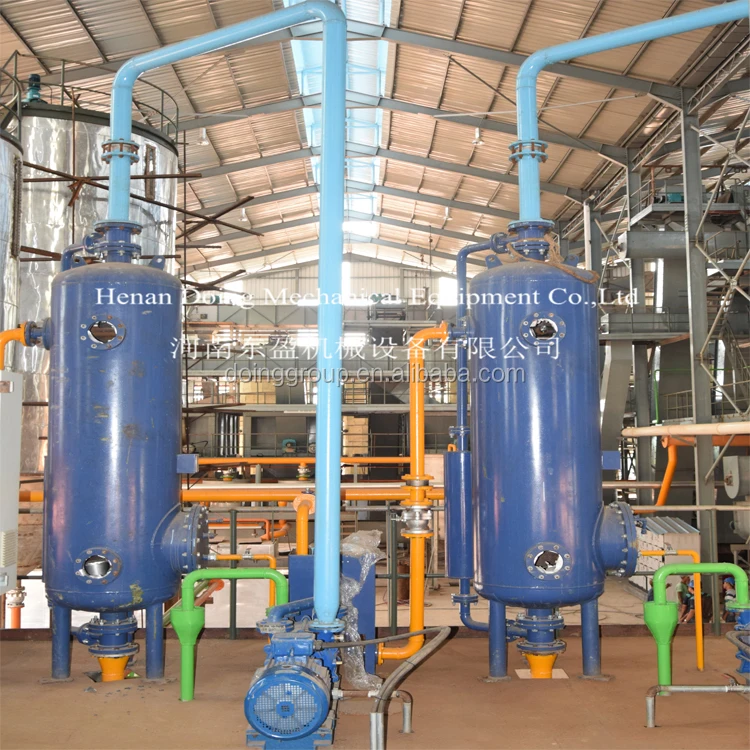

8- The eighth steps is final oil drying system:

To dry the water in the oil. Under the vacuum condition, the water will become steam with the temperature of 80-100 ℃, then will be taken out by vacuum pump. Because it is vacuum, the oil will not oxidation under the temperature of 100℃ or more temperature.

Final Products:

Package & Delivery:

Pre-sevice & After-service

Our engineer will provide the proposal designing in advance, and after ordering the machine, we will supply the layout, installation, commissioning, training for you.

Whether you have experience or not, we will aslo try our best to help you build the good palm oil plant, and make you do the succeful palm oil business in the near future.

Certifications:

If you are interested in palm oil business, pls contact us now.
