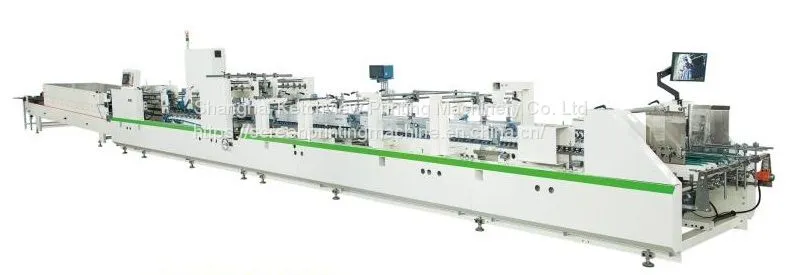

carton folder machine gluer

Brief Introduction
The machine adopts multi-groove belt transmission structure, low noise, stable operation and simple maintenance;
▪ The machine motor adopts inverter control, automatic speed regulation, stable and electricity saving;
▪ The operation adopts single lever adjustment, simple and convenient (with motor automatic adjustment);
▪ Multiple thickening belts are equipped with vibration motors to ensure continuous, accurate, automatic paper-out
▪ Segmented upper belt plate, combined with special design, can be telescopic and adjusted according to the needs of the product without the need of tensioning the belt;
▪ Special upper belt plate structure design, effectively protect the elastic drive, avoid damage caused by improper operation;
▪ Provide the bottom paste tube, the left and right sides of the paste tube are adjusted by the tooth rod, easy to operate, equipped with one cold glue gun (four control three guns).
▪ Touch screen and PLC control system, remote control operating system, equipped with photoelectric counting, quantitative counting, equipped with dynamic kicking device;
▪ Conveying board is made of special materials, which can adjust the pressure equipp with sponge belt to ensure perfect products;
▪ One hexagon wrench can adjust all adjusting accessories, easy to operate
▪ This machine can produce two fold, four fold hook bottom card and mounted packaging box;
▪ This machine is equipped with four/hexagonal box function

Technical Parameter

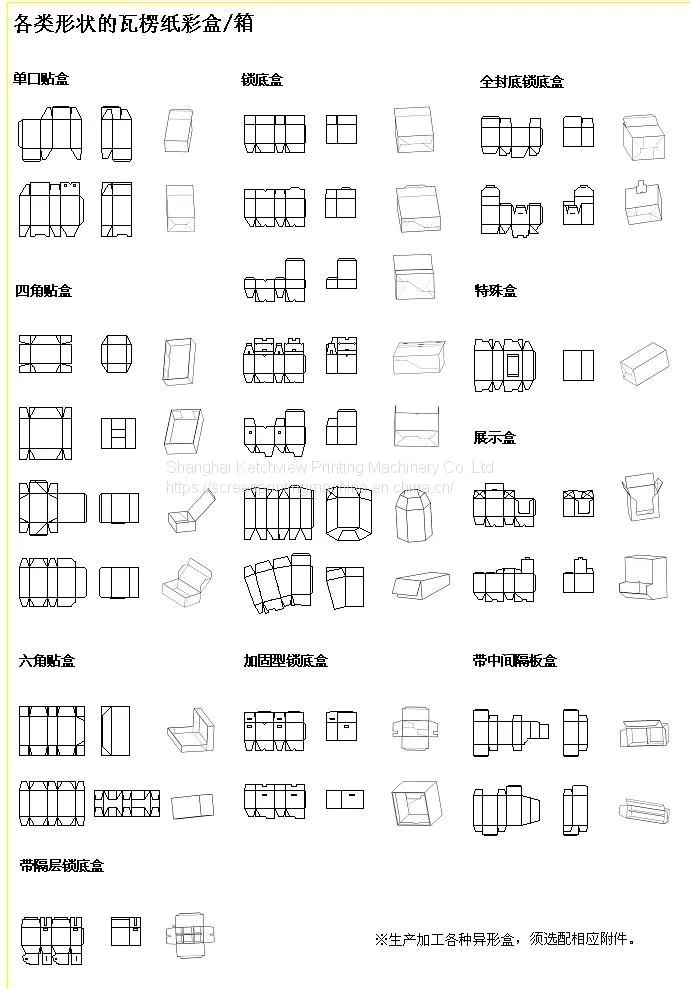

Application

Main component part

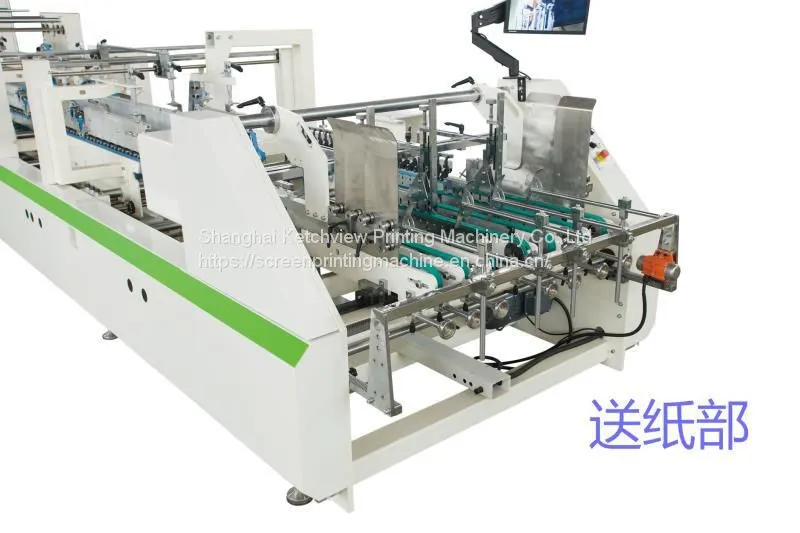

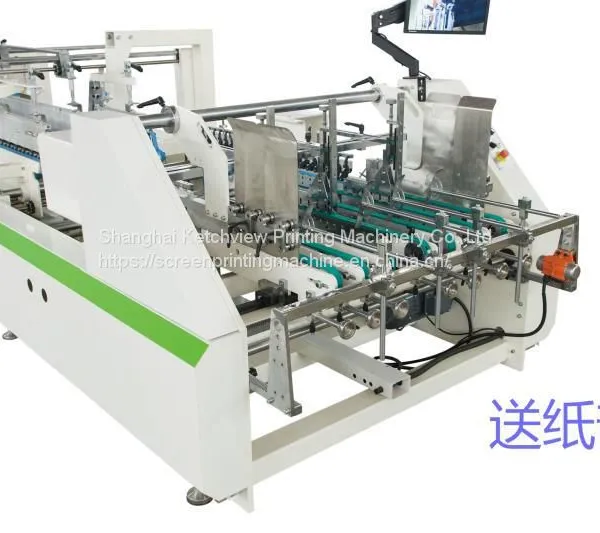

1. Feeder section

Feeder section has an independent motor drive system and keep synchronization with main machine.
7 pcs of 30mm feeding belt and 10mm metal plate to move laterally to set width.
The embossed roller guides the feeding belt. Two side apron match the products design.
Feeder section is equipped with three out-feeding blade to adjust according to the product sample.
Vibration device keep paper feeding quickly, easily, continuously and automatically.
Feeder section with 400mm height and brush roller anti-dust device ensure smooth paper feeding.
The operator can operate feeding switch in any area of machine.
Feeder belt can be equipped with sucking function(Option).
Independent monitor can inspect the performance at the tail of the machine.

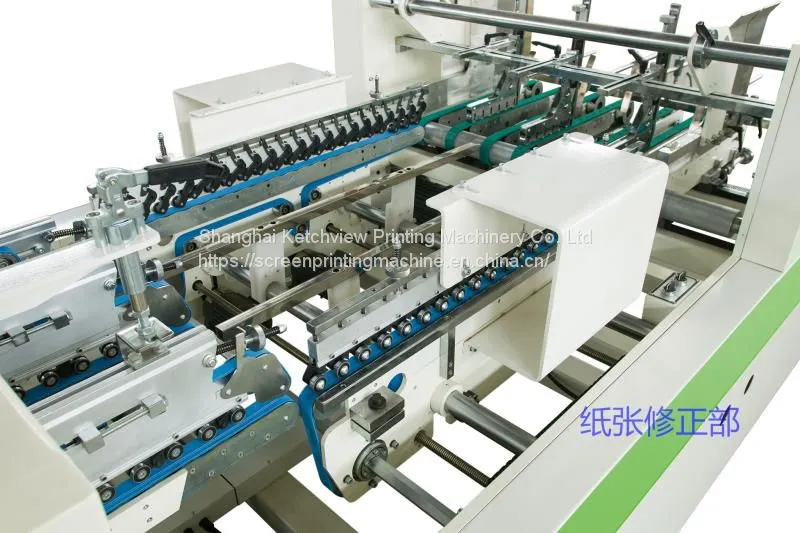

2. Side register unit

The paper from feeding unit can be rectified at side register unit to ensure accurate feeding.
The driven pressure can be adjusted up and down to fit with different thickness of board.

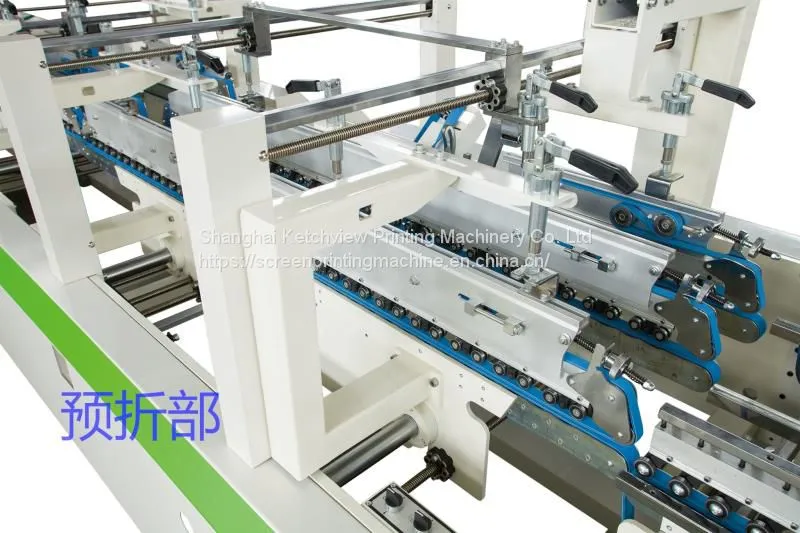

3. Pre-fold section

The special design can pre-fold the first folding line at 180 degrees and the third line at 165 degrees that can makes box easier to open.

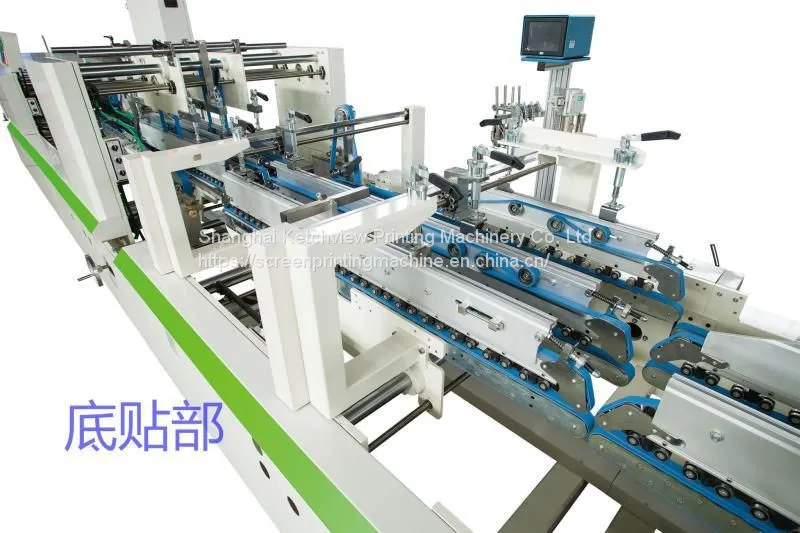

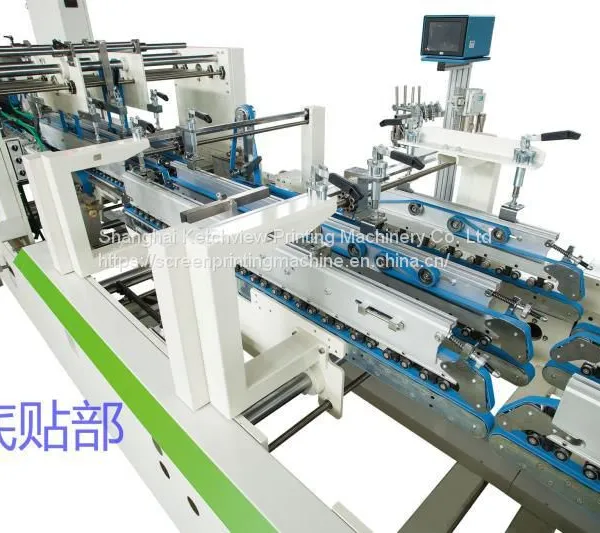

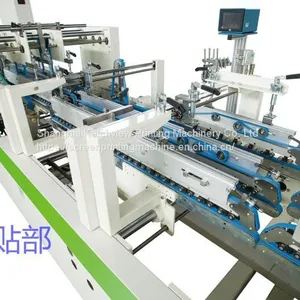

4. Bottom Lock

Lock-bottom folding with flexible design and rapid operation.
Segmented upper belt plate, combined with special design, can be telescopic and adjusted according to the needs of the product, no need to tensioning the belt.
▪ Lower paste tube with one left and right, large capacity, according to the actual situation; The amount of paste can be adjusted, stable and easy to maintain. The thickness of the paste wheel provided is 4mm, which can also be selected according to the special requirements of customers. The paste tube is made of solid and durable stainless steel.
▪ Bottom sticking is completed by four groups of hook bottom devices.
The bottom belt is 30MM, the upper belt is 20MM, the upper pressure belt plate moves up and down to adapt to different paperboard thickness.

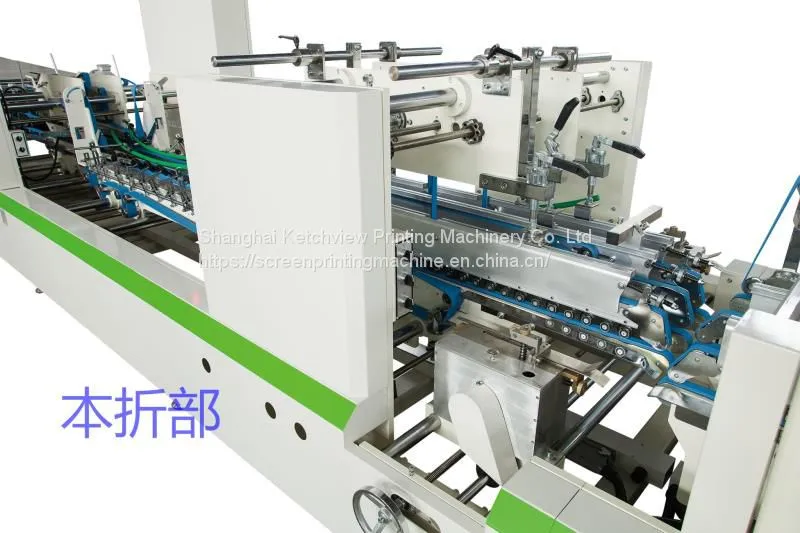

5. Folding Section

The second line is 180 degrees and the fourth line is 180 degrees.
The special design of the transmission fold belt speed can be adjusted individually to correct box running direction to keep it straight.

6. Trombone unit

Adopt photocell counting system with either "kicker" paper automatically or spray ink.
Jam inspection machine.
Up belt running with active transmission.

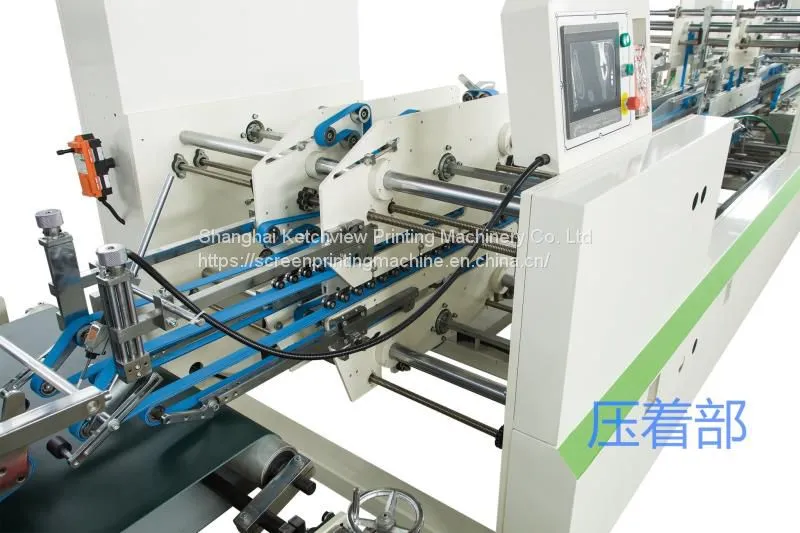

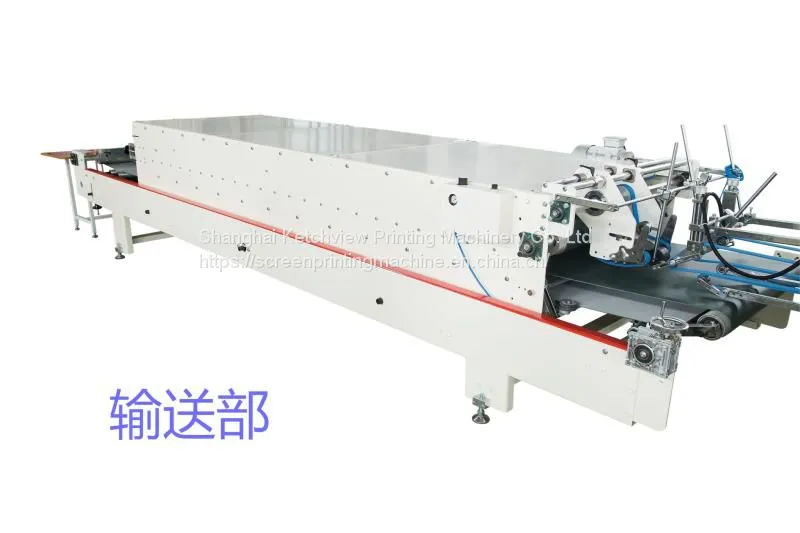

7. Transmission

Pneumatic pressure adjustment to keep uniform pressure.
Special extra sponge can be applied to press concave parts.
In auto-mode, the speed of press section keep synchrony with main machine to rise consistency of production.
