Automatic Blanking Machine
This machine is used for blanking the finished cardboard, plastic and leathers which processed by die cutting machine. With compact structure, high pressure and precision, it is easy for operation with reliable quality to lower the working intensity and labor cost. This machine is suitable for printing, packaging and plastic industry, high speed.
Compact structure, fine manufactured, high pressure and precision, easy operation and safe.
High grade material welded all in one with high strength.
Sealed cover to improve the safety of operation.
Moving platform with stable stripping head, the products are moving along with two axis, working area are controlled by PLC and position limiter.
High power servo motor no maintains needed, the movement are run by ball screw and straight line guide.
All direction technique, photoelectric device ensure the measuring precision, sealing design to prevent the dust.
Personnel in production operations, staffing stripping head is not in direct contact with the work site, No security risk.
Operating altitude is reasonably arranged, easy to use.

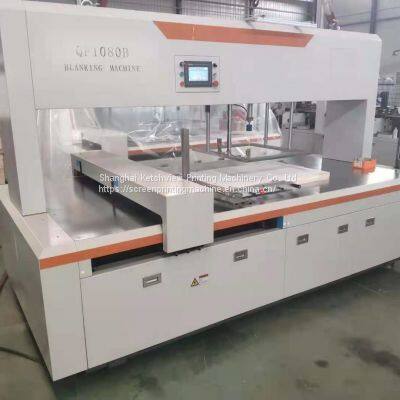

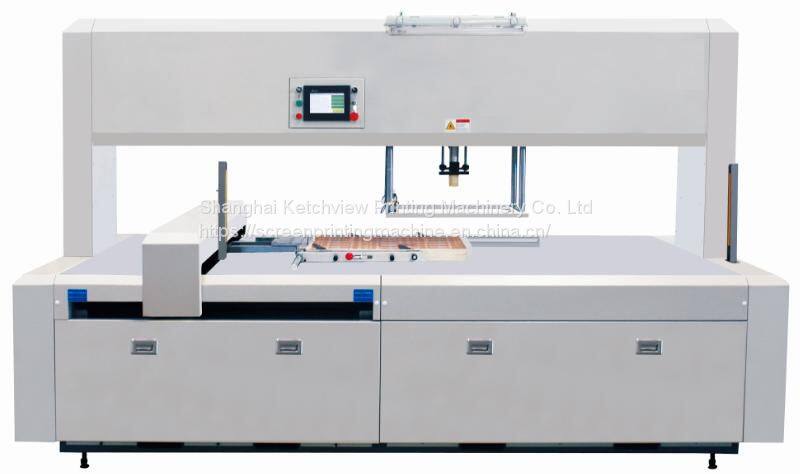

Single blanking head
| Model | QF-1080B |
| Hydraulic pressure | Max. Pressure 4000KG |
| Speed | Blanking Speed 500-1500 times/hour |
| Precision | Positioning: 0.05 mm |
| Repeating: 0.02 mm | |
| Max. Blanking Size | 520×380mm |
| Min.Stripping Size | 30×30mm |
| Max. Blanking Thickness | Paper 120g-1800g |
| Thickness 60mm-95mm (50-200 sheets) | |
| Operation System | PLC controlled |
| Max. Paper Size | 1080×780mm |
| Machine power | 3.2kw |
| Machine size | 3200×1900×2100mm(L×W×H) |

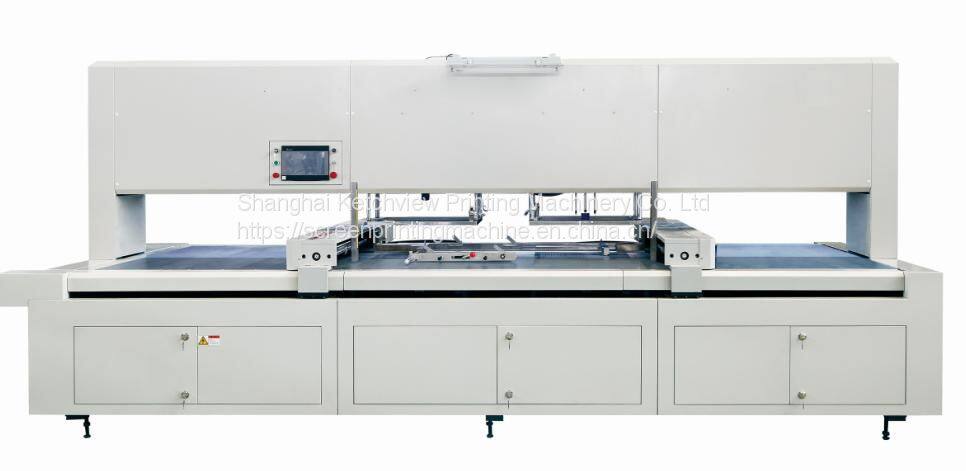

Double blanking head
| Model | QF-1080C |
| Hydraulic pressure | Max. Pressure 4000KG |
| Speed | Blanking Speed 500-1500 times/hour |
| Precision | Positioning: 0.05 mm |
| Repeating: 0.02 mm | |
| Max. Blanking Size | 520×380mm |
| Min.Stripping Size | 30×30mm |
| Max. Blanking Thickness | Paper 120g-1800g |
| Thickness 60mm-95mm (50-200 sheets) | |
| Operation System | PLC controlled |
| Max. Paper Size | 1080×780mm |
| Machine power | 4.2kw |
| Machine size | 4300×2000×2100mm(L×W×H) |

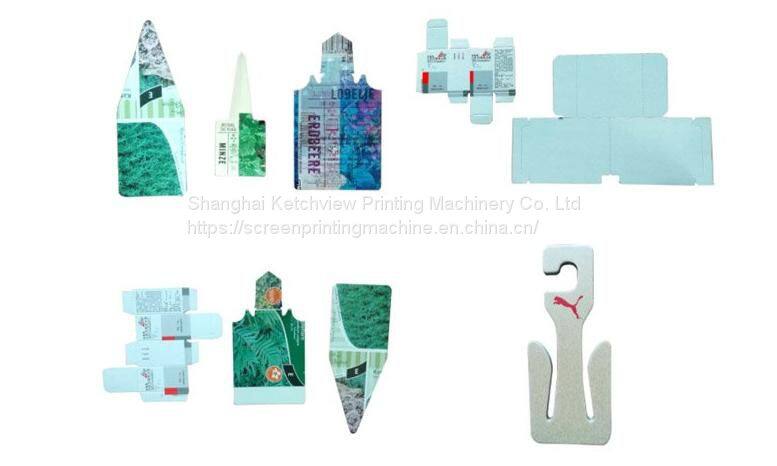

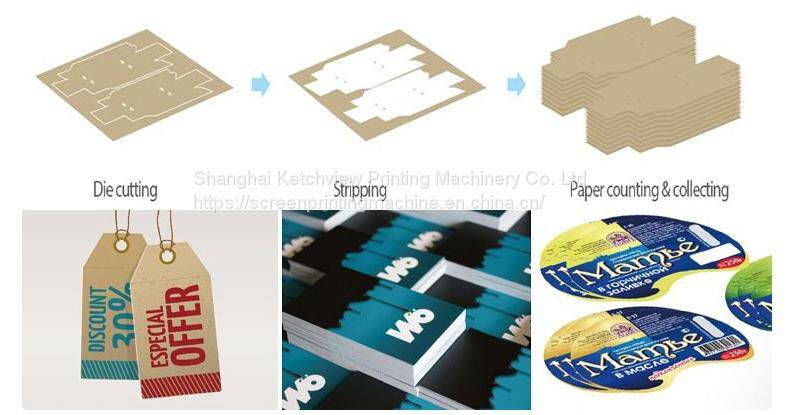

Application
