Screen Printing Machine and Foil Stamping Packaging Machine for Cardboard

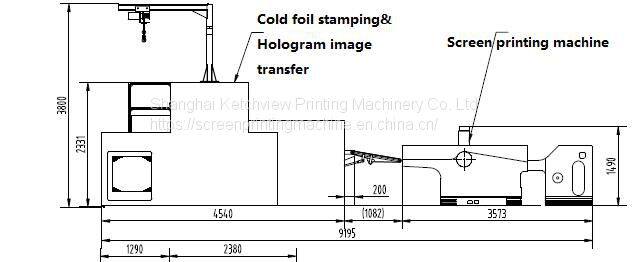

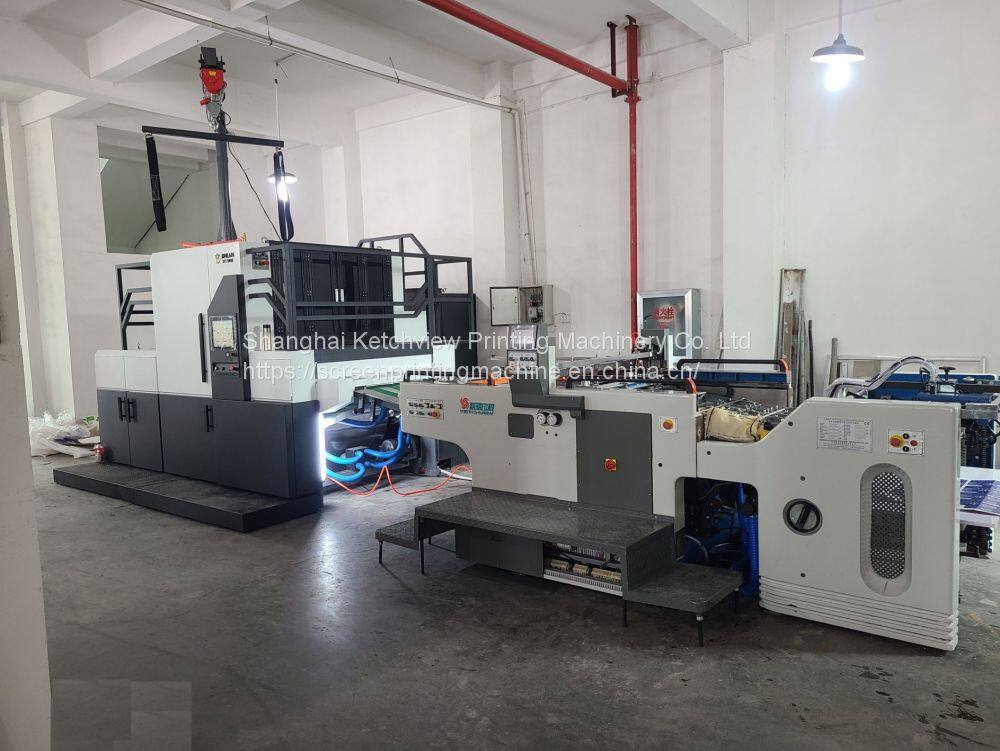

Automatic screen printing machine + Cold foil stamping& Hologram image transfer

Main Features
1. Driven by variable frequency brake motor, the whole machine is operated under the centralized control of Mitsubishi PLC. The WEINVIEW-touch screen operation interface displays all functional data, making printing operation more simple and convenient;
2. Adapt the Japan KEYENCE automatic optical fiber positioning detection, in case of, paperless and paper stuck, automatically rises and stops to reduce printing paper waste;
3. Full alarm system to prompt operators to carry out exact troubleshooting, making maintenance easy and fast;
4. The whole electrical components are imported from Schneider, Mitsubishi, Omron, which greatly improves the stability of the electrical system and reduces the maintenance and overhaul
5. The printing cylinder is made of stainless steel 316L, which is precise and durable. Flexible design of the elastic range of the paper teeth, convenient for the printing of different thickness of paper at any time;
6. The exit paper board can be turned 90 degrees, which is easy to clean screen. Screen can be adjusted up and down, front and back, right and left position
7. Centralized lubrication control system: main drive parts are lubricated automatically, which can effectively extend the service precision and machine life. Most of the bearings are used from NTN and NSK brand
8. All pneumatic components adopt Japanese SMC brand, air pump adopts Backer brand from Germany;
9. The squeegee and feeder table are all precisely controlled the Yaskawa frequency

Details

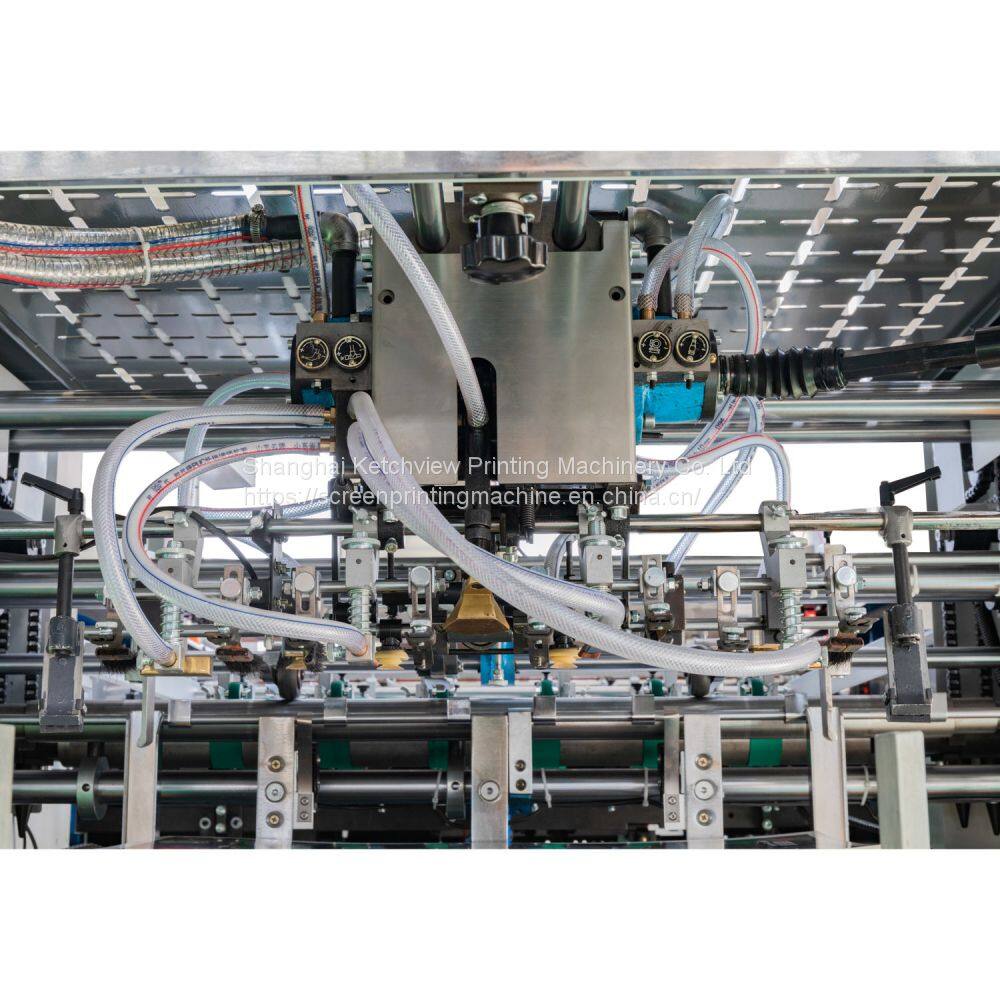

Four suction and four delivery feeder system, double layer suction cup to make it stable delivery even if the sheet is uneven.
Backer vacuum pump from German, large air volume, long life, stability and reliability

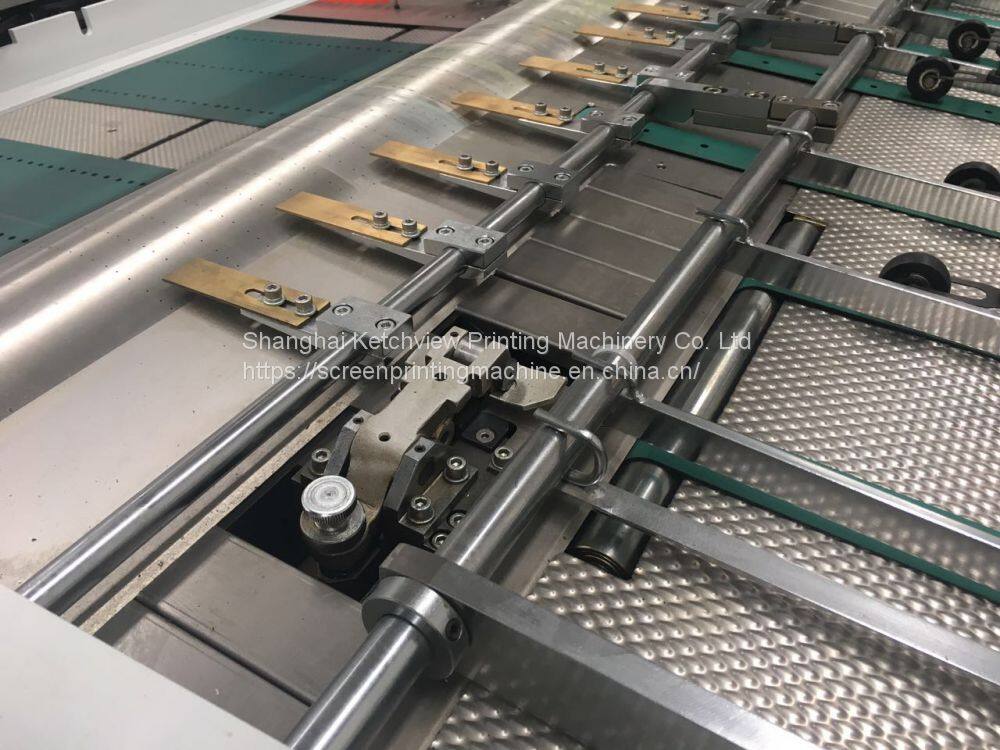

New designed pull and push lay

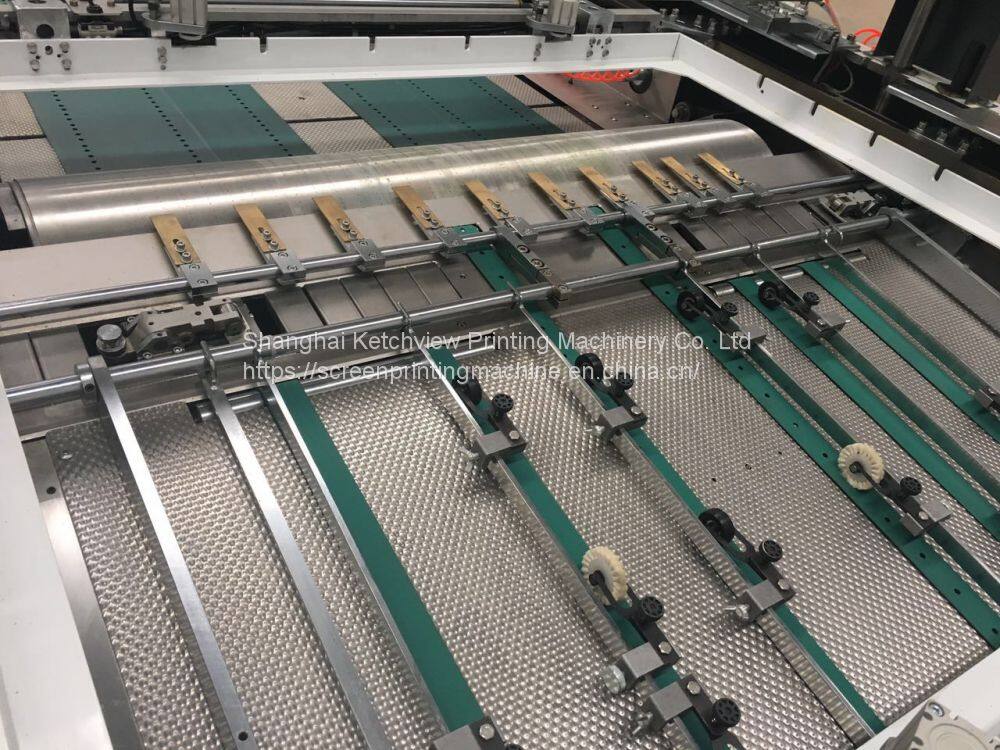

Imported stain steel delivery board, less static and friction. Rubber and the nylon wheel are suitable for the thin and thick paper adjustment

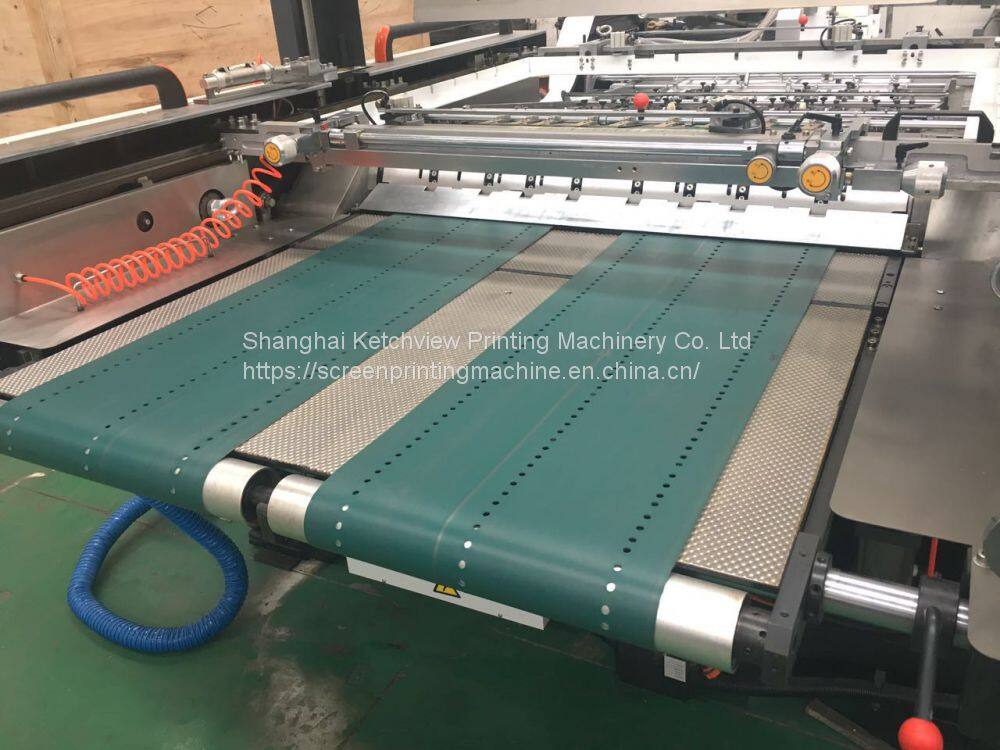

Double vacuum conveyor belt, suitable for different sheet size, avoid the damage to sheets

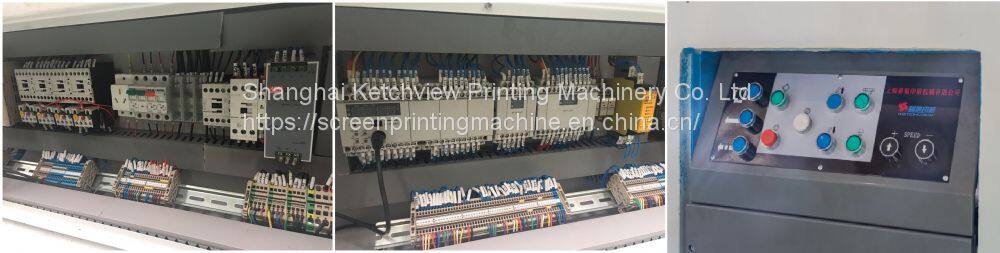

Panasonic PLC, German Muller electrical system, Yaskawa inverter, to ensure the reliability and stability of the system, the redesigned operation panel operation more convenient



Automatic Cold foil & Hologram image transfer
UVY-104AC transfer machine is our company's self-developed high-tech products, the unit can be used with printing machine, UV coating machine, screen printing machine and other equipments to achieve the laser transfer process and cold foil stamping process, which saves the cost and space. The equipment has won a number of technical awards, suitable for cigarette boxes, wine boxes, cosmetics boxes, gift boxes and other high-grade printing

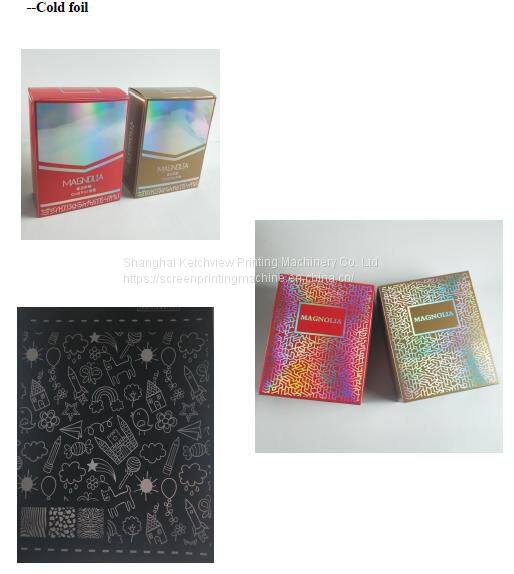

Cold foil stamping is a new technique to achieve metal effect, JLM machine was originated by our company in China in 2004 and with the first machine showed on Drupa Exhibition in 2008. Its principal is to coat adhesive onto a certain area of the substrate to be done with metal effect, then the aluminum foil film is pressed onto the substrate, thus the foil will be press on the substrate with adhesive ,after peeling off foil and paper, the aluminum foil to be transferred completely onto the paper substrate, to achieve the special metallic effect.

Hologram image transfer, which is also called HIT technology, is a new technique of achieving HOLOGRAM effect on the substrate, which was originated by our company in China in 2000 and with the first machine turned out in 2003. Its principal is to press hologram image film (hologram transferring film) on the printed paper (paper sheet) with UV coating, and thus leave the image on the UV coating (like signing fingerprint)

Technical Parameters
