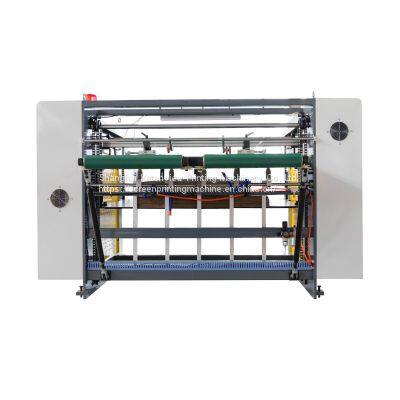

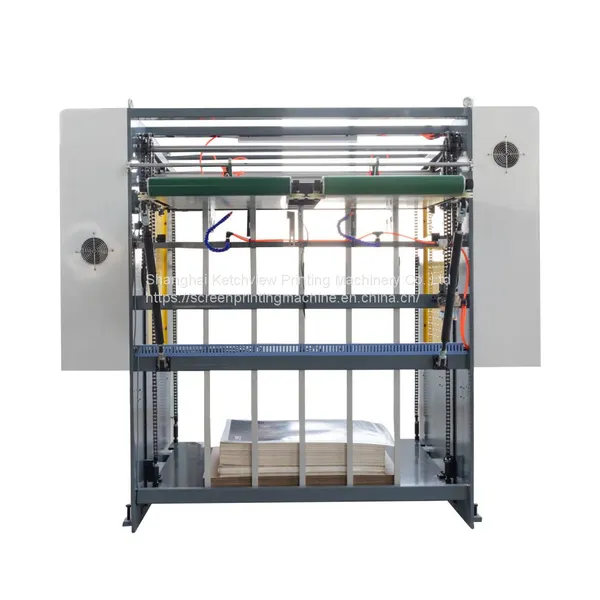

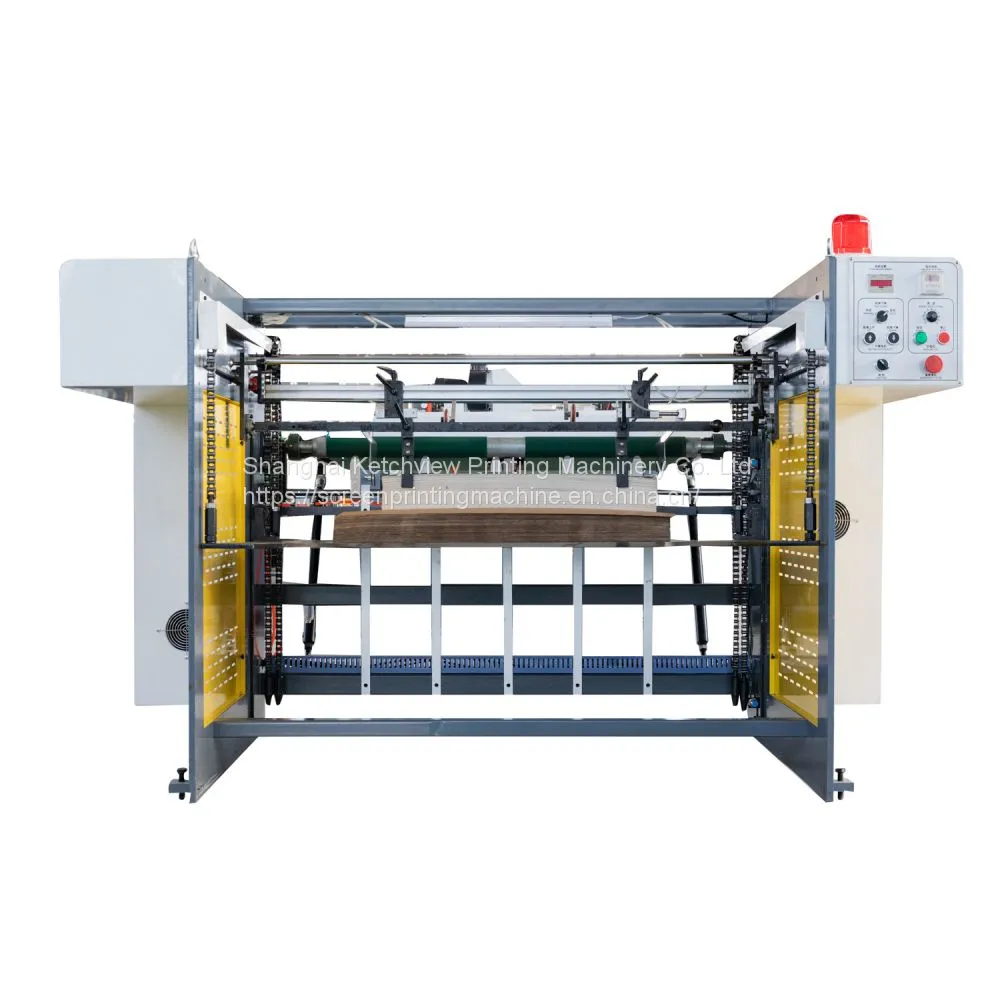

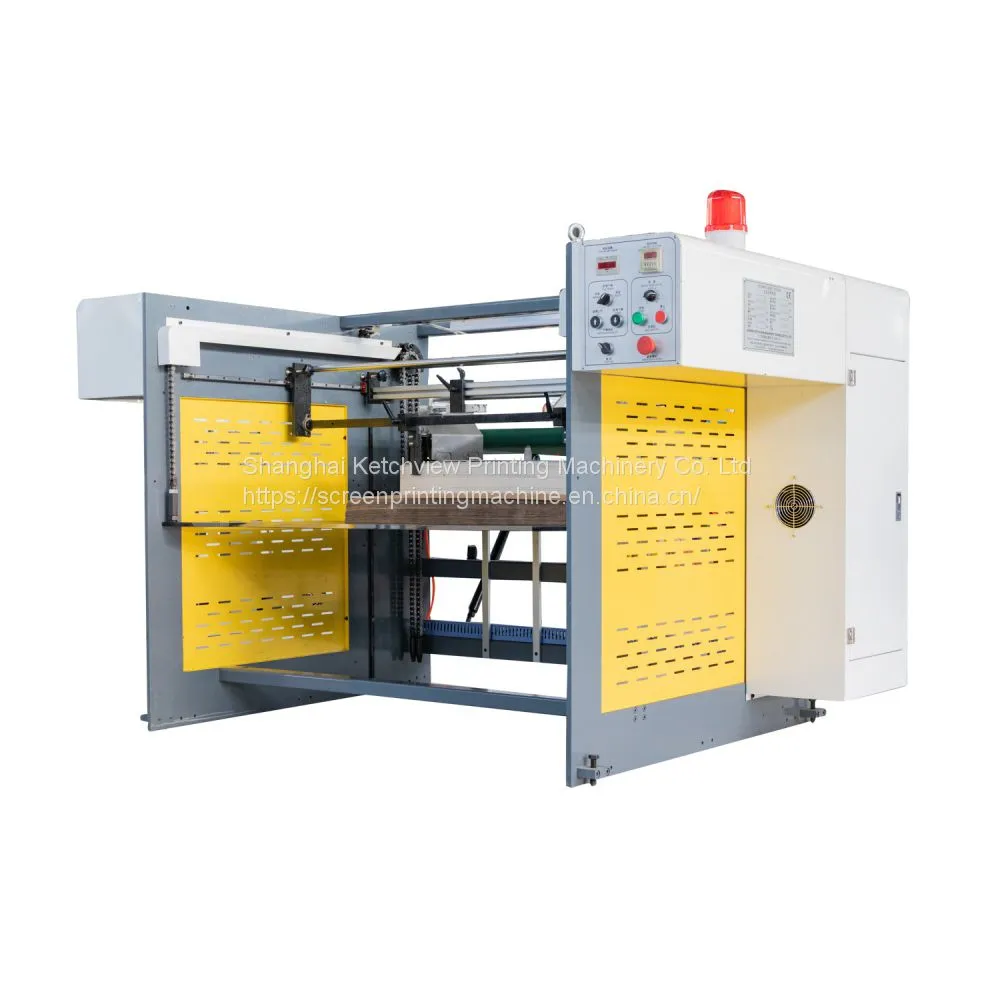

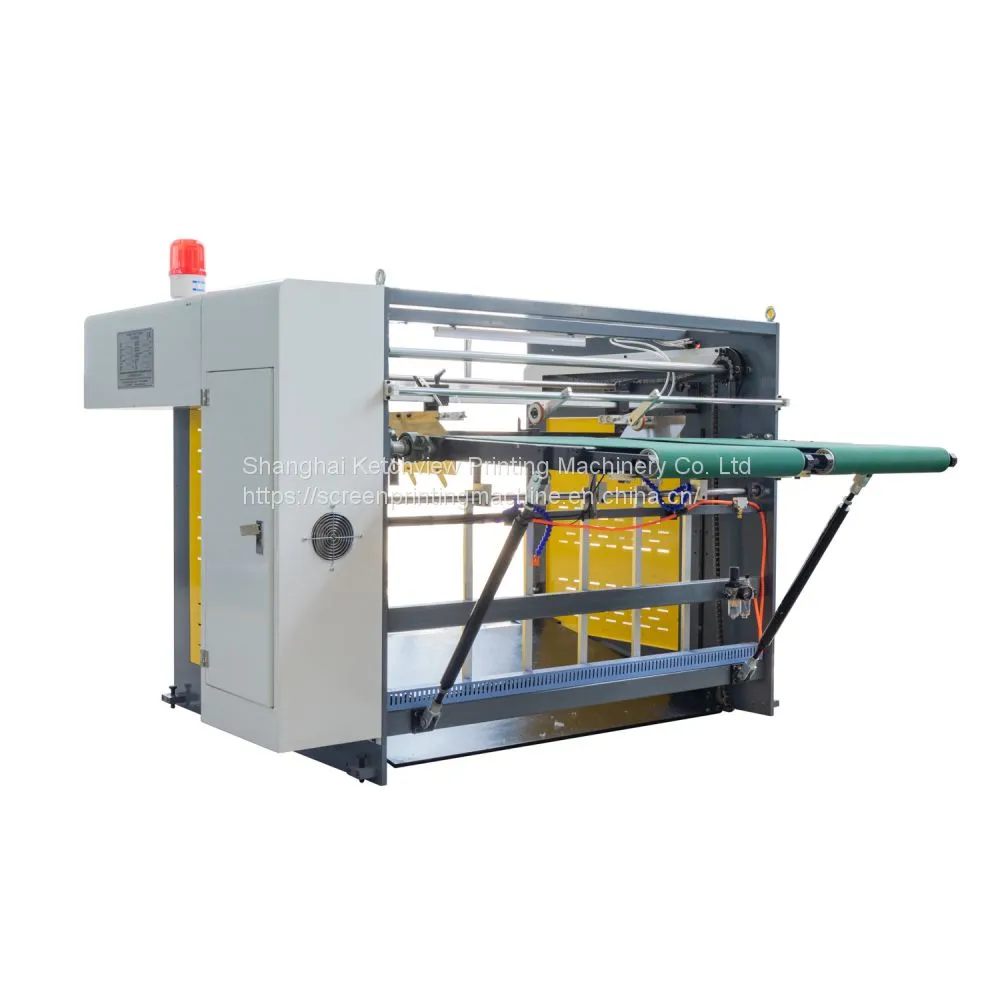

Automatic Paper Piling Machine

Automatic Paper Piling Machine thumbnail-1
Automatic Paper Piling Machine thumbnail-2
Automatic Paper Piling Machine thumbnail-3
Automatic Paper Piling Machine thumbnail-4
Automatic Paper Piling Machine thumbnail-5
Automatic Paper Piling Machine photo-1
Automatic Paper Piling Machine photo-2
Automatic Paper Piling Machine photo-3
Automatic Paper Piling Machine photo-4
Automatic Paper Piling Machine photo-5
US$ 3000 - 12000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Ketchview
Place of Origin:
China
Model Number:
GSZ800
Contact Supplier Request Quote Chat Now
Shanghai Ketchview Printing Machinery Co. Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Ketchview
Place of Origin China
Model Number GSZ800
Printing Type Screen Printing
Paper Type Art Paper, Cardboard, Coated Paper

Sheet stacker

GSZ sheet stacker is one of accessorial equipment to automatic cylinder screen printing machine, It is used to collect and pile paper which can improve you product efficiency.

Features
1. This machine is made up of input-bracket mechanism, pushing-paper mechanism, piling-board  up-down mechanism and electric control system.
2. Input-bracket mechanism contains conveyor belts and blowing device. The conveyor belts are  drove by motor, which speed is adjusted by transducer.
3. The blowing device is used to blow-up the paper to move a distance after leave from the belt. The paper will continue to go ahead by the air flow. Then the blowing is shut off, the paper drop      down to the piling-board.

4. The pushing mechanism is drove by pneumatic cylinder. The position of the cylinder is adjusted easily, so as to suit for different size papers.
5. Piling-board up-down mechanism is drove by four synchronous chains from electromagnetic motor. The board can be stopped accurately with a certain level.

6. Electric control system is controlled by PLC. The system is convenient and safety.


Technical Parameters

ModelGSZ900GSZ1050
Max paper size (mm)900X6501050X760
Min paper size (mm)400X300550X350
Max Pilling height (mm)600600
Total power (KW)11
Total weight (Kg)600700
Dimension (mm)2000x1900x12002400X2100X1200




Application



Product Tags: Sheet Stacking Machine , Sheet Stacker , Paper Stacker Machine , Paper Stacking Machine , Paper Piler , Sheet Piling Machine , Screen Printing Machine , Screen Printer , Heat Transfer Machine
