Mounted Rubber Slider Size:
OK-J01: Hardness:55±5 IRHD
Specifications : 31.75mm×25.4mm×6.35mm
OK-J02 Hardness:55±5 IRHD
Specifications : 76mm×25.4mm×6.35mm
OK-J03 Hardness:96±2 IRHD
Specifications :31.75mm×25.4mm×6.35mm
OK-J04 Hardness:96±2 IRHD
Specifications :76mm×25.4mm×6.35mm

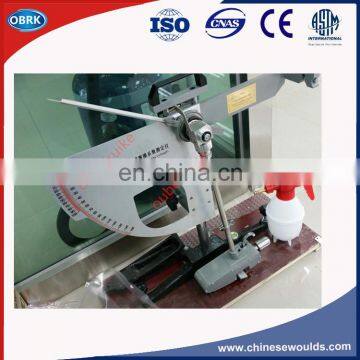

BM-III Pendulum Skid Tester For Coefficient of Friction
Feature:

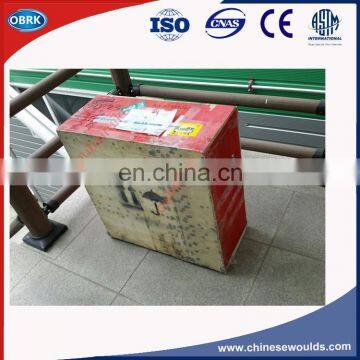

1.This is wooden case.
2.In stock, we can de delivery as soon as.
3.Acccessories: with one 76x25.4x6.35mm TRL(55) rubber silder,if you need others,please contact us.
It is a kind of determination of pavement, airport runway, marking paint and so on friction coefficient of the instrument.
1. Used to test skid resistance on existing road surfaces,
2. Consisting of a pendulum arm, rotating about a spindle attached to a vertical pillar and mounted on a trianglar base with adjustable feet.
This method provides a measure of the skid resistance properties of a surface either in the field or in the laboratory. This method measures the skid resistance of a small area of a surface (approximately 0.01 m2) and this should be considered when deciding its applicability to a pavement surface which may have variable surface characteristics, e. G. Block paving. This apparatus is used for the skid resistance measurement of asphalt pavement and concrete pavement, in order to evaluate the skid resistance of pavement in moist condition.
Technical Parameters:
|
Product name |
pendulum skid resistance tester |
|
Model |
BM-III |
|
Standard |
BS 812:114, EN 1097-8 |
|
Put the weight |
1500g |
|
Place the center of gravity |
410mm |
|
Rubber piece of pavement is static pressure |
22.2N |
|
The end from the place of the rubber feet |
508mm |
|
On the road surface sliding length |
126mm |
|
TRL(55) Mounted Rubber Slider Size |
76×25.4×6.35mm |
|
Weight |
27KG |
|
Packing size |
70X70X32 cm |
Set consist of:
|
Model Number |
Accessories Description |
|
OK-J05 |
Shower 1PC |
|
OK-J06 |
Brush 1PC |
|
OK-J07 |
Wrench 1 set |
|
OK-J08 |
Ruler PC |
|
OK-J09 |
Wooden case with handle 1 unit |
|
OK-J10 |
Tester Body |
|
Accessories you can choice: Accessories Description |
|
|
OK-J01 Mounted Rubber Slider |
Hardness:55±5 IRHD, size: 31.75×25.4×6.35mm |
|
OK-J02 Mounted Rubber Slider |
Hardness:55±5 IRHD, size: 76×25.4×6.35mm |
|
OK-J03 Mounted Rubber Slider |
Hardness:96±2 IRHD size:31.75×25.4×6.35mm |
|
OK-J04 Mounted Rubber Slider |
Hardness:96±2 IRHD,size:76×25.4×6.35mm |
Rubber Sliders
my korea client given feedback Photos
Oubeiruike supply verious type of products,Test Molds, Concrete Mixer,Asphalt Tester,and Soil Road Lab Tester .... We assure high quality to you.
1. Installation and training:
a. If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service:
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Frequently Asked Question:
1.Are you trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of concrete mould and others products.
2. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than ten years without any problem. We can provide one years free quality assurance.
3. How to visit your company?
A) Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
B) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick you up.
We be 24 hours online,if you have any questions,kindly contact us freely.
