Product Description

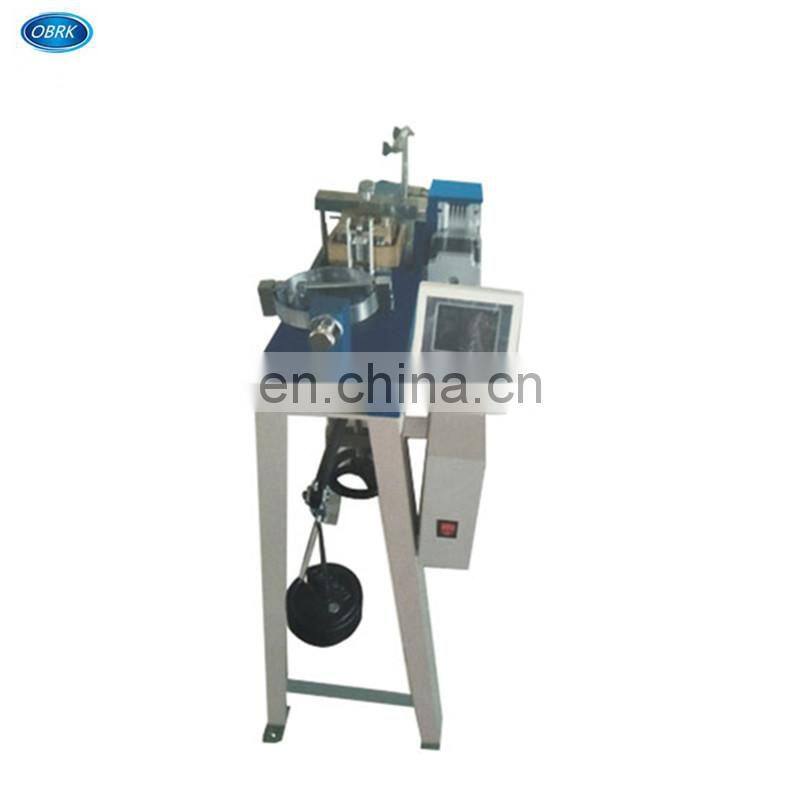

Soil Strength Direct Shear Test Apparatus/Instruments/Machine
To determine the shearing strength of the soil using the direct shear apparatus.
In many engineering problems such as design of foundation, retaining walls, slab bridges, pipes, sheet piling, the value of the angle of internal friction and cohesion of the soil involved are required for the design. Direct shear test is used to predict these parameters quickly. The laboratory
report cover the laboratory procedures for determining these values for cohesionless soils. Strain controlled direct shear machine consists of shear box, soil container, loading unit, proving ring, dial gauge to measure shear eformation and volume changes. A two piece square shear box is one type of soil container used.A proving ring is used to indicate the shear load taken by the soil initiated in the shearing plane.
Technical parameters:
| Model | ZJ-1 |
|
 Vertical load  |
 50KPa, 100KPa , 200KPa , 300KPa , 400KPa  |
|
 Corresponding weight  |
 1.275,2.55,5.1,7.65,10.2kgs  |
|
 Lever ratio  |
 1:12  |
|
 Level shear force  |
 Max. 1.2KN  |
|
 Sample area(cm2 )  |
 30, height 2 CM  |
|
 Shear rate(mm/min)  |
 0.02, 0.8, 2.4  |
|
 Power source  |
 220V±10%, 50Hz  |
|
 Dimension(mm)  |
830 x 530 x 1260 (LxWxH) |
| Weight: 40 Kg | 40 Kg |

Installation and training
1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Service
1.One year guarantee for whole machine.
2.24 hours technical support by email or calling
3.If there is any problem found of the machine, we will repair it for free in one year.
We can delivery by sea at any port in China.
We also can ship by air via express company (door to door), it is quick and safe.
We can ship By EMS,TNT, DHL and others (door to door).
We supply various Concrete Test Apparatus, Cement Test Apparatus, Soil/Road Test Apparatus,Asphalt Test Apparatus, Concrete Test Cube Mould and other Lab Apparatus.
If you need any Apparatus, please contact us.
