The Regeneration System:

When the oil in a transformer reaches a stage (due to aging) where purification and degassing is no longer efficient, the oil must be changed or regenerated. Regeneration is the complete treatment of oil back to a “like new condition”.

Why is Regeneration necessary?
As oil ages in a transformer it oxidizes and begins to break down. Some of the by-products of this degradation are:
   Acids
   Aldehydes
   Peroxides

Oil purification forms an important part of regular preventative maintenance. In the process of purification, water, dirt and gasses are removed from the Oil

Application:

EOR series engine oil purifier is designed for recycling kinds of engine oil used in ships, cars and other vehicles. It not only can remove the carbon particles, deep oxides, etc., but also can filter off the harmful matters such as colloid, bitumen. After treated by the machines, the oil color looks like the new and the quality indexes are improved also, so as to resume the performance of engine oil, keep the engine being lubricated, guarantee lubricating system of engine to work properly and prolong service life of engine oil.

What oil can EOR process?

The equipment is used for waste engine oil, waste lubricating oil, waste diesel oil, waste transformer oil , waste gas, waste cooking oil, and other renewable processing.

The quaility of the processed oil can be mostly close to the new standard,  and it can be used as base oilor new oil.

The advanced technology:

The equipment automation conditions: the equipment adopts PLC automatic programming, intelligent control and manually operation combining.

Due to the different oil chemical composition, molecular structure of organic matter, contains impurities such as technical parameters are different.

So for the process parameters in the process of production (such as oil distillation temperature, condensation temperature, pressure, steam flow rate,

 he oil flow rate change) for different products of different process parameters control.

Therefore, we use the manual adjustment, then automatically control operation.Start operating mode we adopted 10-inch touch screens.

Due to adopt PLC automatic intelligent control system, which guarantees the oil of the coarse filtration, distillation, absorption, separation, parsing, the stability of the fine filtration process.

Satisfy the design production capacity of equipment, improve the quality of the products.

Reach the requirement of environmental protection:

This equipment to the design requirements of environmental protection:

the route of this equipment is liquid route and vapor state route, liquid route by the coarse filtration, distillation, vacuum parsing, overvoltage fine filtration residue after processing,

or for other purposes are collected respectively.

Steam line molecular distillation tower, deputy tower distillation range, then through cooling, separation, then through the absorption tower.

By absorbing the sewage discharge of gas and absorption after all meet the national discharge standards and emissions,

and accord with national standard for environmental requirements set by the environmental protection industry.

The characteristics of the equipment:

(1), the main structure of the equipment design is a modular, absorption of industrial oil , distillation, heat transfer, separation and filtration equipment adopts carbon steel Q235 - B materials,

which greatly reduce the cost of the equipment.For the food industry of oil absorption, distillation, heat transfer, separation, filtration, sterilization equipment all adopt full stainless steel material,

ensuring the quality of the refined oil products, meet the standards of the state of edible oil.

(2), the absorption , distillation, heat transfer, separation and filtration of the equipment all adopts vertical installation, the rest of the step-down, oil storage equipment pump adopts horizontal installation, ensuring the equipment structure compact flash, narrow the volume of overall equipment combination, satisfy the equipment's overall size in 1800 * 1500 * 1500mm, 2200 x 1800 x 2000 mm four specifications, .

The total weight less than 2000kg. Equipment chassis consists of the frame structure and the all-direction wheel, is advantageous to the operating site and makes it move easily

(3), the unit design is configured with automatic control box, control box installed the touch screen, standard electrical control components and automatic control of all components,

ensuring the convenience of the equipment operation, installation, maintenance

(4), the equipment of the component connection is using chemical fluid pipe connection, can ensure the stability of the fluid piping and durable.

(5) the cylinder of the equipment, various pipe fittings, flanges, valves are designed in GB150-1998 steel container production standard and configuration,

so that to ensure the standardization and  rationalization of equipment,

and ensure the equipment of aesthetically pleasing, accord with standard of the international first-class equipment.

(6), the equipment surface and coating antirust paint coating the car in the pipeline with ivory anti-corrosive paint

(except eating stainless steel distillation machine equipment).

Ensure the glossiness, and at the same time to ensure the durability of the equipment.

Technical parameter:

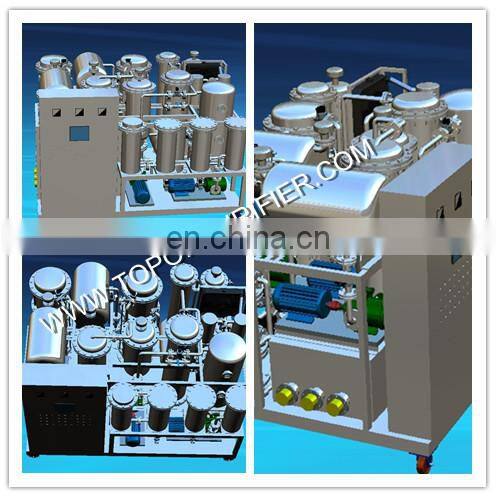

More pictures for our products

Oil Sample treated by our machine EOR-20

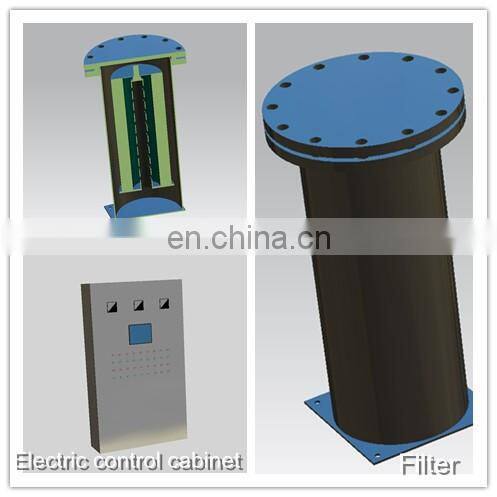

Main accessories for our machine EOR

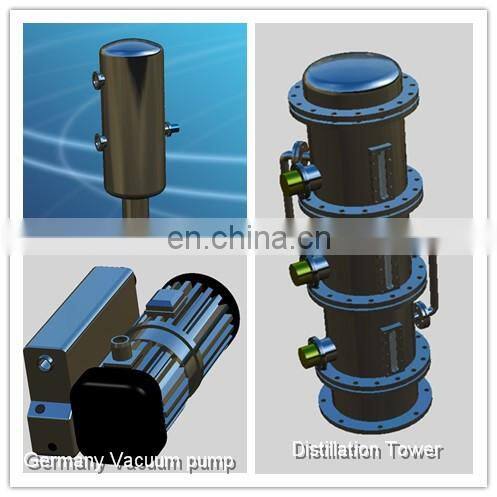

Germany LEYBOLD Vacuum Pump+Vacuum System + 3 stages of Distillation Tower

Siemens PLC+ stainless steel filter with backflashing

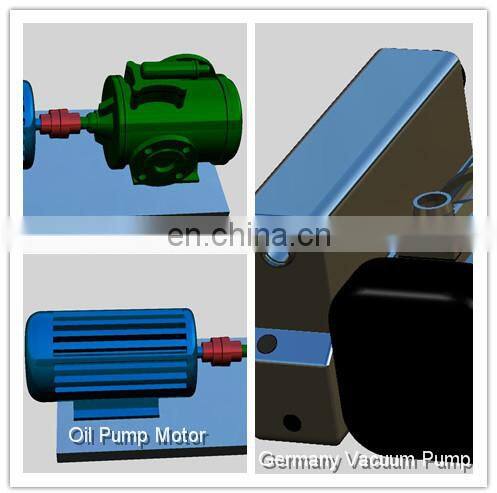

Anti-high temperature oil pump+ best motor

Raw material on stock
