Small Waste Cooking Oil to Biodiesel Machine/ Oil Processing Equipment

Application
COP oil filtration machine is special for filtering waste cooking oil, dirty vegetable oil, trench oil, swill oil and animal oil etc. It effectively and completely removes particles, odor, water, acid and alcohol etc. from waste oil. The processed oil is clean, limpid with good smell. COP is a good purification machine for fry food factory, oil restaurant, cooking oil factory, vegetable oil factory and waste oil collecting store. According to the processed oil usages, we can choose different machine body. For edible usage, we suggest choosing stainless steel body; for industrial, we suggest choosing steel carbon body. According to different working places, we recommend skid type and mobile type (trailer with pneumatic tyre)

Features

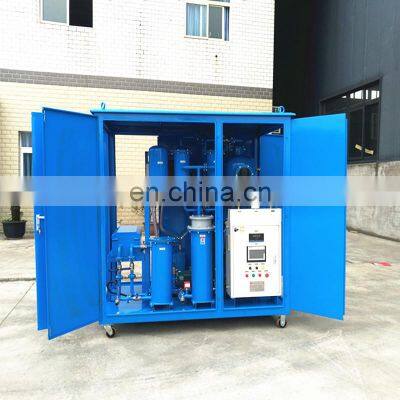

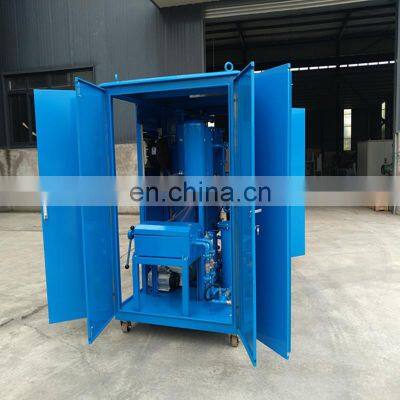

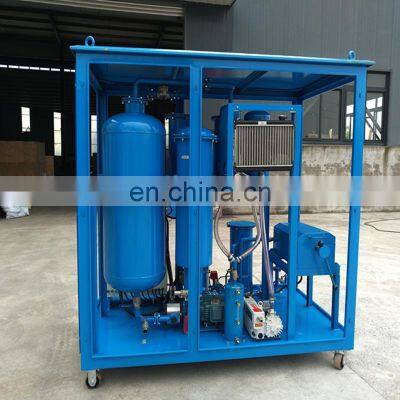

1.This plant is composed of two parts. One is the press filter, and the other one is the vacuum oil purifier system. The press filter can remove big and tiny impurity; The precision of purification can reach 1 Micro. The Vacuum system is equipped with three grades filter (primary filter, mass water separator, and fine filer). All process works under the vacuum condition.

2.For primary filter, which is made of the stainless steel, is anti-rust and anti-corrupt. It mainly removes residual impurities which escape from the press filter, making sure the oil not have any impurity when it goes into water separator and vacuum separator.

3. Water separator, which is equipped with special filter, mainly removes mass water from the oil, because usually waste cooking oil always contains much water, so we need to remove the mass from the oil. After the water separator, the oil just contains the tiny water and soluble water.

4.After the process of the water separator, the oil will goes into the vacuum separator, which adopts three-dimensional duplex evaporation and film evaporation. For protecting the oil nature, it is better that the oil temperature is lower than 80 C, because our machine works under the vacuum and low pressure condition, so it does not need to heat the oil to 100 ℃. Usually it just needs to heat the oil to 45 ℃, and then it can completely and effectively remove the tiny water, soluble water, acid, alcohol and other volatility liquid and so on.

5.The fine filter, which is equipped with the stainless steel filter, its purification hole is less then 1 Micro, which can make sure the oil is completely clear and without any impurity.

1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier

8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device
