2021 Year End Promotion TYS-1 304 Stainless Steel Used Cooking Peanut Oil Filtration Machine

2021 Year End Promotion TYS-1 304 Stainless Steel Used Cooking Peanut Oil Filtration Machine thumbnail-1
2021 Year End Promotion TYS-1 304 Stainless Steel Used Cooking Peanut Oil Filtration Machine thumbnail-2
2021 Year End Promotion TYS-1 304 Stainless Steel Used Cooking Peanut Oil Filtration Machine thumbnail-3
2021 Year End Promotion TYS-1 304 Stainless Steel Used Cooking Peanut Oil Filtration Machine thumbnail-4
2021 Year End Promotion TYS-1 304 Stainless Steel Used Cooking Peanut Oil Filtration Machine thumbnail-5
2021 Year End Promotion TYS-1 304 Stainless Steel Used Cooking Peanut Oil Filtration Machine photo-1
2021 Year End Promotion TYS-1 304 Stainless Steel Used Cooking Peanut Oil Filtration Machine photo-2
2021 Year End Promotion TYS-1 304 Stainless Steel Used Cooking Peanut Oil Filtration Machine photo-3
2021 Year End Promotion TYS-1 304 Stainless Steel Used Cooking Peanut Oil Filtration Machine photo-4
2021 Year End Promotion TYS-1 304 Stainless Steel Used Cooking Peanut Oil Filtration Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Chongqing Top Oil Purifier Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

TYS Series Food Grade Oil Purification and Decolorization Machine

Parameters
Unit
TYS-1
TYS-2
TYS-3
TYS-5
TYS-10
TYS-15
TYS-20
Treatment Capacity
Ton/day(8 hr))
1
2
3
5
10
15
20
Power Supply
380V/50HZ/3Phase (Customizable)
Working Noise
dB(A)
≤65
Working Vacuum
MPa
-0.06～-0.095
Working Pressure
MPa
≤0.5
Working Temperature
℃
30～90
Inlet (outlet) caliber
mm
Ф25
Ф25
Ф25
Ф32
Ф42
Ф42
Ф50
Weight
kg
1500
2000
2500
3000
3500
4000
4500
Size
Length
mm
1800
1850
1900
1950
2000
2200
2300
Width
mm
1300
1350
1400
1450
1500
1600
1600
Height
mm
2300
2300
2300
2400
2500
2700
2700
After treated
Color
L
≤ 1-3
Impurity
μm
≤1(Customizable)
Water
ppm
≤100
Demulsification
min
≤15(GB/F 7305)
Cleanliness
grade
≤6(NAS1638)

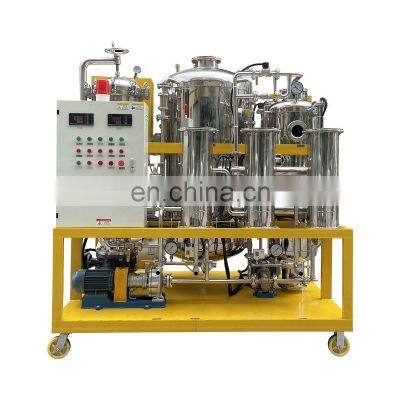

TYS series Food Grade Oil Purification and Decoloration Machine is specially designed to clean new and used cooking oil, coconut oil, dirty vegetable oil, trench oil, swill oil and animal oil, edible rapeseed oil, tea oil, peanut oil, grease etc., It can effectively and completely remove water, particles, acid and alcohol etc. Furthermore, it can also remove odor and recover the oil color from black to original yellow. This is combined with our special brand food grade earth, which is pure natural and has high efficiency. The treated oil is clean, limpidity, and good smell.

TYS is a good purification machine for biodiesel production factory, soap factory, Fry food factory, oil restaurant, cooking oil factory, vegetable oil factory, and waste oil collecting store etc., According to the needs, the material of the machine can be made in carbon steel or stainless steel.

Details Image
Related Products

1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier

8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device

Packing & Delivery
MOQ
1 Set
Trade Terms
EXW, FOB, CIF, CFR
Payment Terms
T/T, L/C
Port of Loading
Any Port of China
Packing Method
Internaional Standard Wooden Case
Transportation Method
By Sea, By Land, By Air, By Express
Supply Capability
100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.

Chongqing TOP Oil Purifier Co., Ltd

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.
