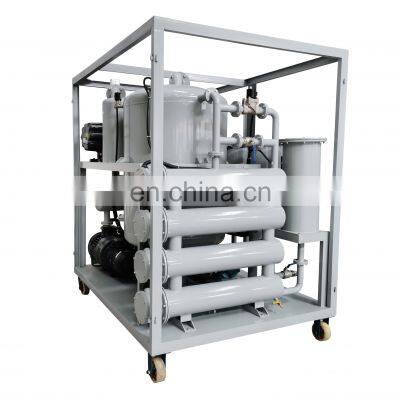

ZYD-I-Ex-100 Anti-Explosion Protection Transformer Oil filtration system
- 1000 per Month
- T/T Credit Card
- ZYD-I-W-50 Closed Type Double Stage Discolored Transformer Oil purification machine
- Mobile Waste Transformer Lubricating Oil Filtration System
- Enclosed Dielectric Oil Purification/Insulation Oil purifier machine with Trailer ZYD-I-M-30
- Double Stage Vacuum Insulation Oil filtration machine,Transformer Oil Regeneration and Decolorization System
- 30LPM Multi-functional Degenerative Transformer Oil filtration system/Oil decoloration System
- 30LPM Multi-functional Degenerative Transformer Oil Discolored Machine/Oil purification machine
Product Description
Application
regenerate insulating oils in energized or de-energized transformers. It not only provides regular oil purification including
degassing, drying and particulate removal but also removes acidity, sludge, other soluble oil decay products, and improves color.For special application, the system also can be mounted on a leak proof base or be installed and operated on a trailer.
Feature
2.Unique vacuum dehydration, degassification and regeneration system, adopt stereo-evaporation technology. Duplex 3D
stereo-evaporation, eliminating the liquid water quickly
3. UK g technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
4. Advanced infrared liquid-level automatic control system to accomplish fully automatic control.
5. Can be applied for vacuum oiling and drying power transmission equipment.
6. Special additives for depolarization can recover oil color of aged transformer oil to new.
Item | Unit | ZYD-I-Ex-30 | ZYD-I-Ex-50 | ZYD-I-Ex-100 | ZYD-I-Ex-150 | ZYD-I-Ex-200 | ZYD-I-Ex-250 | ZYD-I-Ex-300 | ||||||||
Flow rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | ||||||||
Vacuum degree | MPa | -0.08~-0.099 | ||||||||||||||
Working pressure | MPa | ≤ 0.3 | ||||||||||||||
Temperature range | ℃ | 20 ~ 80 | ||||||||||||||
Normal working hour | H | ≥ 4000 | ||||||||||||||
Continuous working | H | 150 | ||||||||||||||
Power supply | 380V/60HZ/3Ph 5 wire(as customer’s requirement) | |||||||||||||||
Working noise | dB(A) | 75 | 75 | 75 | 75 | 80 | 80 | 80 | ||||||||
Heating power | KW | 30 | 30 | 45 | 60 | 75 | 90 | 120 | ||||||||
Total power | KW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 | ||||||||
Oil outlet/inlet | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | ||||||||
Weight | KG | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 | ||||||||
Size | L | 1050 | 1100 | 1200 | 1450 | 1600 | 1800 | 1900 | ||||||||
W | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 | |||||||||
H | 1350 | 1400 | 1500 | 1650 | 1800 | 1900 | 1900 | |||||||||
Index after purifying | Breakdown voltage | kV | ≥75 | |||||||||||||
Moisture content | PPM | ≤3 | ||||||||||||||
Gas content | % | 0.1 | ||||||||||||||
Impurity size | μm | ≤1 (customizable) | ||||||||||||||
Value β | % | 98 |
Chongqing TOP Oil Purifier Co.,Ltd, established in 2 0 1 2 , is a professional manufacturer engaged in the research, development, production, sale and service of oil purifiers and various related testers.We are located in Chongqing China - a southwest electromechanical manufacturing center as well as national municipality, which is one of the most well-known oil purifier manufacturers in southwest China. Dedicated to strict quality control and thoughtful customer service, our experienced staff are always available to discuss your requirements and ensure full customer satisfaction. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and long service life. In addition, Our company has won C E,S G S certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Australia, Canada, USA, South Africa , Asia etc.. Our company holds the managerial idea that “ Honest treatment,Sincere Communication,Reliable Quality and Service Commitment”, and tries its best to do well at any aspect from each part, each point of procedure of manufacturing to final inspection, packing and shipment. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device
MOQ | 1 Set |
Trade Terms | EXW, FOB, CIF, CFR |
Payment Terms | T/T, L/C |
Port of Loading | Any Port of China |
Packing Method | Internaional Standard Wooden Case |
Transportation Method | By Sea, By Land, By Air, By Express |
Supply Capability | 100 Sets/Month |
maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
