Easy Movable Vacuum Waste Oil Recycling Equipment TY Series

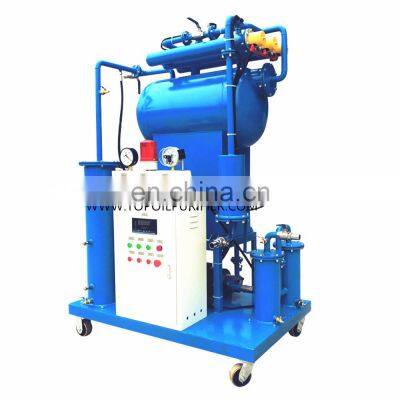

Easy Movable Vacuum Waste Oil Recycling Equipment TY Series photo-1
Easy Movable Vacuum Waste Oil Recycling Equipment TY Series photo-2

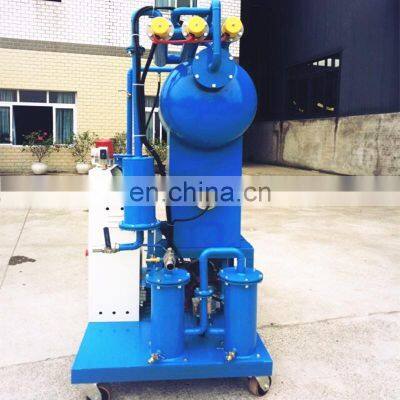

Easy Movable Vacuum Waste Oil Recycling Equipment TY Series photo-3
Easy Movable Vacuum Waste Oil Recycling Equipment TY Series photo-4

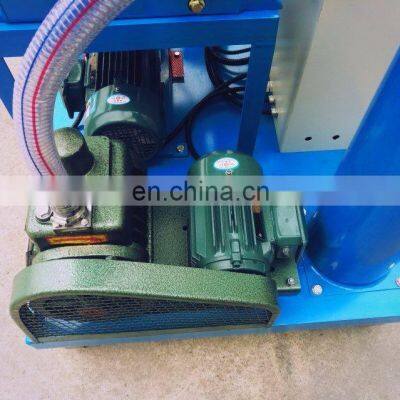

Easy Movable Vacuum Waste Oil Recycling Equipment TY Series photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

Easy Movable Vacuum Waste Oil Recycling Equipment


(TY Series)

Product Application:


ZY Series Portable High Vacuum Insulating Oil Purifier is mainly applied for electric power department or mining enterprise to process insulating oils such as: unqualified transformer oil, mutual inductor oil, switch oil and so on. Also it can remove the water, gas and impurity from the oil and recover the dielectric properties of the insulating Oil.



Feature:

1.Small size, high efficiency. It is convenient to move and can be used both indoor and outdoor.

2.Bi-infrared liquid Duplex 3D stereo-evaporation technology, equipped with special dehydrate and degas component, which can remove the water and gas from the oil effectively. Multistage precise filtration system, Molecular Adsorption Filters combined with gauze elementtechnology.


3.Complete machine chain protection device, heater co-works with oil bump and liquid position controller.


4.It can be used with BZ regeneration equipment, which can de-acid, decolor, remove free carbon and reduce mediating function.


Technical Parameter:

Item
unit
ZY-10 ZY-20 ZY-30 ZY-50 ZY-100 ZY-150 ZY-200
ZY-20
ZY-30
ZY-50
ZY-100
ZY-150
ZY-200
ZY-300
Flow rate
L/h
600
1200
1800
3000
6000
9000
12000
18000
Vacuum degree
MPa
-0.06~-0.095
Working pressure
MPa
≤0.4
Temperature range
20 ~ 80
Continuous working
H
150
Power supply
Three phase, 50HZ ,380V(or as per customers'requirement)
Working noise
dB(A)
61
63
70
70
75
70
70
70
Heating power
kW
11
13
15
30
48
58
70
85
Total power
kW
12.5
14.5
16.5
33.5
53
65
76
94
Oil outlet/inlet
mm
φ25
φ25
φ25
φ32
φ42
φ50
φ50
φ60
Item
Unit
Index after purifying
Moisture content
PPM
≤5
Impurity size
micron
≤1
Gas content
%
≤0.1
Breakdown voltage
KV
≥70
Packing & Delivery

Packing: standard export wooden case per set, it's stable enough in long-term transportation.

Shipping method: usually transport by sea, but air freight is available if necessary.

Certificates
Our Company

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.

Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.




FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, Alibaba Trade Assurance etc.
Payment terms: Generally, T/T 40% advanced, the balance paid by T/T when the machine is ready; or 100% irrevocable L/C at sight.

What are the available delivery methods?
Our port location: Chongqing, Shanghai or other main port of China
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 10 ~ 20 days; test equipment or analyzer delivery date is around 5~10 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 2 years after start up of the system.

How is the technical services on the product?
Engineer available to service machinery overseas. If you have any technical question, you are welcome to contact us any time. We will response promptly and answer to your satisfaction. If required and necessary, we can send our engineer to your place to provide technical support.
