Electric Power Procurement 6000 L/hr Mobile Type Ultra High Vacuum Transformer Oil Filtration Plant
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Outdoor Use Movable Vacuum Isulating Oil Filtration Purifier ZYM SeriesNegotiableMOQ: 1 -
ZYD-S-30 Trailer Open Type Waste Black Oil Filtration Device, Transformer Oil Recycling /Refinery PlantNegotiableMOQ: 1
-
ZYD-W Fully Enclosed Double Stage Vacuum Used Transformer Oil Purification MachineNegotiableMOQ: 1
-
Online Treating Transformer Oil Purifier Oil Water Separating MachineNegotiableMOQ: 1
-
Outdoor Mobile Double Stage Vacuum Insulating Oil Recovery Machine Model ZYD-50NegotiableMOQ: 1
Mobile type transformer oil treatment machine
(ZYD-M Series)
Product Description
Application:

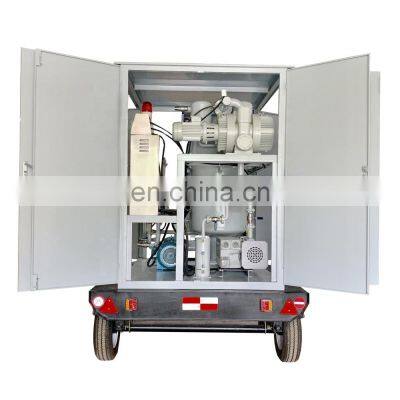

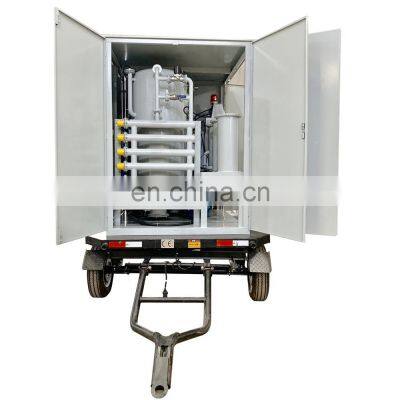

ZYD-M is outdoor use mobile type high vacuum transformer oil filtration plant mounted on a roadworthy trailer which can move long distance, and covered with weatherproof metal enclosure with hinged doors. It is a creative design introducing domestic and international advanced technology. It is applied to process transformer oil and insulating oil from power plant, power station, electric power company, power transmission equipment, transformers, industrial and mining enterprises, especially suitable for onsite installation, maintenance and purifying high level new oil, or running oil from big power transmission and distribution equipment and transformers on national main power transformation grid, which is above 110-750KV. It can shorten the oil treatment period for transformer installation and maintenance.
This mobile type oil treatment plant has been procured by many government electric power departments for treatment of new oil (as per IEC 60296) and reconditioning of used oil (as per IEC 60422 for oil in-service) in EHV class transformer, shunt reactor and other oil filled equipment in order to achieve properties of treated oil within specified limits at the rated capacity.
Features:
1. ZYD-M Series is outdoor usage mobile type machine. Equipped with trailer, it moves easily and is convenient for outdoor use.
2. And it has double-stage high pumping speed vacuum system, multistage stage vacuum analytical separation system, it can quickly separate out water, gases, impurities, polar substances and other deteriorated materials.
3. Adopting the three-dimensional flash evaporation dehydration and degassing technology, it high efficiently separates water, gases from the oil, making the breakdown voltage rapidly increase to above 75KV.
4. Adopting the complex high speed degassing spiral flow structure, oil gas separate dual channel technology, redissolution technology in anti oil gas separation, it quickly removes various organic hydrocarbon gases, ensuring no acetylene and hydrogen in oil.
5. Adopting carbon fiber infrared heating, grouped ultra low surface load, PID constant temperature control and dual temperature flow protection technology. Inside the machine installed the the diameter increase oil flow direction turning overflow technology to prevent “dead oil area”, over-temperature and drying.
6. Adopting multistage high β value compound filtration system, linear coupling filter seal, it can effectively filter even the tiny particles mechanical impurities.
7. Specially made precise oil pump with low noise meeting environmental protection requirement.
8. Online filtering oil; with nobody watching is okay, and it can also be used for vacuum oiling the transformers etc and drying its hot oil.
9. Equipped with advanced infrared liquid level auto control system, auto defoaming control system, pressure protection system and safety interlock control to ensure that the equipment work for long time, safely and reliably.
Tehcnical Parameters
Item | Unit | ZYD-M-30 | ZYD-M-50 | ZYD-M-100 | ZYD-M-150 | ZYD-M-200 | ZYD-M-250 | ZYD-M-300 | ||||||||
Flow rate | L/min | 30 | 50 | 100 | 150 | 200 | 250 | 300 | ||||||||
Vacuum degree | MPa | -0.08 ～ -0.099 | ||||||||||||||
Working pressure | MPa | ≤0.3 | ||||||||||||||
Temperature range | ℃ | 20 ～ 80 | ||||||||||||||
Power supply | 380V/50HZ/3Ph 5 wire(as customer’s requirement) | |||||||||||||||
Normal working hour | H | ≥ 4000 | ||||||||||||||
Continuous work hour | H | 150 | ||||||||||||||
Working noise | dB(A) | 70 | 70 | 70 | 75 | 75 | 75 | 75 | ||||||||
Heating power | KW | 28 | 30 | 45 | 60 | 75 | 90 | 120 | ||||||||
Total power | KW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 | ||||||||
Outlet(inlet) caliber | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | ||||||||
Weight | Kg | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 | ||||||||
Size | L | mm | 1500 | 1600 | 1800 | 1900 | 2000 | 2100 | 2200 | |||||||
W | mm | 800 | 850 | 1100 | 1150 | 1200 | 1200 | 1200 | ||||||||
H | mm | 1600 | 1700 | 1900 | 2000 | 2100 | 2200 | 2300 | ||||||||
Index after filtering | BDV | kV | ≥75 | |||||||||||||
Moisture | PPM | ≤3 | ||||||||||||||
Gas | % | 0.1 | ||||||||||||||
Detailed Images
We also have other types of oil purifier and tester for transformer oils, if you need any one related, pls tell me to quote them together. You can send me inquiry here or contact me at +8613983286435 (Mob/Whats App) or sales10( at ). I will response the soonest within 24 hours.
Related Products
Packing&Shipping
Packing: standard export wooden case per set.
Delivery method: the oil purifier machines are usually delivered by sea, but other method is available if necessary.
Delivery method: the oil purifier machines are usually delivered by sea, but other method is available if necessary.
Company Introduction
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
Certifications
(Key word for transformer oil purifier: mobile type transformer oil purifier for recycling used transformer oil, double stages oil purifier, vacuum double stage insulation oil purifier,transformer oil dehydration machine, transformer oil dehydration plant, insulating oil purifier, transformer oil filtrating machine, moisture removing machine, transformer oil centrifuging machine, insulation oil separation, transformer oil filtrating machine, transformer oil filtration machine, oil dehydrator, dielectric oil filtering machine, oil water separator, used transformer oil filter machine, water oil separator, oil filtrate machine, waste oil recycling equipment. oil water separator, oil purifier machine, insulating oil recycling, dielectric oil treatment, transformer oil dryer, vacuum dielectric oil cleaner, transformer oil recycling equipment, zyd transformer oil treatment plant, age transformer oil filtration machine, waste oil recovery system, transformer oil recovery system, regeneration of transformer oil, used oil regeneration system, waste oil regeneration machine, insulation oil reclaiming unit, oil reclaimer, transformer oil reclaiming equipment, insulation oil recovery unit, transformer oil reclamation equipment, weather-proof transformer oil purifier, double stage used transformer oil purifier, waste dielectric oil filtration systems, insulating oil transformer oil purifier, transformer oil insulation oil purifier, dielectric oil treatment for transformer, vacuum transformer oil treatment plant, double stage oil purifier, double stage vaccum transformer oil purifier, dielectric oil filling system, vacuum oil filling system, transformer oil filling machine, vacuum transformer oil purification machine, transformer oil purifying machine, transformer oil refining oil machine, transformer oil refinery, aging transformer oil recondition plant, dehydrate transformer oil, dehydrate transformer oil, transformer oil degasing machine, dirty insulation oil regeneration, transformer oil dehydration plant 4000 liters / hours, transformer oil dry out system, insulation oil gas separator,insulation oil processing machine,transformer oil purification and filtration device,transformer oil purification plant,transformer oil centrifuging machine,vacuum transformer oil degasification,insulation oil degas purifier,transformer oil dewatering system,vacuum used oil dewatering system,3000 liter aging transformer oil purifier,transformer oil moisture removal,degassing transformer oil dehydrator,transformer oil water separation process...)
FAQ
1. What is the mini order quantity?
MOQ: generally 1 unit/piece/set
2. What payment methods are supported?
Payment method: By T/T, L/C, Alibaba Trade Assurance etc.
3. What are the available delivery methods?
Our port location: Chongqing, Shanghai or other main port of China
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation
4. How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 10 ~ 20 days; test equipment or analyzer delivery date is around 5~10 days. Some products have stock, contact us anytime to get more information.
5. How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 2 years after start up of the system.
6. How is the technical services on the product?
Engineer available to service machinery overseas. If you have any technical question, you are welcome to contact us any time. We will response promptly and answer to your satisfaction. If required and necessary, we can send our engineer to your place to provide technical support.
MOQ: generally 1 unit/piece/set
2. What payment methods are supported?
Payment method: By T/T, L/C, Alibaba Trade Assurance etc.
3. What are the available delivery methods?
Our port location: Chongqing, Shanghai or other main port of China
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation
4. How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 10 ~ 20 days; test equipment or analyzer delivery date is around 5~10 days. Some products have stock, contact us anytime to get more information.
5. How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 2 years after start up of the system.
6. How is the technical services on the product?
Engineer available to service machinery overseas. If you have any technical question, you are welcome to contact us any time. We will response promptly and answer to your satisfaction. If required and necessary, we can send our engineer to your place to provide technical support.
If you are interested in this machine or other related equipment, welcome to contact me for more information. You can send me inquiry here or contact me at +8613983286435 (Mob/Whats App) or sales10( at ). I will response the soonest within 24 hours.
