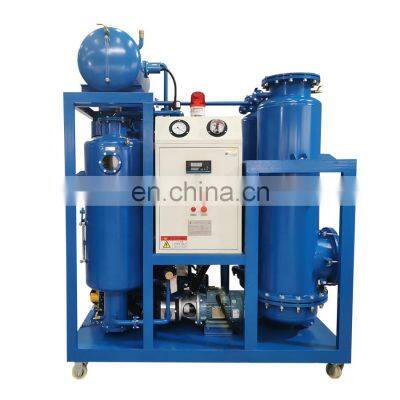

UCO Recycling Biodisel Filter Chongqing TOP Vacuum Machine Oil Purifier
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE Certified TYS Deap Filtration and Decolorization Palm Oil Purification MachineNegotiableMOQ: 1 -
CE Certified TYS Used Cooking Oil Restorative MachineNegotiableMOQ: 1
-
High Capacity Vegetable Oil Edible Oil Vacuum PurifierNegotiableMOQ: 1
-
Good Grade Safe Bleaching Earth Vegetable Oil Virgin Coconut Oil Decoloration MachineNegotiableMOQ: 1
-
Explosion Proof Design Diesel Fuel Biodiesel Oil Filtering Machine for Further PurificationNegotiableMOQ: 1

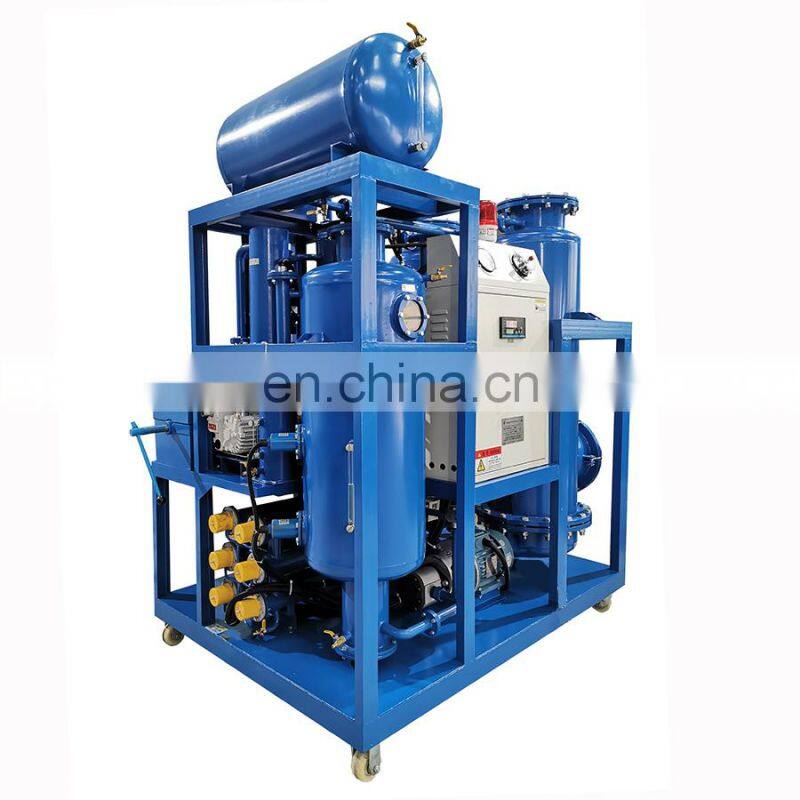

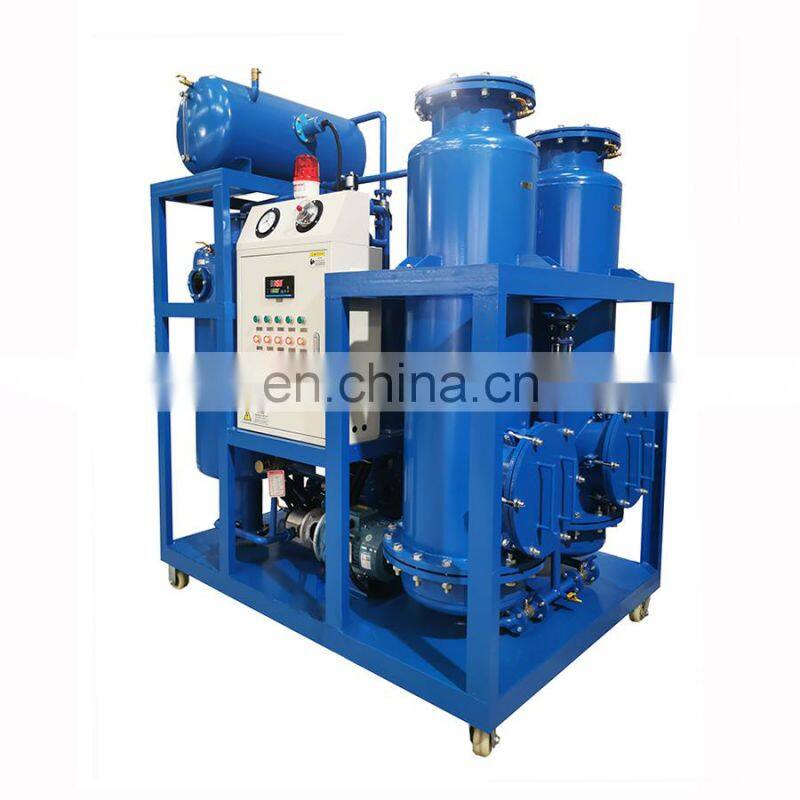

Oil Purification and Decolorization Machine
(TYR Series)
Product Description
Application:
TYR series oil purification and decoloration machine can quickly remove out impurities, water, gases and recover the oil color to original color. This machine uses our special additive to discolor, which is purely natural and has high efficiency. It can treat hydraulic oil, machinery oil, coolant oil, cooking oil, coconut oil in oil field, mine, metallurgy, electricity, transportation, manufacturing, food industry. The treated oil is very clear and transparent. It can also be equipped with waste oil distillation plant to highly improve the dark color of base oil/diesel after distillation process. And it is asked by customer to pre-treat the used cooking oil before further biodiesel. Features:

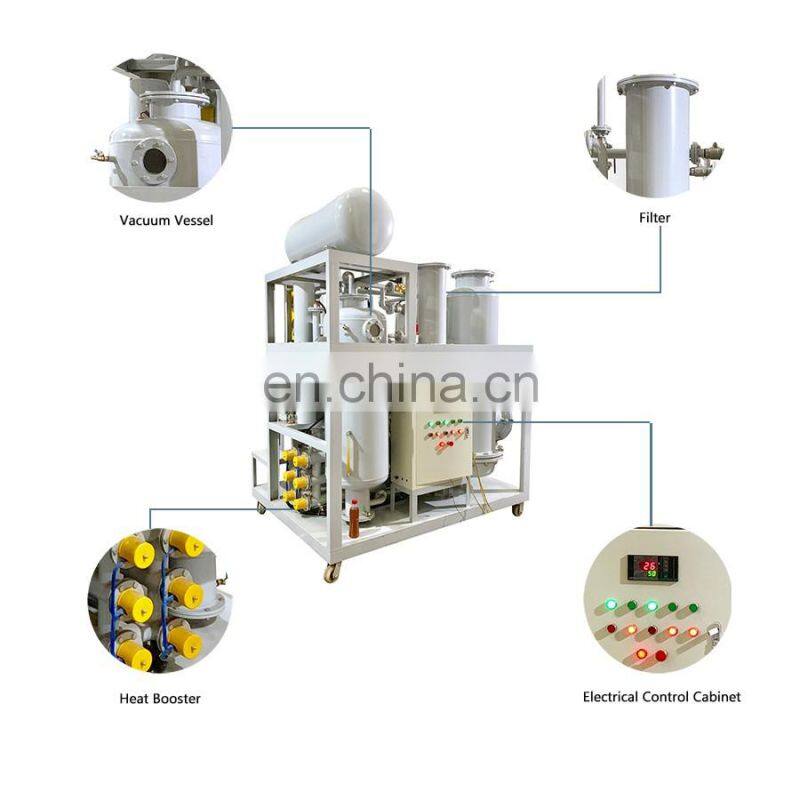

This machine adopts the the latest micro-filtration technology,which is a multi-functional purification system with vacuum oil filter, fine filter and decoloring device.It uses pure physical treatment to remove water, gases, impurities and decolor,which will not affect the composition and performance of the oil. Equipped with chain protection device, the machine is easy to operate, safe and reliable.
Tehcnical Parameters
Model | TYR-1 | TYR-2 | TYR-3 | TYR-5 | TYR-10 | TYR-15 | TYR-20 | TYR-30 | TYR-50 | ||||||||||
Capacity (ton/day) | 1 | 2 | 3 | 5 | 10 | 15 | 20 | 30 | 50 | ||||||||||
Power Supply | 380V/50HZ/3Phase（Customizable） | ||||||||||||||||||
Work Noise | ≤65 dB(A) | ||||||||||||||||||
Trouble-free Work | ≥ 4000h | ||||||||||||||||||
Continuous Work | ≥150h | ||||||||||||||||||
Inlet (outlet) caliber (mm) | Ф25 | Ф25 | Ф25 | Ф32 | Ф42 | Ф42 | Ф50 | Ф50 | Ф60 | ||||||||||
Weight (kg) | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | 5500 | ||||||||||
Size (mm) L*W*H | 1800 | 1850 | 1900 | 1950 | 2000 | 2200 | 2300 | 2400 | 2500 | ||||||||||
W | 1300 | 1350 | 1400 | 1450 | 1500 | 1600 | 1600 | 1700 | 1800 | ||||||||||
H | 2300 | 2300 | 2300 | 2400 | 2500 | 2700 | 2700 | 2700 | 2700 | ||||||||||
Guarantee value | color ≤ 2 | ||||||||||||||||||
impurity size ≤1micron(Customizable) | |||||||||||||||||||
moisture content≤50ppm | |||||||||||||||||||
gas content≤0.1% | |||||||||||||||||||
clean degree≤4(NAS1638) | |||||||||||||||||||

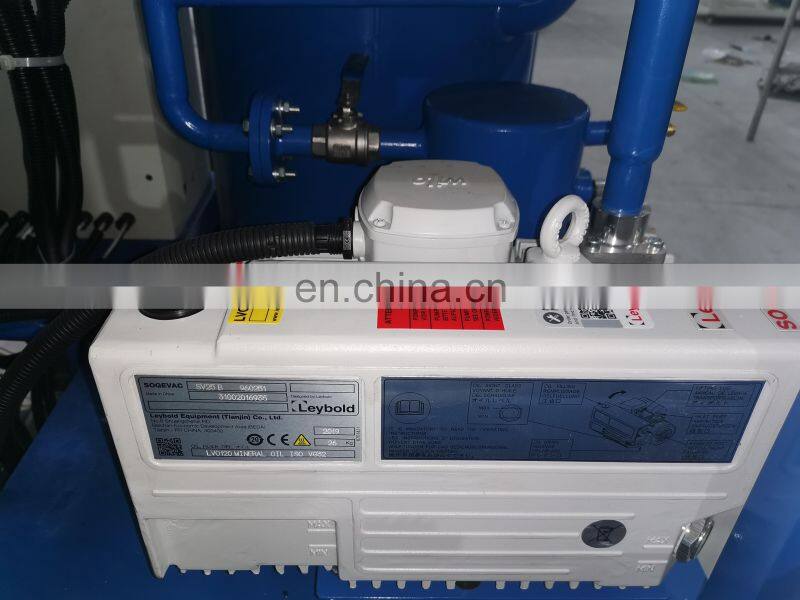

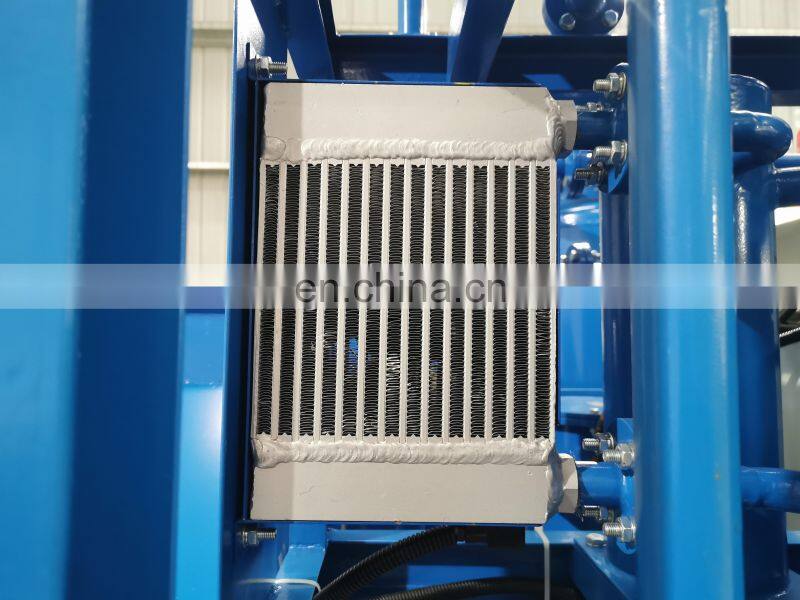

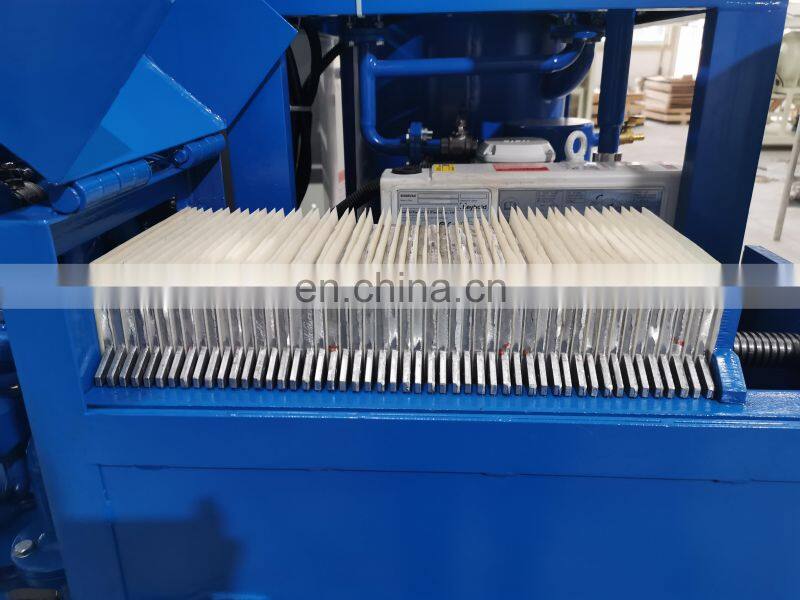

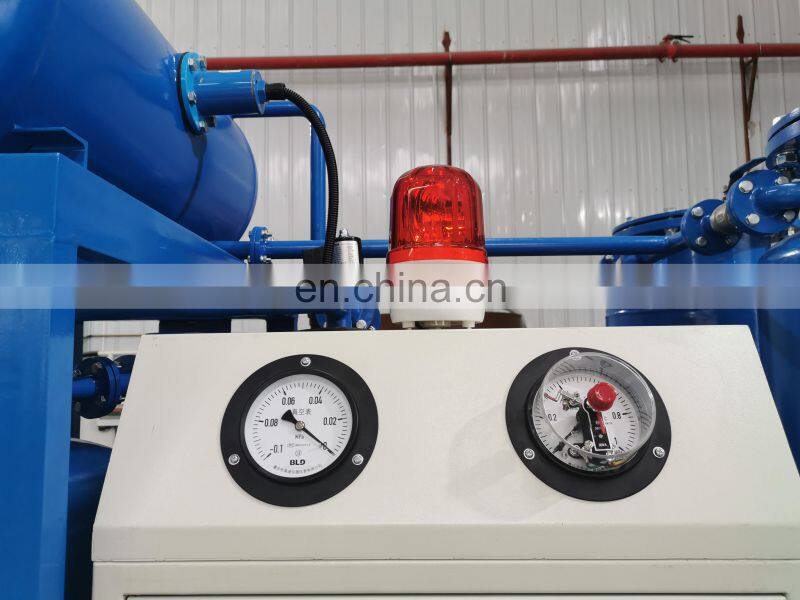

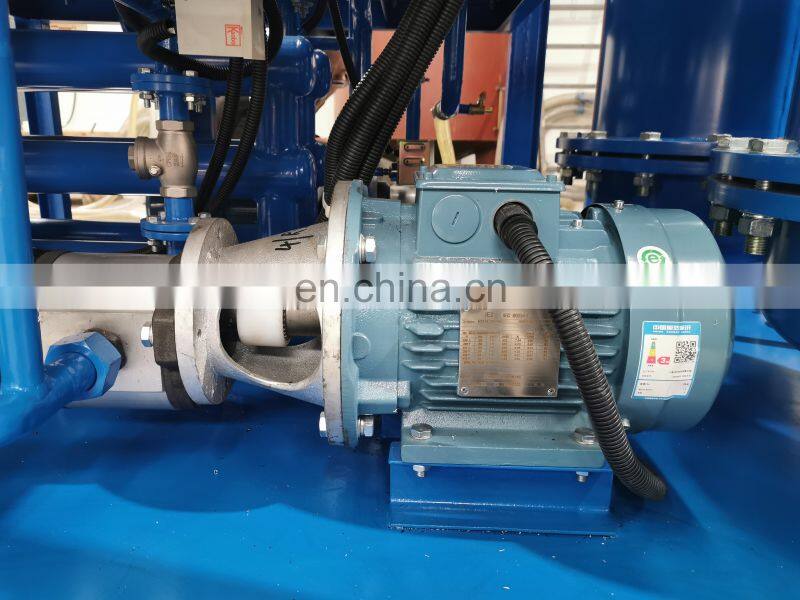

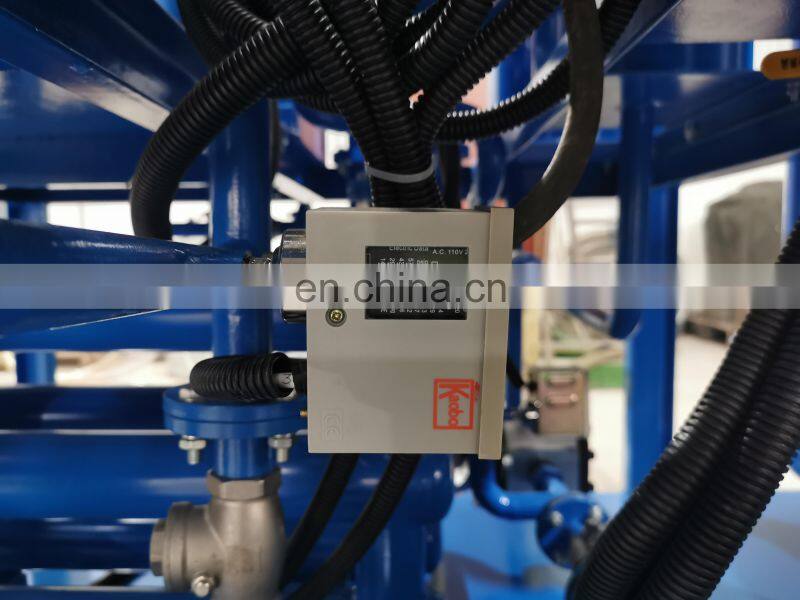

Detailed Images
Explosion proof type (TYR-Ex)
Suitable for treating diesel or in special environment where requires explosion proof designed machine.
We also have other types of oil purifier and tester, if you need any one related, pls tell me to quote them together. You can send me inquiry here or contact me at +8613983286435 (Mob/Whats App) or sales10( at ). I will response the soonest within 24 hours.
Related Equipment
Packing&Shipping
Packing: standard export wooden case per set.
Delivery method: the oil purifier machines are usually delivered by sea, but other method is available if necessary.
Delivery method: the oil purifier machines are usually delivered by sea, but other method is available if necessary.
Company Introduction
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
Certifications
FAQ
1. What is the mini order quantity?
MOQ: generally 1 unit/piece/set
2. What payment methods are supported?
Payment method: By T/T, L/C, Alibaba Trade Assurance etc.
3. What are the available delivery methods?
Our port location: Chongqing, Shanghai or other main port of China
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation
4. How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 10 ~ 20 days; test equipment or analyzer delivery date is around 5~10 days. Some products have stock, contact us anytime to get more information.
5. How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 2 years after start up of the system.
6. How is the technical services on the product?
Engineer available to service machinery overseas. If you have any technical question, you are welcome to contact us any time. We will response promptly and answer to your satisfaction. If required and necessary, we can send our engineer to your place to provide technical support.
MOQ: generally 1 unit/piece/set
2. What payment methods are supported?
Payment method: By T/T, L/C, Alibaba Trade Assurance etc.
3. What are the available delivery methods?
Our port location: Chongqing, Shanghai or other main port of China
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation
4. How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 10 ~ 20 days; test equipment or analyzer delivery date is around 5~10 days. Some products have stock, contact us anytime to get more information.
5. How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 2 years after start up of the system.
6. How is the technical services on the product?
Engineer available to service machinery overseas. If you have any technical question, you are welcome to contact us any time. We will response promptly and answer to your satisfaction. If required and necessary, we can send our engineer to your place to provide technical support.
If you are interested in this machine or other related equipment, welcome to contact me for more information. You can send me inquiry here or contact me at +8613983286435 (Mob/Whats App) or sales10( at ). I will response the soonest within 24 hours.
