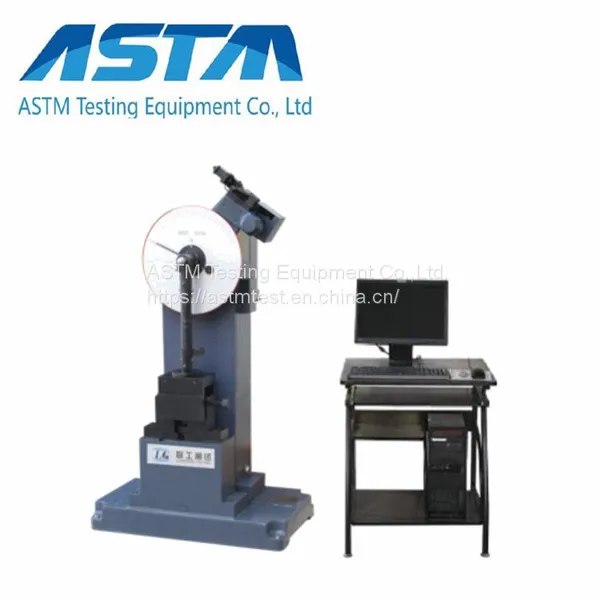

JBN-300 IZOD Impact Testing Machine

JBN-300 IZOD Impact Testing Machine thumbnail-1
JBN-300 IZOD Impact Testing Machine photo-1
US$ 8000 - 10000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ASTM
Place of Origin:
China
Model Number:
JBN-300
Contact Supplier Request Quote Chat Now
ASTM Testing Equipment Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ASTM
Place of Origin China
Model Number JBN-300
Power Electronic
Usage Impact Testing Machine

1.Usage

JBN-300 IZOD Impact Testing Machine is used to measure metal materials impact resistance performance under dynamic load, in order to judge the nature of the material under dynamic load.

This machine is semi-automatic testing machine, easy to operate and high efficiency. They can make use of spare energy to raise pendulum automatically and be ready for next impact test, can carry out the impact test continuously. It is widely used in the laboratory, metallurgy, machinery manufacturing industry, etc.


It correspond these standards:

1. ISO R84

2. B·S 131 part 4

3. GB4158-84

Reference scale:GB4158-84“Metal airy impact testing method”.

The max. Impact force is 162J, Sample: Square cross section is 10*10mm; Circular cross section isΦ11.43.



2.Technical Parameters

2.1. Pendulum energy:    300J

2.2. Dial scale:  division value 1J

2.3. Pendulum torque:  Pendulum energy:  300J   Pendulum torque:  179.20N.m

2.4. Pendulum Preparing Angle:   135°

2.5. The distance between pendulum center and sample center:    475mm

2.6. Impact speed:      3.98 m/s

2.7. Specimen and distance of pendulum contact wires to the symmetry of gap:

  22±0.5mm

2.8. Pendulum Apex Angle :     75±1°

2.9. Pendulum circle radius:     0.5~1mm

2.10. The angle of Sample front and pendulum underside:    100±1°

2.11. Sample specifications

   Square sample:  10*10*70~126mm

   Circular sample : Φ11.43*71~127mm

2.12. Net weight :     450kg

2.13. Overall dimensions :    1300*600*1340mm

2.14. Power:  3p 4-wire 380V 50Hz 250W


Product Tags: Impact Testing Machine , impact tester , IZOD Impact Testing Machine
