3 Axis Dro Digital Readout SINO And MK-500 Linear Scale Complete 3 Axis DRO Kit For Mill Or Lathe Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2013
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3 Axis Dro Digital Readout SINO Metal And MK-500 Linear Scale Complete 3 Axis DRO Kit For Mill Or Lathe MachineNegotiableMOQ: 1 -
2 Axis Dro Digital Readout SINO Metal And MK-500 Linear Scale Complete 2 Axis DRO Kit For Mill Or Lathe MachineNegotiableMOQ: 1
-
2 Axis Dro Digital Readout SINO And MK-600 Linear Scale Complete 2 Axis DRO Kit For Mill Or Lathe MachineNegotiableMOQ: 1
-
2 Axis Dro Digital Readout SINO Metal And MK-600 Linear Scale Complete 2 Axis DRO Kit For Mill Or Lathe MachineNegotiableMOQ: 1
-
LCD Digital Display For Lathe 2 Axis 3axis Digital Readout Display Dro For Milling MachineNegotiableMOQ: 1
Sino Digital Readout System 3 Axis Digital Readouts For Milling Machines and Lathe
We own the brand of SINO and GDXH for the Digital Readout product series.
OEM is open to customers based on quantities.
Introduction
The Digital Readout series use the advanced technology, quality committed, Unimetro offers the best products and service, to ensure an excellent product experience for the users.
The XH-3 series digital readout 3 axis systems are universal functional digital readout system used on the milling machine, lathe,grinding machine, EDM, wire cut etc. The Lathe application is with the spindle constant speed control function, makes the machine much better performance.
The Digital Readout series use the advanced technology, quality committed, Unimetro offers the best products and service, to ensure an excellent product experience for the users.
The XH-3 series digital readout 3 axis systems are universal functional digital readout system used on the milling machine, lathe,grinding machine, EDM, wire cut etc. The Lathe application is with the spindle constant speed control function, makes the machine much better performance.

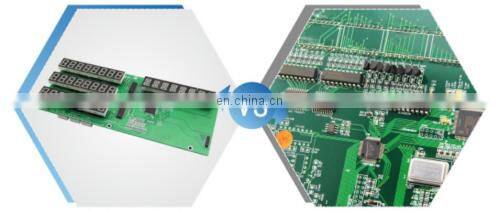

Main board
GDXH:
Single chip design, with powerful function, stable performance, low error rate.
Others: Independent components layout, limited function, unstable and high error rate.

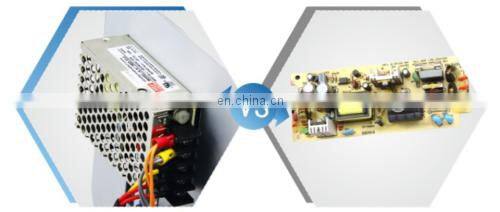

Power supply
Others: Independent components layout, limited function, unstable and high error rate.
Power supply
GDXH:

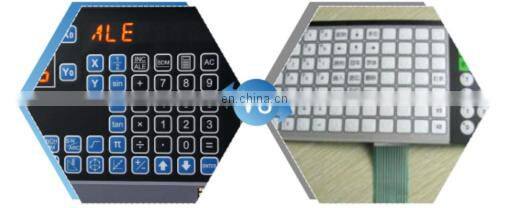

Using spring press button, more than 100,000 times press life cycle.
Others: Using membrane keys, life cycle only 10,000 times.
Membrane
Others: Using membrane keys, life cycle only 10,000 times.
Membrane
GDXH:
Using PC material membrane, the wear resistance capability up to tens of thousands times, long life cycle.
Others: PVC material membrane, the wear resistance capability only thousands times.
Others: PVC material membrane, the wear resistance capability only thousands times.

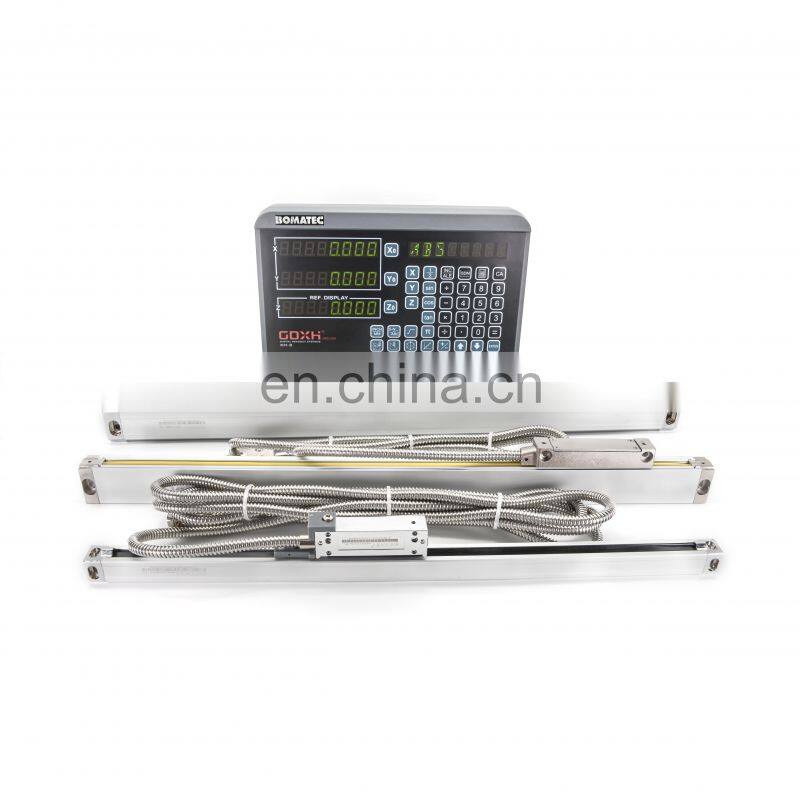

XH-3P - 3-Axis Digital Readout Package Deal
Includes 1 x DRO Counter, 3 x Scales & 1 x Bracket Kit
Suits Lathes & Mills
Overview
Sino XH-3 series DRO offers an affordable low cost solution for your Lathe or Milling machine digital readout requirements. This special “XH-3P” package includes a 3-Axis Digital Readout Counter, choice of any 3 Scales ranging from 70mm to 1020mm and choice of 1 bracket kit to suit lathe or milling machine mounting.
Features
* 3-Axis digital display
* Multi function display for lathes or milling machines
* Inch / metric display
* Mid point calculation
* Absolute & incremental (ABS/INC)
* Pre-set datum coordinates
* Bolt hole circle and line positioning
* Arc and slope processing
* Angle display mode
* Load default setup
* Clear zero
* Power off memory
* Brightness adjustment
* 240V
* Please Note: Modification to mounting brackets or additional brackets & spacers maybe required to suit your requirements

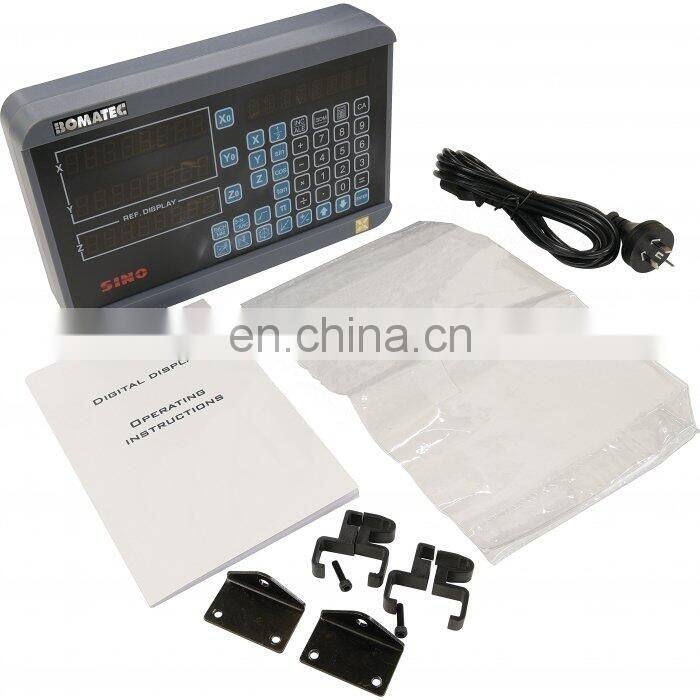

Includes

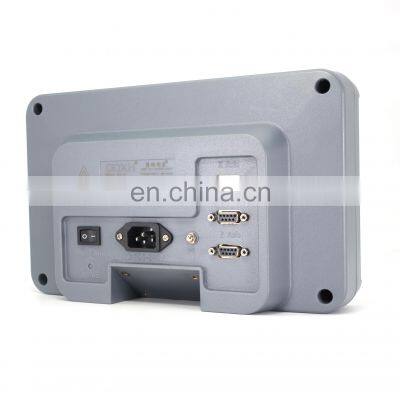

* XH-3 3-Axis Digital Readout Unit
* 3 x Scales between 70-1020mm
* 1 x Bracket Kit for Lathe or Mill
Suits Lathes & Mills
Overview
Sino XH-3 series DRO offers an affordable low cost solution for your Lathe or Milling machine digital readout requirements. This special “XH-3P” package includes a 3-Axis Digital Readout Counter, choice of any 3 Scales ranging from 70mm to 1020mm and choice of 1 bracket kit to suit lathe or milling machine mounting.
Features
* 3-Axis digital display
* Multi function display for lathes or milling machines
* Inch / metric display
* Mid point calculation
* Absolute & incremental (ABS/INC)
* Pre-set datum coordinates
* Bolt hole circle and line positioning
* Arc and slope processing
* Angle display mode
* Load default setup
* Clear zero
* Power off memory
* Brightness adjustment
* 240V
* Please Note: Modification to mounting brackets or additional brackets & spacers maybe required to suit your requirements
Includes
* XH-3 3-Axis Digital Readout Unit
* 3 x Scales between 70-1020mm
* 1 x Bracket Kit for Lathe or Mill
Overview
Lathe Bracket Mounting kit suits SINO XH-3 3-Axis Digital Readout Unit
Features
* Components carefully selected to assist in mounting Sino 2-Axis DRO onto Lathes

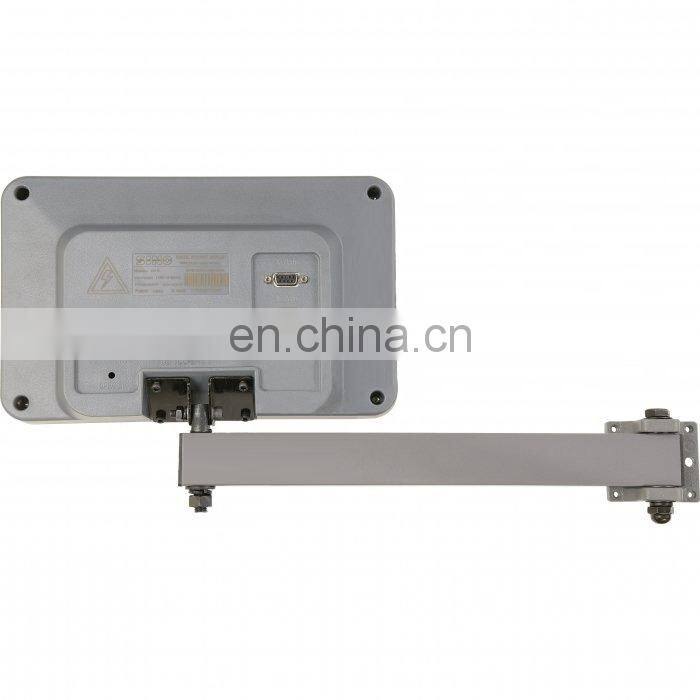

* Lathe headstock display arm with swivel bracket
* Cast aluminium brackets slotted and tapped
* Please Note: Modification to brackets or reproducing of additional brackets or spacers maybe required to suit your particular machine
Includes
* Lathe headstock display arm with swivel bracket
* 1 x Angle ‘B2’ Bracket Slotted and Tapped (40x50x8mm x 80mm wide)
* 1 x Flat ‘C2’ Bracket Slotted and Tapped (80x130x10mm)
* 1 x Flat ‘D2’ Bracket Slotted and Tapped (70x80x10mm)
* 1 x Y-Axis ‘E2’ Bracket Slotted and Tapped (35x70x10mm)
* Screws and washers
* Components carefully selected to assist in mounting Sino 2-Axis DRO onto Lathes
* Lathe headstock display arm with swivel bracket
* Cast aluminium brackets slotted and tapped
* Please Note: Modification to brackets or reproducing of additional brackets or spacers maybe required to suit your particular machine
Includes
* Lathe headstock display arm with swivel bracket
* 1 x Angle ‘B2’ Bracket Slotted and Tapped (40x50x8mm x 80mm wide)
* 1 x Flat ‘C2’ Bracket Slotted and Tapped (80x130x10mm)
* 1 x Flat ‘D2’ Bracket Slotted and Tapped (70x80x10mm)
* 1 x Y-Axis ‘E2’ Bracket Slotted and Tapped (35x70x10mm)
* Screws and washers

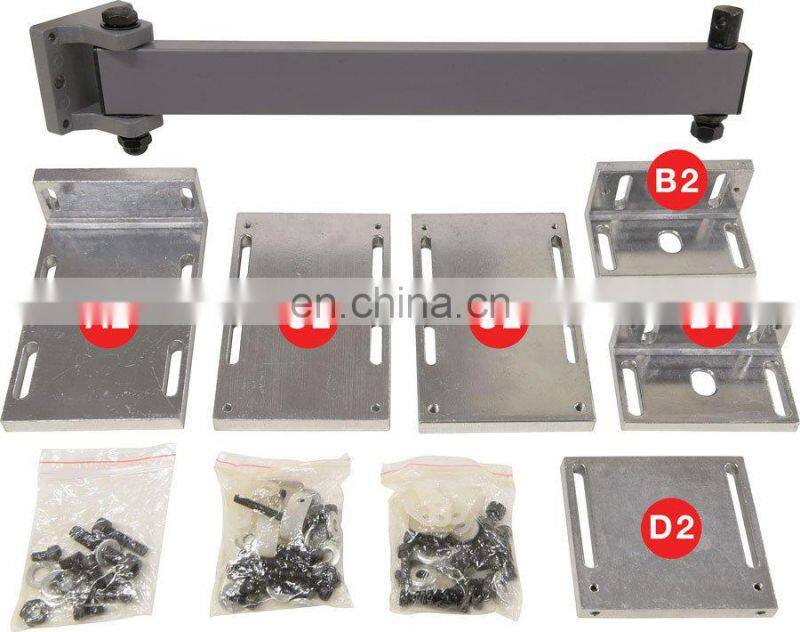

Overview
Mill Bracket Mounting kit suits SINO XH-2 2-Axis or XH-3 3-Axis Digital Readout Units
Features
* Components carefully selected to assist in mounting Sino 2-Axis or 3-Axis DRO onto Milling machines

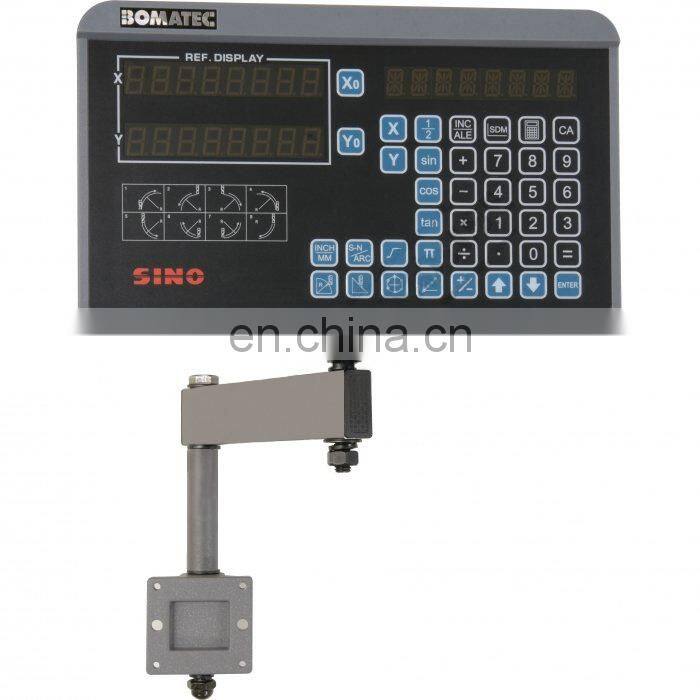

* Milling Machine display arm with swivel bracket
* Cast aluminium brackets slotted and tapped
* Please Note: Modification to brackets or reproducing of additional brackets or spacers maybe required to suit your particular
machine
Includes
* Milling Machine display arm with swivel bracket
* 1 x Angle ‘A2’ Bracket Slotted and Tapped (40x130x10mm x 80mm wide)
* 2 x Angle ‘B2’ Bracket Slotted and Tapped (40x50x8mm x 80mm wide)
* 2 x Flat ‘C2’ Bracket Slotted and Tapped (80x130x10mm)
* 1 x Flat ‘D2’ Bracket Slotted and Tapped (70x80x10mm)
* Screws and washers
* Components carefully selected to assist in mounting Sino 2-Axis or 3-Axis DRO onto Milling machines
* Milling Machine display arm with swivel bracket
* Cast aluminium brackets slotted and tapped
* Please Note: Modification to brackets or reproducing of additional brackets or spacers maybe required to suit your particular
machine
Includes
* Milling Machine display arm with swivel bracket
* 1 x Angle ‘A2’ Bracket Slotted and Tapped (40x130x10mm x 80mm wide)
* 2 x Angle ‘B2’ Bracket Slotted and Tapped (40x50x8mm x 80mm wide)
* 2 x Flat ‘C2’ Bracket Slotted and Tapped (80x130x10mm)
* 1 x Flat ‘D2’ Bracket Slotted and Tapped (70x80x10mm)
* Screws and washers

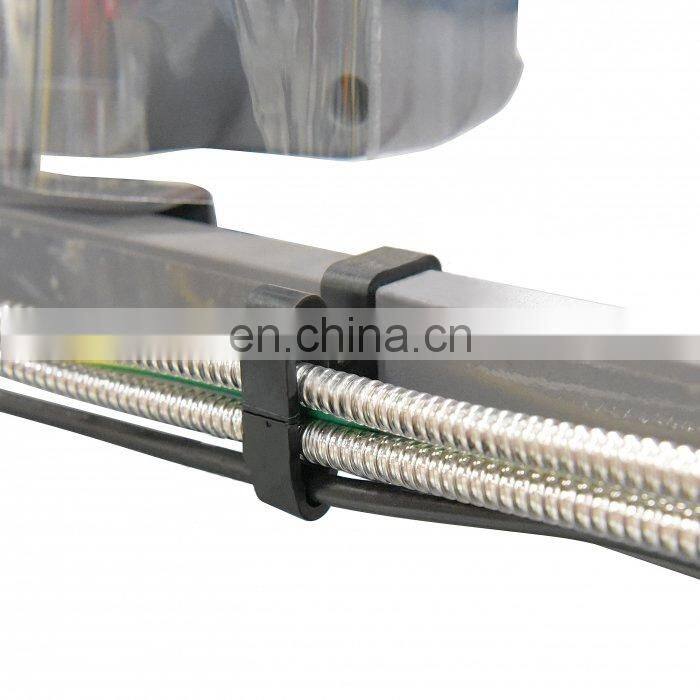

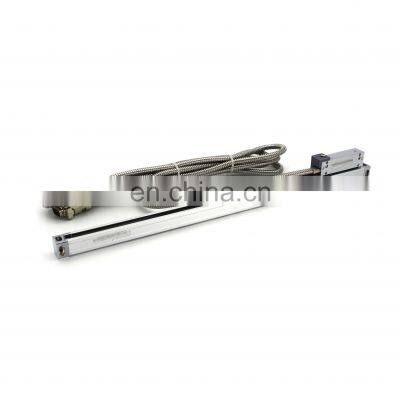

MK-500/5U - Sino Digital Readout Scales
5µm
Overview
Sino MK series DRO scales offer an affordable low cost solution for your Lathe or Milling machine digital readout requirements. Scales lengths available in a range from 170mm to 1020mm.
Compact scales available ranging from 170mm to 270mm specially designed to suit X-Axis travels on Lathes.
Features
Compact body designed for mounting on Lathe X-Axis travels
Scale body made from extruded aluminium with wiper seals
Glass scale with 5µm resolution
3m connection cable with 9 pin D-Sub connector
The slide carrier of the MK series scales uses Japanese NSK bearings to provide high precision, low noise and long service life
Includes mounting backing plate, cover & mounting screws
An easy-to-follow D.I.Y. Installation Manual is supplied with each system, complete with illustrations and mounting brackets
