OEM Tool Inspection Systems Video Measuring Instrument Apply to Different Tools Testing
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2013
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tool Inspection System for MillingNegotiableMOQ: 1 -
Milling Tool Inspection System Tool VMM MachineNegotiableMOQ: 1
-
Milling Tool Inspection System Tool Video Measuring System Vision Measurement Machine VMM MachineNegotiableMOQ: 1
-
Tool Video Measuring System Cutting Tools Vision Inspection SystemNegotiableMOQ: 1
-
Milling Tool Inspection System Tool Video Measuring MachineNegotiableMOQ: 1
Ranger 600 Tool Inspection System

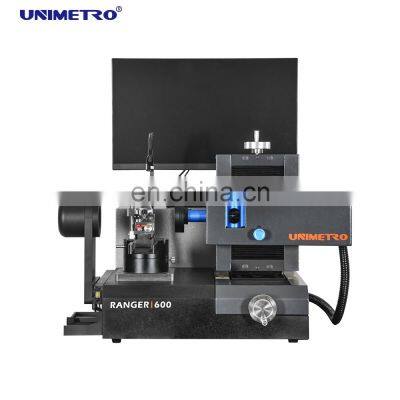

The UNIMETRO RANGER600 Tool Inspection System is the universal measuring machine for drills, milling cutters and counters and countersinks under Flexible illuminating system. Thanks to the compact design and great stability,
the RANGER600 can be employed in the metrology room, receiving inspection, or directly in production.
the RANGER600 can be employed in the metrology room, receiving inspection, or directly in production.
PRODUCT CHARACTERISTCS
﹥Ergonomic design and solid construction.
﹥HD image capturing and display combination, also microscope magnification level is optional.

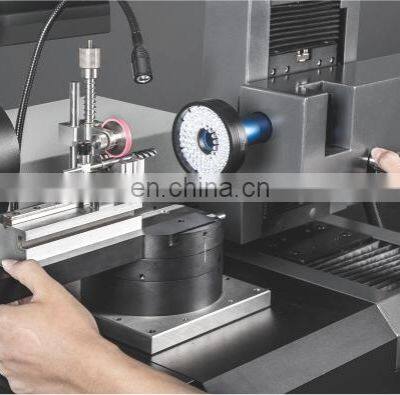

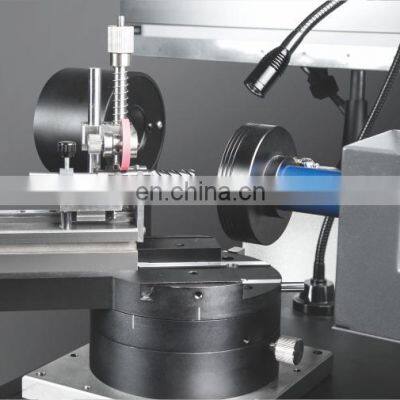

﹥Stable and accurate V block for easy tools holding and alignment.
﹥Mechanical fixed measuring angle of 0 degree and 90 degrees are available on the rotary stage.
﹥High accuracy encoder is embedded in the rotary table, offers precise angle location for users.

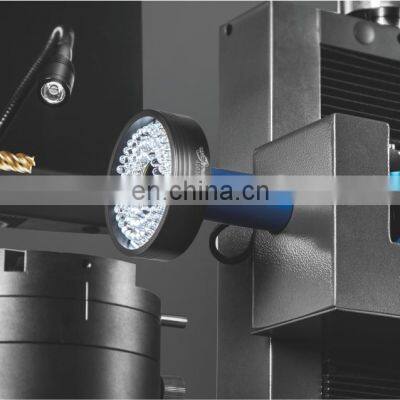

﹥Multiple section programmable LED ring light for surface illumination, also including contour lighting and free angle auxiliary light for standard features.
﹥SMARTOOL measuring software offers specific measuring function for cutting tools.
﹥Automatic edge detection, fast angle measurement with reticle, CAD element comparison functions are available.
﹥Measuring result fast output to EXCEL file report or CAD file.
﹥ALL-IN-ONE PC system makes the machine more stable.
﹥HD image capturing and display combination, also microscope magnification level is optional.
﹥Stable and accurate V block for easy tools holding and alignment.
﹥Mechanical fixed measuring angle of 0 degree and 90 degrees are available on the rotary stage.
﹥High accuracy encoder is embedded in the rotary table, offers precise angle location for users.
﹥Multiple section programmable LED ring light for surface illumination, also including contour lighting and free angle auxiliary light for standard features.
﹥SMARTOOL measuring software offers specific measuring function for cutting tools.
﹥Automatic edge detection, fast angle measurement with reticle, CAD element comparison functions are available.
﹥Measuring result fast output to EXCEL file report or CAD file.
﹥ALL-IN-ONE PC system makes the machine more stable.
SOFTWARE FUNCTION
Efficient measurement software
▶The SMARTOOL Cutting Tools Measuring Software is developed based on high accuracy optical and digital measuring technology, it is easy and intuitive to operate and offers numerous measuring and evaluation algorithms
specifically for tools manufactured or sharpened in grinding business.
Sharp, high-contrast views at all magnification. All magnification are calibrated.
High zooming level allows analysis of even the smallest surface details or the inspection of micro-tools.
Intuitive and easy-operating software interface - for fast and easy measurement application, all function keys and operation panel are graphical, and the automatic edge detection function helps to eliminate the measuring result
difference of different operators.
specifically for tools manufactured or sharpened in grinding business.
Sharp, high-contrast views at all magnification. All magnification are calibrated.
High zooming level allows analysis of even the smallest surface details or the inspection of micro-tools.
Intuitive and easy-operating software interface - for fast and easy measurement application, all function keys and operation panel are graphical, and the automatic edge detection function helps to eliminate the measuring result
difference of different operators.
OPTIONAL ACCESSORIES
Standard accessories
▶Free angle auxiliary light
▶Contour light module
▶Base table
▶Tools holder
PARAMETER
Model |
Ranger600 |
||||||
X/Y/Z axis travel |
80*60*60 mm |
||||||
Max tool diameter |
50mm |
||||||
Max tool length |
300mm |
||||||
Working distance |
90mm |
||||||
Lens |
0.7x~4.5X dented zoom lens |
||||||
Camera |
2M pixel HD camera / 5M pixel HD camera (Optional) |
||||||
Linear scale resolution |
0.0001mm |
||||||
Magnification |
12.6X ~ 79.2X / 25.2X ~ 158.4X (Optional) |
||||||
FOV |
27*20mm ~ 4.3*3.3mm / 13.5*10mm ~ 2.3*1.6mm(Optional) |
||||||
Measuring Accuracy |
X ~ Y, (2.5 + L / 100)μm, L is the measured length |
||||||
Illumination |
8 sections LED ring light, contour light and flexible auxiliary light, all software control and programmable. |
||||||
L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is related to the surface of the workpiece.
**Magnification is approximate value, it is related to the dimension of monitor and resolution.
Field of view(mm) = (diagonal*Horizontal*Vertical)
0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.
AFTER-SALES SERVICE
LOGISTICS
ABOUT US
Dongguan UNIMETRO Precision Machinery Co., Ltd
Dongguan UNIMETRO Precision Machinery Co., Ltd is a professional supplier of metrology products with 9 years experience. We devote ourselves to developing, assembling, and sales of vision measurement machines, tools inspection machines, metrology accessories and special metrology fixtures. Also we are integrating the best metrology resources in the world and have built a mature supply chain for other metrology equipment and products. The UNIMETRO products have been sold to more than 20 countries and regions, and contribute our service and support to different customers in different industries such as mold, plastic injection, electronics, semi conductor, aviation and automotive. UNIMETRO has the leading advantage of outstanding R&D capability and detailed oriented production process. We have got more than 15 patents for our products and we will always keep the leading position of innovation in the metrology industry. Professional, sincere, responsibility, and honest are the key characters of the UNIMETRO people. And we are always expecting long term cooperation with you! UNIMETRO will always offer our best support and resources to our partners!
FAQ
Q: Are you a factory or trading company ?
A: We are a factory and giving you the quickest reply in 24 hours.
Q: What's your company mainly in?
A: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q: How to Choose the Appropriate Specification?
A: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring
instrument of suitable specifications.
Q: Do you accept customized service?
A: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q: What is your warranty period?
A: Our product warranty period is 2 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
