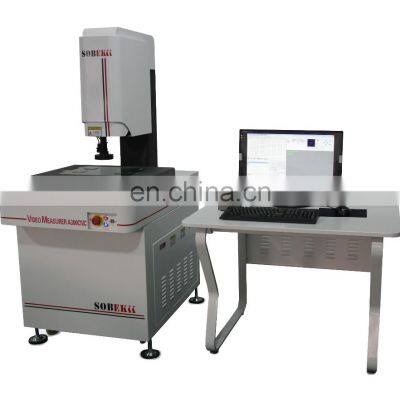

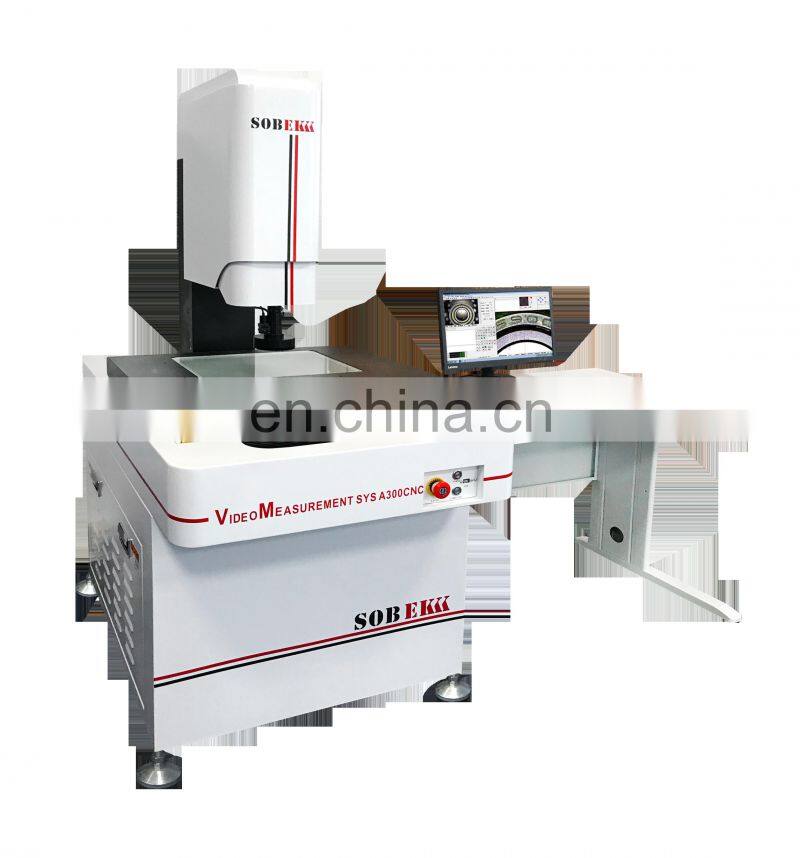

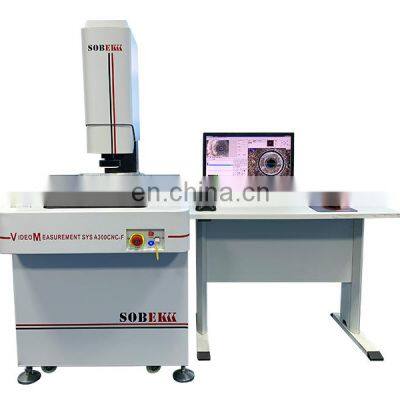

SOBEKK AZ400 A-CNC Series High Precision 3D Automatic Video Measuring Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2004
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SOBEKK AG400 A-CNC Series High Precision 3D Automatic Video Measuring MachineNegotiableMOQ: 1 -
SOBEKK AZ300 A-CNC Series High Precision 3D Automatic Video Measuring MachineNegotiableMOQ: 1
-
SOBEKK AG300 A-CNC Series High Precision 3D Automatic Video Measuring MachineNegotiableMOQ: 1
-
SOBEKK S400 S Series 2D Semi-automatic Video Measuring MachineNegotiableMOQ: 1
-
SOBEKK AM1000 A-CNC Series 3D Automatic Video Measuring MachineNegotiableMOQ: 1
Product Introduction
AZ-CNC Automatic video measuring machine
● Measuring table is made of aerospace aluminum alloy with high rigidity. Suitable for high-speed movement, this material is very light and with low inertia to ensure the long-term stability of the machine.
● Imported key components with rigorous, normative assembling & adjustment.
● 4-axis CNC controls; full-automatic measurement.
● Being equipped with a navigational body tube realizes the function of map navigation.
● Adopting high-definition frame grabber ensures image sharpness of measurement.
● Japan “THK” high precision linear guide way
and ground ball screw.
● “RENISHAW” metal linear encoder with high resolution of 0.5μm.
● Adopting “RENISHAW” probe system realizes 3D contacted measurement.
Parameter
Model |
AZ300 |
AZ400 |
|
Measuring range(mm) |
300×200×180 |
400×300×180 |
|
Machine size(mm) |
1450×1050×1650 |
1600×1200×1650 |
|
Weight(kg) |
450 |
500 |
|
Max. load(kg) |
20 |
25 |
|
Accuracy of X-Y axis(μm) |
2+L/200 |
||
Accuracy of Z axis(μm) |
5+L/200 |
||
XYZ resolution(μm) |
0.5 |
||
Repeatability(mm) |
0.002 |
||
Linear encoder |
metal linear scale |
||
Moving speed(mm/s) |
X-Y: 400 Z:100 |
||
Camera type |
1.3M pixel digital industrial color camera |
||
Liner guide |
Japan“THK” SP grade linear guideway |
||
Screw rod |
“THK” ground ball screw |
||
Optics |
6:5:1 continual zoom Auto GPS lens |
||
Magnification |
optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X |
||
Software |
SBK-CNC full-automatic measuring software |
||
Motor |
“PANASONIC” synchronous AC servo motor |
||
Control system |
SBK4000 fully closed-loop control |
||
Profile illumination |
LED cold lighting,256 level programmable brightness adjustment |
||
Surface illumination |
4 rings 8 segments LED cold lighting with segmented independent control & 256 level programmable brightness adjustment |
||
Operated mode |
software + joystick |
||
Option device |
Renishaw MCP probe, Keyence laser measure probe |
||
Main Parts
CCD camera |
1.3M pixel digital industrial color camera |
||||||
Optics lens |
6:5:1 continual zoom Auto GPS lens |
||||||
Surface illumination |
4 rings 8 segments LED cold lighting with segmented independent control & 256 level programmable brightness adjustment |
||||||
Profile illumination |
LED cold lighting, Parallel light, 256 level programmable, Brightness adjustment |
||||||
Liner guide |
Taiwan "Hiwin" SP grade linear guideway |
||||||
Linear encoder |
Glass linear scale resolution 1.0μm |
||||||
Probe(optional) |
Renishaw MCP probe, Keyence laser measure probe |
||||||
