Home > Products > Hardness Tester > SMV-1000Z Hardness Testing Machine Micro Vickers Hardness Tester

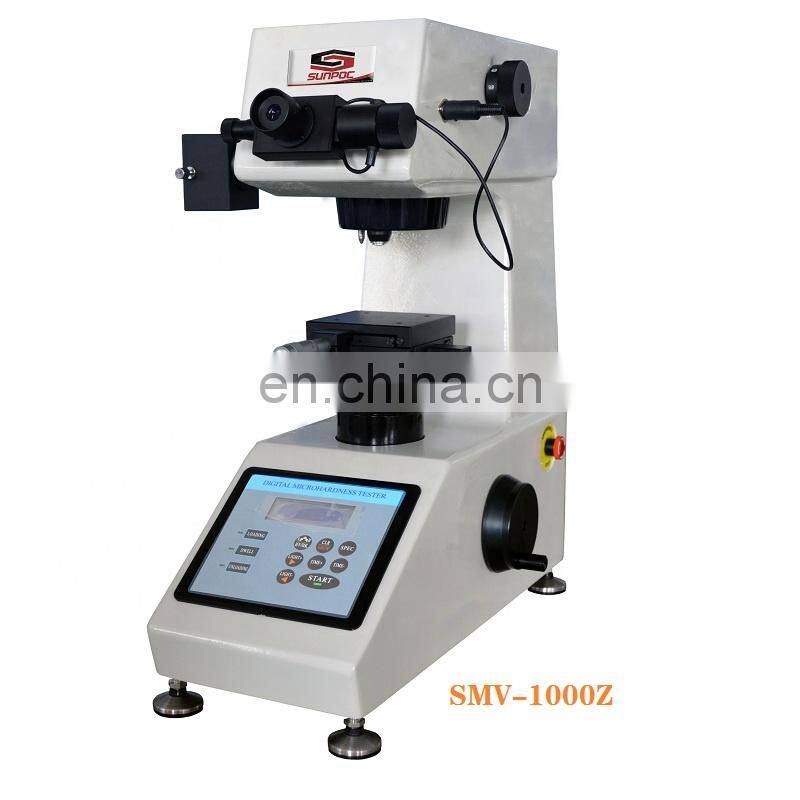

SMV-1000Z Hardness Testing Machine Micro Vickers Hardness Tester
- T/T Credit Card
You May Like
Product Description

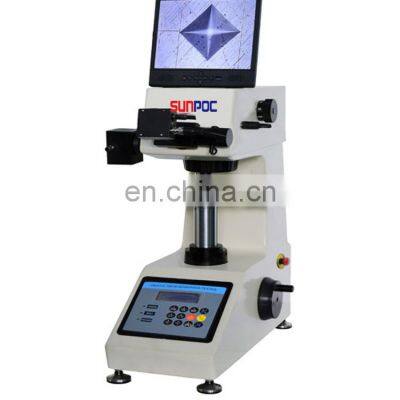

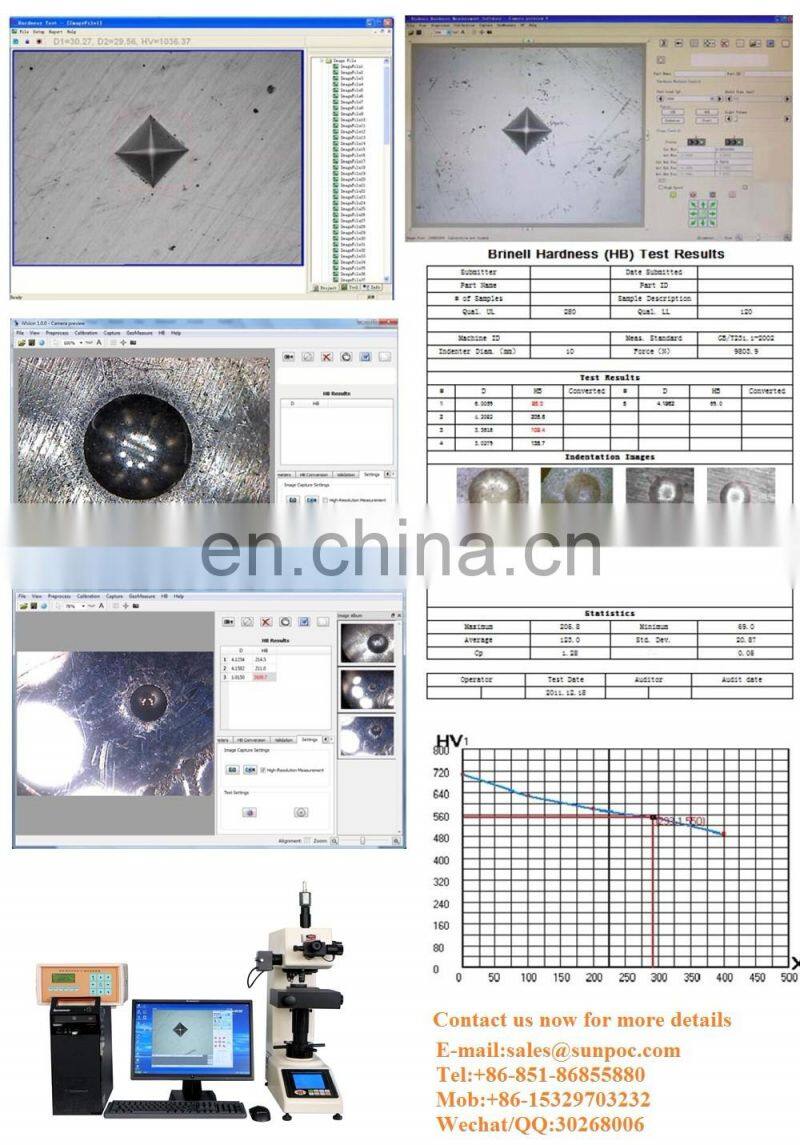

The micro vickers hardness tester adopts unique precision design on optics, mechanic and electrics features, make the indentation image clearer, and get more precise measurements. With manual measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly shows the test mode, test force, indentation length, dwell time, test numbers and conversion scale. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and show on the screen. It can use optional Knoop indenter to measure Knoop hardness. And it can be equipped with LCD video measuring device and CCD image automatic measuring system.
Prodcut Model | SMV1000Z | ||
Test force | gf:10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf | ||
N:0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N | |||
Test range | 1HV~2967HV | ||
Load Method | automatic (loading/dwell/unloading) | ||
Turret between objective and indenter | manual | automatic | |
Conversion scale | HK, HRA, HRB, HRC, HRD, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW | ||
Objective | 10× (view), 40× (measure) | ||
Eyepiece | 10× | ||
Total magnification | 100× , 400× | ||
Resolution | 0.0625μm | ||
Dwell time | 0~60s | ||
Light source | halogen lamp | ||
X-Y test table | size: 100×100mm; travel: 25×25mm; resolution: 0.01mm | ||
Max. height of specimen | 100mm | ||
Throat | 98mm | ||
Power supply | AC220V,50Hz | ||
Dimension (LWH)mm | Machine size 480×325×545mm,packing size: 600×360×800mm | ||
Weight | Net Weight: 31kg,Gross Weight: 44kg | ||




Guizhou Sunpoc Tech Industry Co., LTD is committed to supply the customers with the highest quality products and solutions in materials testing and science research. Our quality products are used in a wide range of industries like civil and military. Being a professional manufacturer and exporter in the field of quality test instruments, Sunpoc dedicated to materials and specimen testing industries for 15 years and gained high reputation from our customers all over the world. Sunpoc continuously reviews and updates our product and service to macth the need of our clients with the advanced technologies.






Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, how to use the machine.
* Engineers available to service machinery overseas.
*12 Months Products hard ware warranty.
