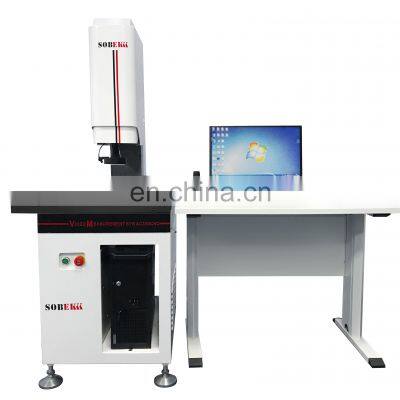

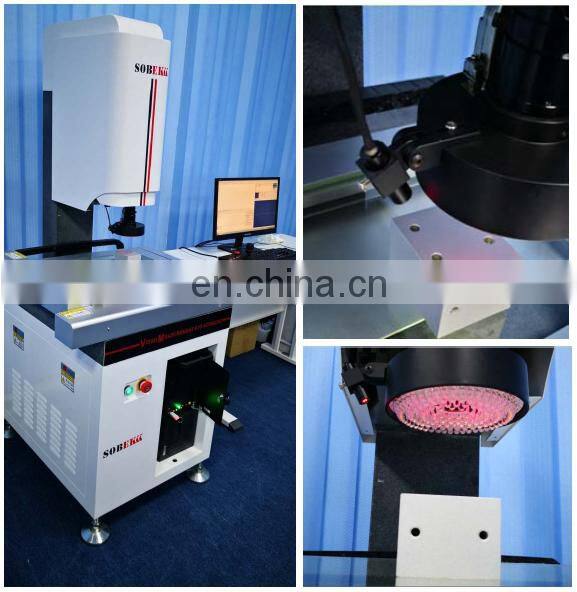

2.5D AutoVision Automatic Video Measuring System
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Selling 3D Metal Workpiece Automatic Video Measuring MachineNegotiableMOQ: 1 -
SOBEKK A300-CNC Optical 3D Automatic Coordinate Measuring MachineNegotiableMOQ: 1
-
SOBEKK E300 Optical 2.5 D Manual Coordinate Measuring MachineNegotiableMOQ: 1
-
SOBEKK E-Series Manual Vision Measuring SystemNegotiableMOQ: 1
-
SOBEKK AC-CNC Economic Automatic Vision Measuring SystemNegotiableMOQ: 1
Feature & Specifion
Product Features
Imported key components with rigorous, normative assembling & adjustment
3-axis CNC controls, full-automatic Measurement
Equipped with high-definition detent Lens
High-definition frame grabber
Precision "HIWIN" P level linear guideway & V type cross roller guideway; high-precision linear drive screw rod made by Germany
High-accuracy linear scale with resolution of 1μm
Product Specification
Model |
AC300-CNC
|
AC400-CNC
|
AC500-CNC
|
||
Measuring range(mm) |
300*200*180 |
400*300*180 |
500*400*180 |
||
Machine size(mm) |
850*1300*1550 |
1000*1400*1550 |
1200*1500*1550 |
||
Weight(kg) |
260 |
350 |
450 |
||
Max. load(kg) |
20 |
25 |
25 |
||
Accuracy of X-Y axis |
3+L/200μm |
||||
Accuracy of Z axis |
5+L/200μm |
||||
XYZ resolution |
1.0μm |
||||
Repeatability(mm) |
0.003 |
||||
Linear encoder |
glass linear scale |
||||
Moving speed(mm/s) |
X-Y:200 Z:100 |
||||
Camera type |
1.3MP digital color CCD |
||||
Liner guide |
Z axis:"Hiwin" P liner guideway, XY use "V" type liner guideway |
||||
Screw rod |
Z axis:"TBI" ground ball screw rod, XY use normal screw rod |
||||
Optics |
6:5:1 contiual zoom step lens |
||||
Magnification |
Optics zoom ratio:0.7-4.5X; image zoom ratio:24-158X |
||||
Software |
SBK-CNC full-automatic measuring software(simply versions) |
||||
Control System |
SBK4000 fully closed-loop control |
||||
Profile illumination |
LED cold lighting, 256 level programmable brightness adjustment |
||||
Surface illumination |
4 rings and 8 segments LED cold lighting with segmented independent control & 256 level programmable brightness adjustment |
||||
Motor |
China "Tiger" synchronous AC servo motor |
||||
Operated mode |
Software, can option standard CNC software with "Joystick" |
||||
Option device |
Renishaw probe, Auto zoon GPS lens, standard CNC software, joystick |
||||

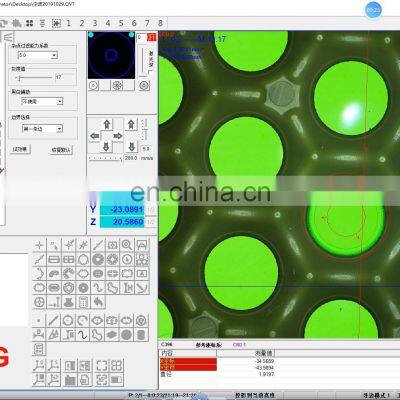

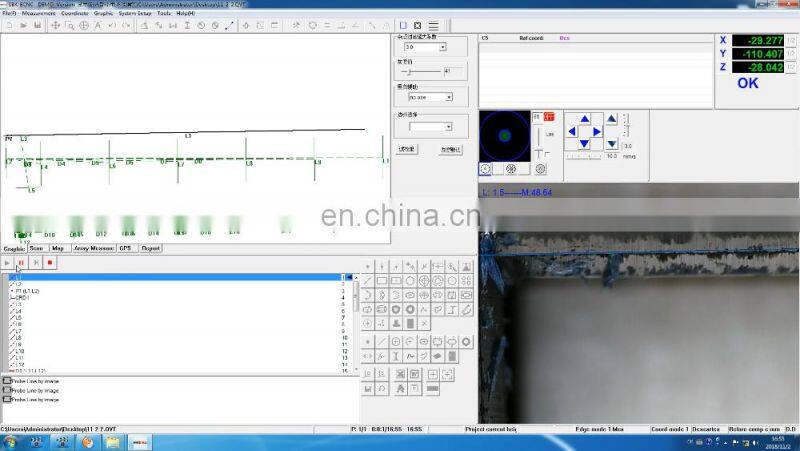

Software Interface

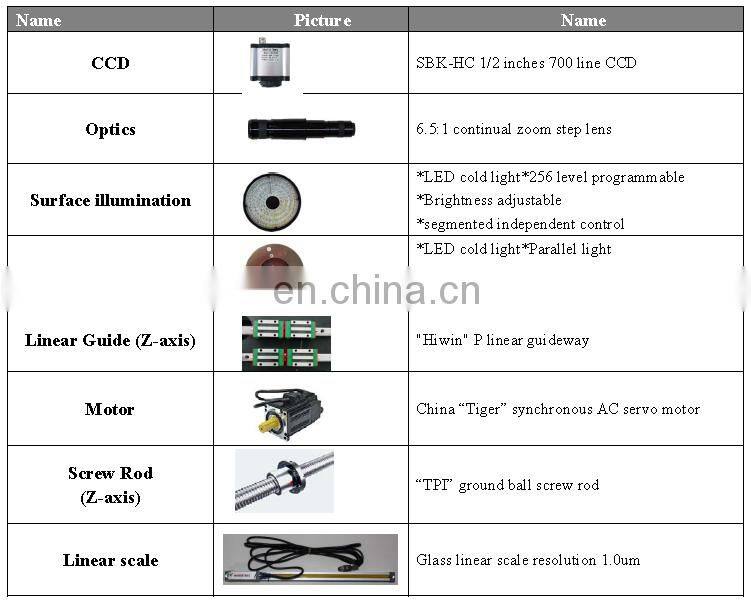

Main Parts

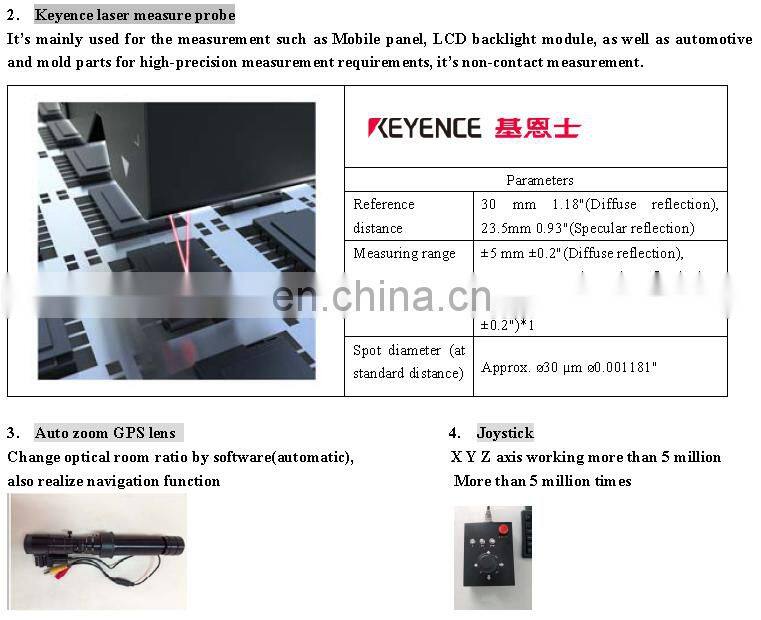

Optional Parts
Certifications
Company & Customer
As the branch of SUNPOC group, SOBEKK Precison Instrument is a professional manufacturer for video measuring machine from China with more than 15 years experience, we are made up of 1 factory, 6 after sales service centers, 1R&R center and 1 foreign sales department. we meet the standard of ISO9001,products with CE certificate. now we are service the customers from more than 30 countries and regions . such as :USA, Poland, Hungary, Korea, Vietnam, Thailand, Malaysia ...
Company Goal: to be the most stable supplier for video measuring machine in China
Packing & Delivery
FAQ
Q:What's your company specialized in?
A: We are specialized in video measuring machine,coordinate measuring machine,profile projector , microscope , material test machine
Q: How about the warranty?
A: 12 months. Our quality is quite steady, please have a rest assured.
Q: Do you accept OEM?
A: Yes, OEM is welcome;
Q: How about the shipping?
A: by sea, by air or by Express couriers etc.
Q:. What about the payment?
A: T/T(Telegraphic Transfer),western union, paypal will be acceptable.
Q: How to choose the appropriate test instrument?
A:Please advise what data you need to get through testing, then our team will suggest you the best solutions asap.
Q:How about the service for installation and training?
A: The operating instructions or video instructions will be provided. If you are near our local agent, the spot service can be
arranged.Usually we will send our engineer for overseas spot service to finish installation and operation training, that we will take extra cost like air-tickets and accommodation.
