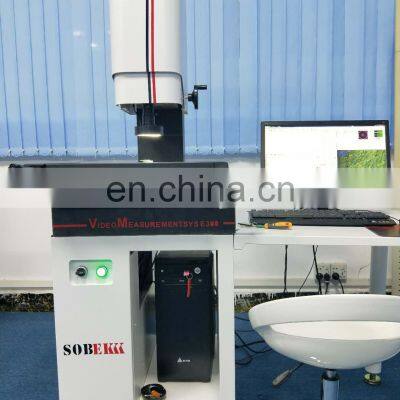

Help CenterLow Cost High Accuracy 2D 3D Manual Video Measuring Machine Vision Measuring System Optical Measuring Instrument
Related Products
-
E300 2D 3D Optical Measuring InstrumentNegotiableMOQ: 1 -
Instant One Click Button Video Measuring MachineNegotiableMOQ: 1
-
SOBEKK AZ400 A-CNC Series High Precision 3D Automatic Video Measuring MachineNegotiableMOQ: 1
-
SOBEKK AG400 A-CNC Series High Precision 3D Automatic Video Measuring MachineNegotiableMOQ: 1
-
SOBEKK AZ300 A-CNC Series High Precision 3D Automatic Video Measuring MachineNegotiableMOQ: 1
Features
1) "HIWIN" P level linear guideway and precision cross roller guideway for increased accuracy & working life
2) Integrated granite base and column ensures machine stability.
3) Supplied with SBK-E multifunctional 2.5D measuring software, automatic edge detection and vision height
measurement function.
4) Supplied with removable & dismountable console support table
5) High-definition detent step zoom lens and high-resolution CCD performs high-definition measurement.
6) Supports different file formats of data output such as Word, Excel, CAD etc. DXF import for quick inspection
Specification
Model |
E200 |
E300 |
E400 |
E500 |
|||
Measuring range(mm) |
200*100*200 |
300*200*200 |
400*300*200 |
500*400*200 |
|||
Machine size(mm) |
750*1300*1500 |
750*1300*1500 |
900*1400*1500 |
1100*1125*1650 |
|||
Weight(kg) |
300 |
300 |
400 |
530 |
|||
Max load(kg) |
20 |
25 |
25 |
30 |
|||
Accuracy of X-Y axis |
3+L/200µm |
||||||
Accuracy of Z axis |
5+L/200µm |
||||||
XYZ resolution |
1.0μm |
||||||
Repeatability(mm) |
0.003 |
||||||
Magnification |
Optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X |
||||||
Control system |
SBK3000 control box, USB port, adjustable light |
||||||
Operated mode |

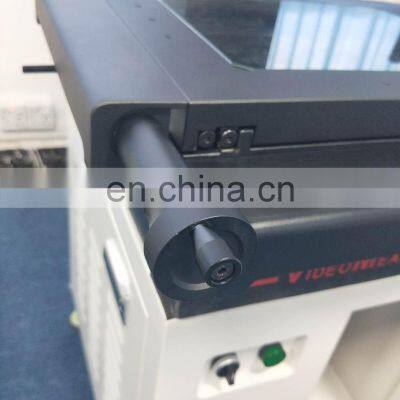

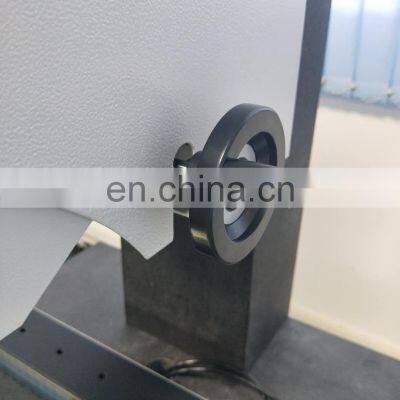

Handle wheel |
||||||
Software Interface
As the branch of SUNPOC group, SOBEKK Precison Instrument is a professional manufacturer for video measuring machine from China with more than 15 years experience, we are made up of 1 factory, 6 after sales service centers, 1R&R center and 1 foreign sales department. we meet the standard of ISO9001,products with CE certificate. now we are service the customers from more than 30 countries and regions . such as :USA, Poland, Hungary, Korea, Vietnam, Thailand, Malaysia ...
Company Goal: to be the most stable supplier for video measuring machine in China
