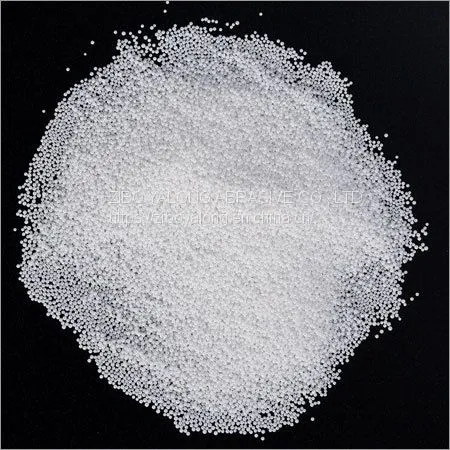

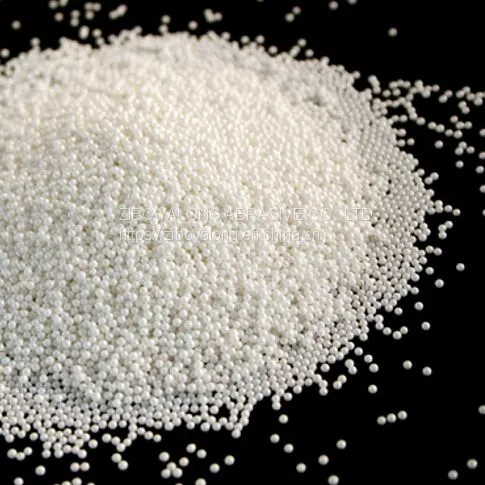

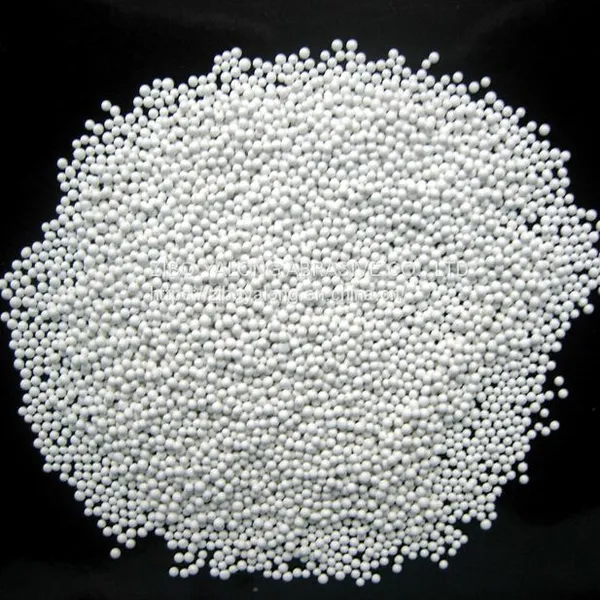

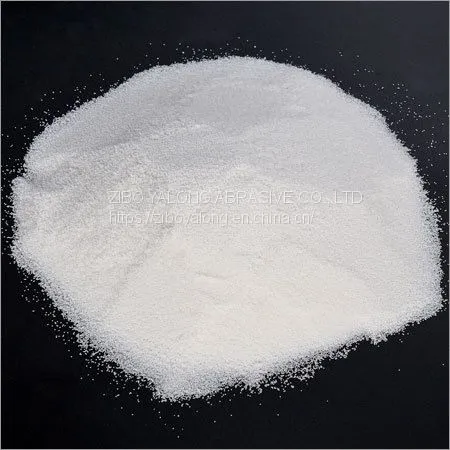

Ceramic Blasting & Peening Media 65 Zirconia Silicate Beads
Ceramic Blasting & Peening Media
Ceramic Blasting Media
Ceramic Peening Media
Ceramic Beads
Ceramic bead is a spherical blasting and peening media produced by the fusion of oxides at a very high temperature. Ceramic bead is extremely tough, high impact properties coupled with good hardness, ensuring consistent peening intensities and surface finishes.
Application
Removal of carbon deposits and other impurities from glass making and rubber tire moulds, without damaging the surface or critical edges
Deburring thin gaskets
Shot peening ferrous and non ferous items includidng aircraft engine blades, turbines etc. Internal and external thread peening
Cleaning, sanitizing and surface finishing of fabricated stainless steel items for food and pharmaceutical industries. Medical implant and instrument surface finishing
Ceramic beads can be used in Air Blast and Wet Blast system plus Turbine Shot Blast equipment.
Technical Specification
Items |
Specification |
Composition wt% |
60-65% ZrO2 |
Bulk Density Kg/L |
2.6-2.7(Φ2mm) |
Specific Density g/cm3 |
4.0-4.1 |
Hardness Moh’s |
>8.5 |
Elastic modulus GPa |
200 |
Thermal Conductivity W/m.K |
3 |
Fracture Toughness MPam1-2 |
7 |
Grain size µm |
≤0.5 |
Thermal expansion |
9.6 |
Available Size:
ø 0.2-0.4mm |
ø 0.4-0.6mm |
ø 0.6-0.8mm |
ø 0.8-1.0mm |
ø 1.0-1.2mm |
ø 1.2-1.4mm |
ø 1.4-1.6mm |
ø 1.5-2.0mm |
ø 2.0-2.5mm |
ø 2.5-3.0mm |
ø 3.0-3.5mm |
ø 4mm |
ø 5mm |
ø 8mm |
ø 10mm |
Other size can be customized
