Product introduction

YWZ-127 series Oil Level Gauges

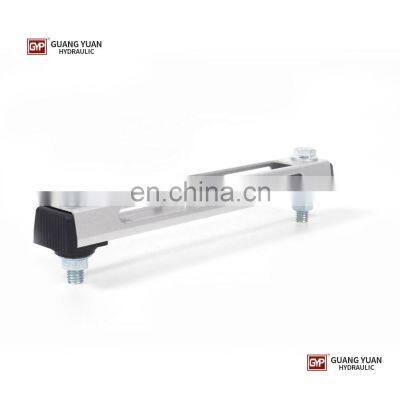

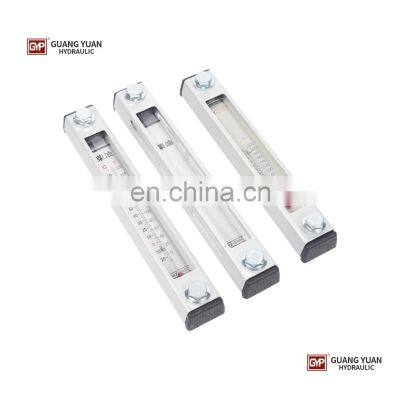

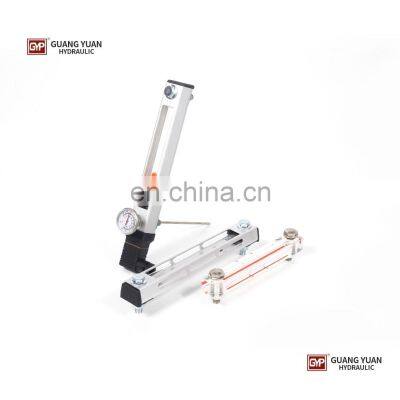

GY oil level gauges consist of a robust metal housing equipped with a sight level tube and built-in thermometer. The fluid enters the thermometer chamber through the mountingbolts, which are hollow. O-rings provide a seal against the housing and the reservoir wall.
Special features
› The robust metal housing is designed to withstand even the most severe operating conditions. › The integrated aluminum scale comes with MIN-/MAX marking and a glass thermometer, showing the oil temperature in °C and °F.
Specification
For the convenience of your selection and purchase, the above is the introduction of the product and size.
Model
size(MM)
L
E
B
YWZ - 76
108
76
37
YWZ-76T
YWZ-80
112
80
42
YWZ-80T
YWZ-100
132
100
62
YWZ-100T
YWZ-125
157
125
87
YWZ-125T
YWZ-127
159
127
89
YWZ-127T
YWZ-150
182
150
112
YWZ-150T
YWZ-160
192
160
122
YWZ-160T
YWZ-200
232
200
162
YWZ-200T
YWZ-250
282
250
212
YWZ-250T
YWZ-254
286
254
216
YWZ-254T
YWZ-300
332
300
262
YWZ-300T
YWZ-350
382
350
312
YWZ-350T
YWZ-400
432
400
362
YWZ-400T
YWZ-450
482
450
412
YWZ-450T
YWZ-500
532
500
462
YWZ-500T
FAQ
Q1：payment term
By T/T, 30% as deposit, the balance should be paid before shipment.

Q2;Production time
50days as 1st order, repeat order 40days
