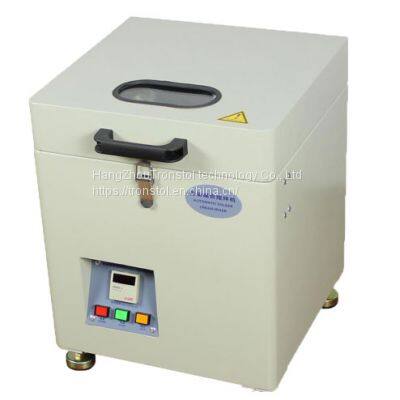

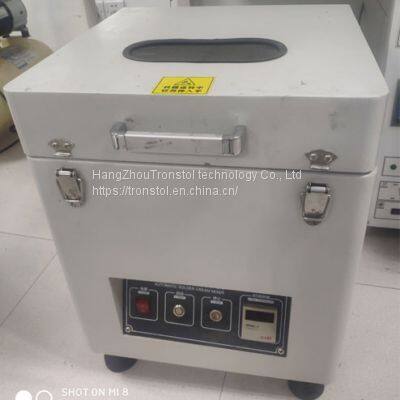

Solder Paste Mixer
- 10000 Set / Sets per Month
- T/T
- 3 days
Product Details
Brand Name: | TRONSTOL |
Product Description
The automatic SMT solder paste mixer machine uses the revolution to generate centrifugal force, and the force generated by the rotation at an angle of 45 degrees with the revolution axis makes the solder paste at the upper end of the tank continuously move downwards, while the solder paste at the bottom of the tank moves from the periphery to the top of the tank.
Specification of Solder Paste Mixer
Model | Solder paste mixer |
Speed | Motor speed:1350RPM |
One revolution:400RPM;Second rotation:300RPM | |
Capacity | 0-1000 g*2 cans |
Can accept solder paste cans | DiameterΦ60-Φ67 Standard(Suitable for general 500g solder paste cans) |
Time setting | 0.01s~99H99s, Minute and the second setting |
Display method | LED |
Peak Power(KW) | 60W |
Input Voltage(V) | AC 220V±10% 50Hz |
Dimension | L400*W400*H500mm |
Packing size | 520*520*580mm |
Net weight | 45kg |
Gross weight | 50KG |
Features of Solder Paste Mixer
The solder mixer uses the revolution to generate centrifugal force, and the force generated by the rotation at an angle of 45 degrees with the revolution axis makes the solder paste at the upper end of the tank continuously move downwards, while the solder paste at the bottom of the tank moves from the periphery to the top of the tank. Forming a whirlwind funnel-shaped stirring action, which can smoothly stir and soften the solder paste, defoam and reach an appropriate viscosity. After stirring, the solder paste has good wettability, uniform diffusion, excellent printing effect, and achieves the best flux performance during welding. Its characteristics are as follows:
Special control circuit, adjustable mixing time, convenient operation.
The solder paste is placed at 45 degrees and rotates along the axis of the axis so that the solder paste will not adhere to the can lid.
Stable operation, low noise, with the effect of natural temperature recovery and clear air bubbles during the mixing process.
The solder paste tank does not need to open the lid, it is convenient and safe to take and place.
With safety devices to ensure personal safety.
TronStol is a professional smt equipment suppliers, we provide smt printer, automatic solder paste printer, smt solder paste printer, pcb pick and place machine and etc. Want to know solder paste mixer price or more about TronStol , contact us.
