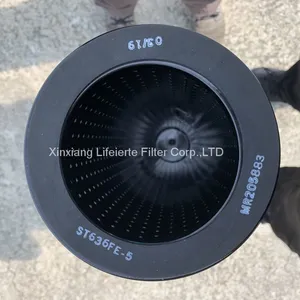

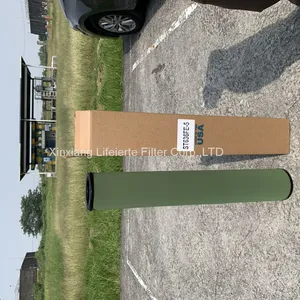

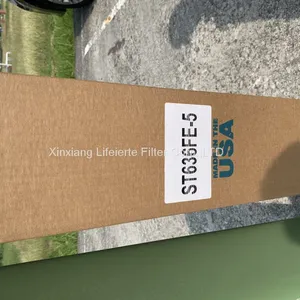

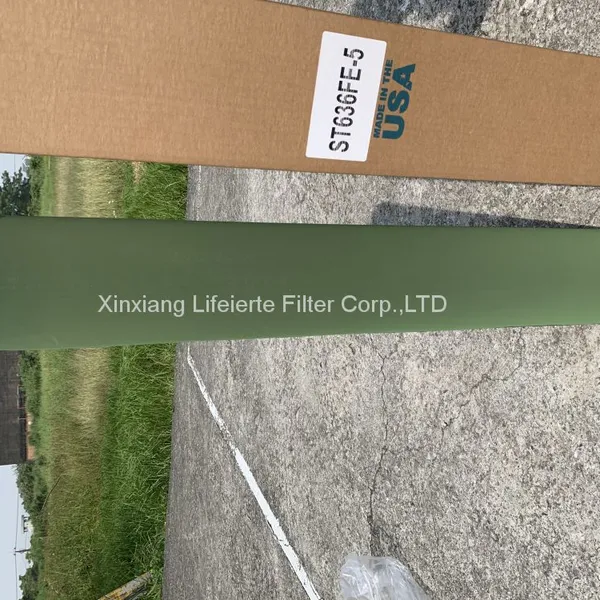

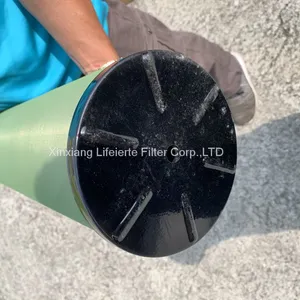

Separator Cartridge SS614FD

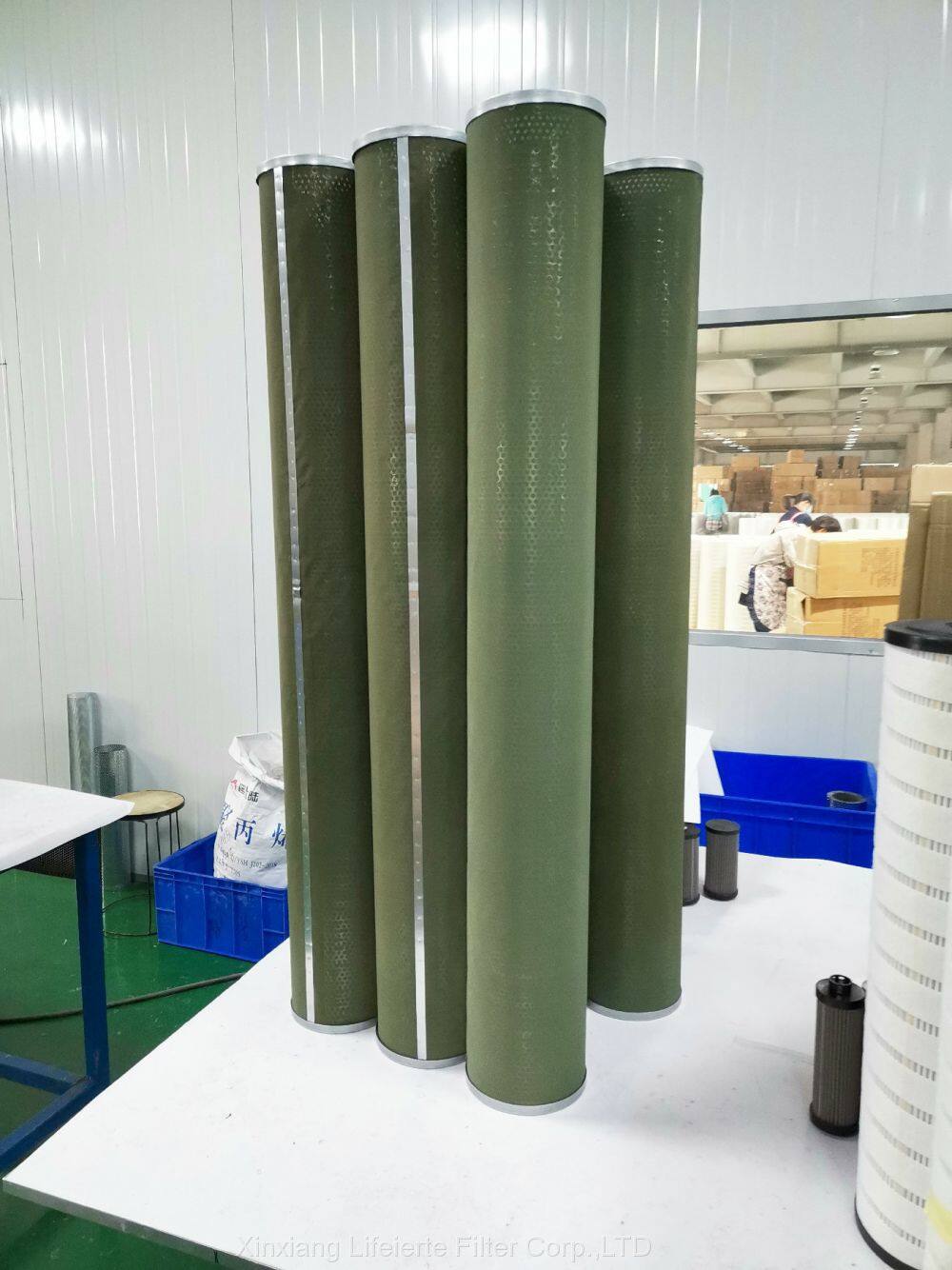

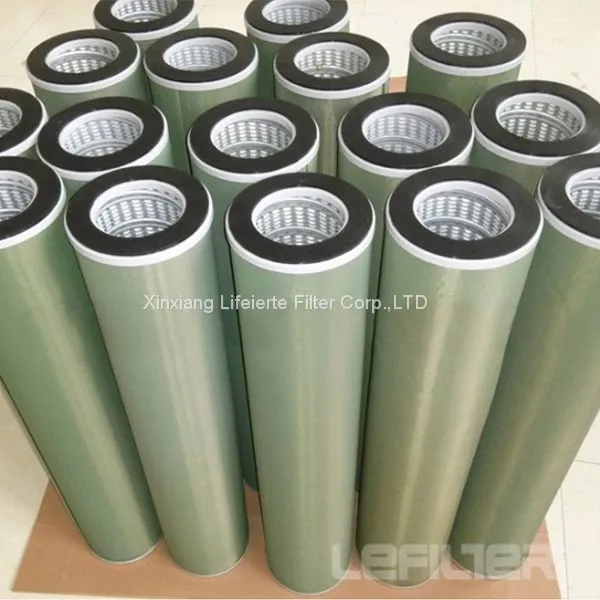

The SS-5 series synthetic material separator filter cartridges utilize a special hydrophobic treatment medium, which can separate fine water droplets more effectively than standard filter screens, forming a water barrier. They are washable and reusable. All metal parts are corrosion-resistant. Equipped with a balanced flow guide shield, it ensures uniform fluid distribution within the filter cartridge.
Materials:
Synthetic mesh or Teflon coated screen
Treated metal components for corrosion protection
Buna-N gaskets
Other gasket, adhesive and metal materials are available on request
Technical Specifications
Seal Material:Buna-N
Micron Rating (µm):0.3
Certificates:N/A
Filter Construction:Fiberglass
Application:Aviation and Industrial
End Cap Configuration:Threaded Base
Length (inch):33
Inside Diameter (inch):3.5
Outside Diameter (inch):6
Filter Type:Coalescer
Maximum Operating Temperature:66-71 °C, 150-160 °F
Maximum Pressure Differential:75 psi, 5.2 bar
Changeout Pressure Differential:15 psi, 1 bar
pH Range:Continuous Operation: 5 - 9
Flow Rate:Depends on fluid viscosity and application. See brochure for more information.
Application:Aviation & Industria
