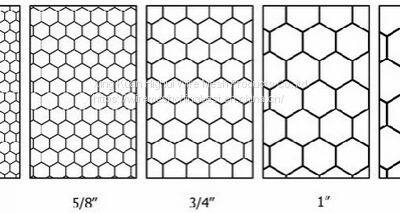

Dimensions of hexagonal mesh:
Mesh :
| Galvanized hexagonal wire netting in normal twist (In 5m-100m roll, width of 0.5m-2.0m) | ||
| Mesh | Wire Gauge (BWG) | |
| Inch | mm | |
| 3/8" | 10mm | 27, 26, 25, 24, 23, 22, 21 |
| 1/2" | 13mm | 25, 24, 23, 22, 21, 20 |
| 5/8" | 16mm | 27, 26, 25, 24, 23, 22 |
| 3/4" | 20mm | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25mm | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 32mm | 22, 21, 20, 19, 18 |
| 1-1/2" | 40mm | 22, 21, 20, 19, 18, 17 |
| 2" | 50mm | 22, 21, 20, 19, 18, 17, 16, 15, 14 |
| 3" | 75mm | 21, 20, 19, 18, 17, 16, 15, 14 |
| 4" | 100mm | 17, 16, 15, 14 |
| Chicken wire, Galvanized hex. wire netting in reverse twist (width 0.5M-2.0M) | ||||
| Mesh | Wire Gauge(BWG) | Reinforcement | ||
| Inch | mm | (BWG) | Width(ft) | Strand |
| 1" | 25mm | 22,21,20,18 | 2' | 1 |
| 1-1/4" | 32mm | 22,21,20,18 | 3' | 2 |
| 1-1/2" | 40mm | 20,19,18 | 4' | 3 |
| 2" | 50mm | 20,19,18 | 5' | 4 |
| 3" | 75mm | 20,19,18 | ||
Applications :

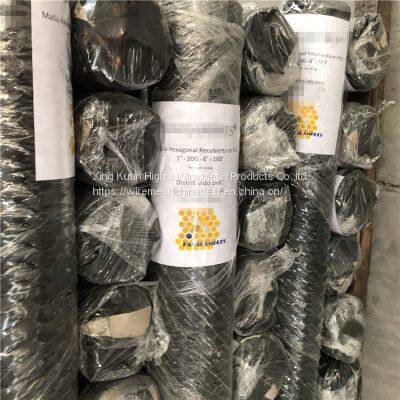

Packing :
