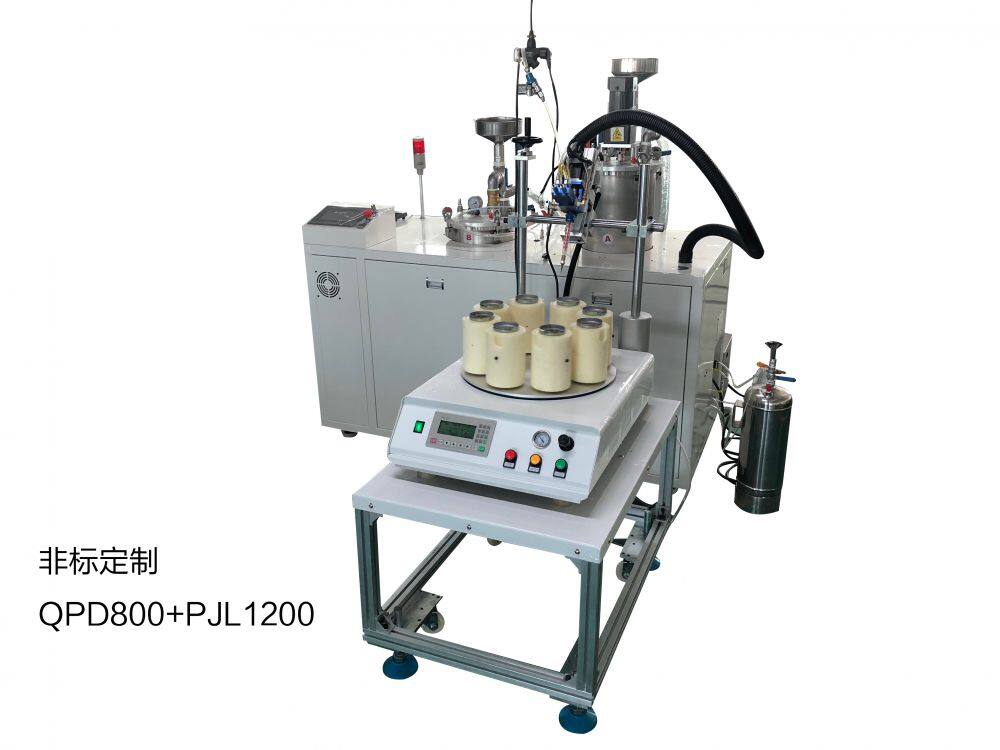

AB Two Compounds Filter End Cap Gluing Machine
The turning table speed and gluing speed can be adjusted freely according to the filter cap sizes. And its gluing amount is evenly and correctly.
This machine equips the step motor control system, which is fast speed gluing and short return time.
The compounds tank has the function of heat mixing, and the machine has its circulation system, to prevent the material precipitation.
The pipes has self temp-limited heating, to ensure the gluing amount stably.
The gluing head has the anti-curing alarm functions, self-test alarm functions and maintenance and repair guidance system as well.
Monitor and PLC control system, which is easy operation.

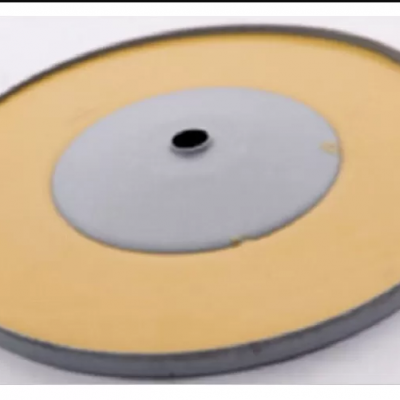

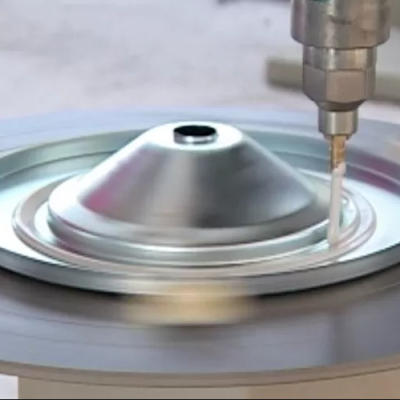

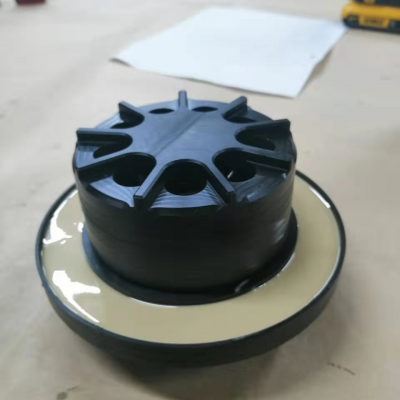

This professional designed machine is used for pouring A.B two parts on the air filter end caps.
Automatic glue mixing and dispenser machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio of glue. The glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pump, supply to a mixing device fully mixing, and then potting/dispensing the desired products.
II.Main Function:
1.Automatic metering and mixing
2.Manual Gluing
3.Auto alarm for lack of material or full material
4.Gluing ratio and quantity adjustable
5.Auto cleaning
6.Glue tank Vacuum Defoaming (Optional)
7.Glue barrels,metering pump,glue pipe can be heating (Optional)
III.Specification:
Model No: |
PGB700 |
Mixing Ratio |
100:100-10:100(1:1-1:10) Adjustable |
Metering precision |
±1% |
Outflow speed |
1g/sec-15g/sec |
Mixing precision |
±1% |
Mixing mode |
Dynamic mixing /Static mixing |
Glue Viscosity |
Lower than 20000 CPS(mPa·s) |
Control mode |
PLC + Touch Screen |
Control system |
Independent R&D |
Measuring mode |
Stepping motor/High-precision, wear-resistant,long-life Gear pump |
Working voltage |
AC 220V 50Hz/60Hz |
Power requirement |
3.55KW |
Air pressure requirement |
4.5-8KG |
Machine Dimension |
1500(L)*1200(W)*1500(H)mm |
Weight |
approx 260 KG |
Work environment |
Humidity: 20%~98%RH; Temperature: 0~+40°c |
Suitable Material: For waterproof, adhesive, fixed two-component adhesive.
Such as: Crystal or less additive glue --Silicone, epoxy, polyurethane(PU), etc.
Applications:LED products ,Crafts,Electronic components
Such as:Wall washer light, LED bar, LED strip, Ads module, Sensor, Photovoltaic module, Photovoltaic inverter .etc
IV:Application
