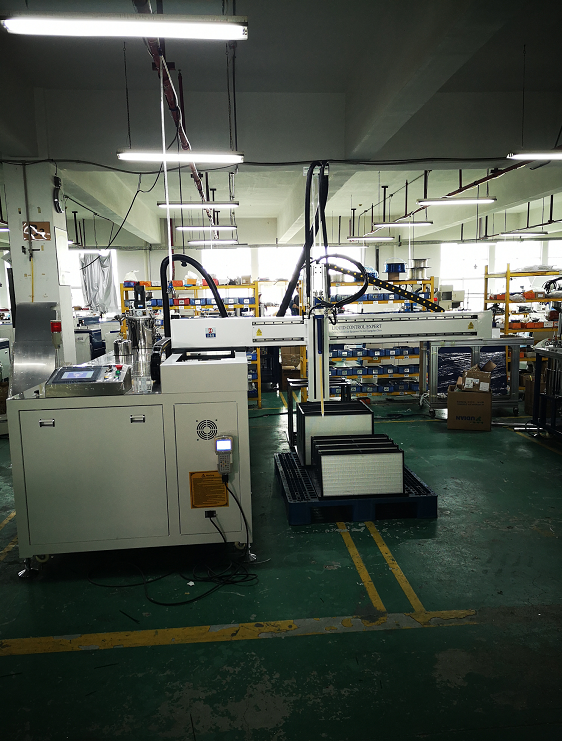

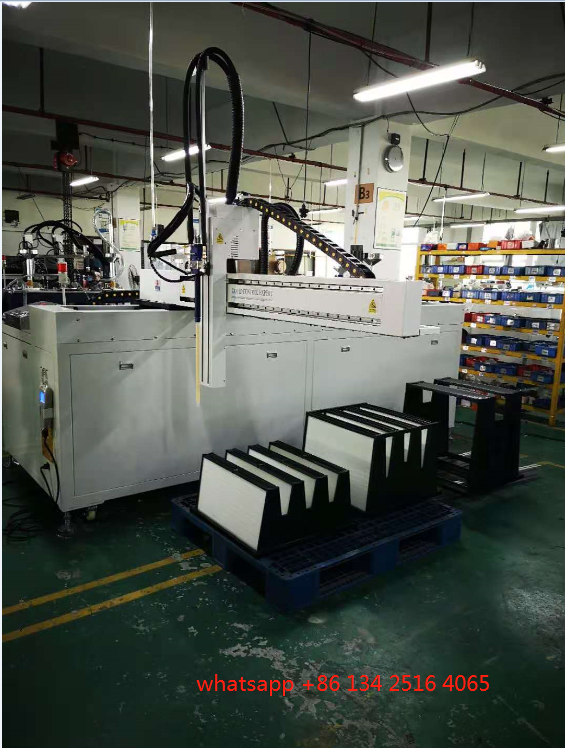

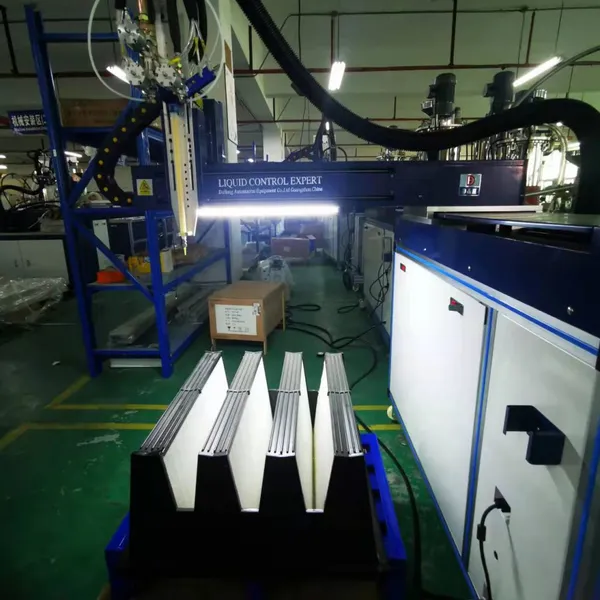

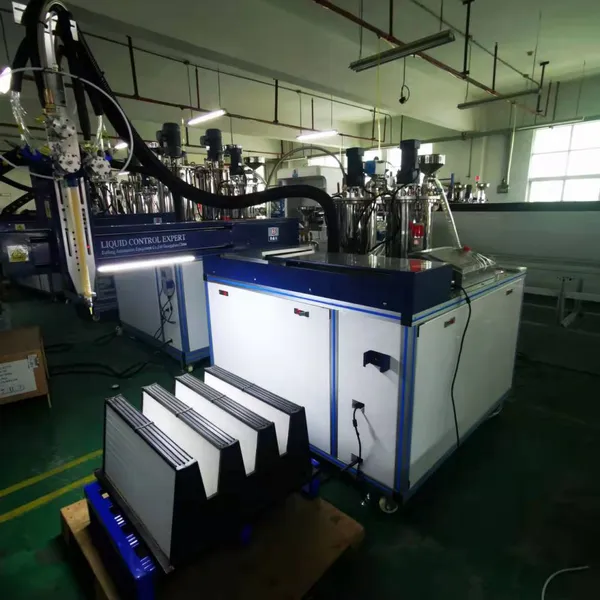

HEPA Air Filters Automatic Polyurethane Gluing Sealing MachineNegotiableMOQ: 1 Piece
Equipment Features:

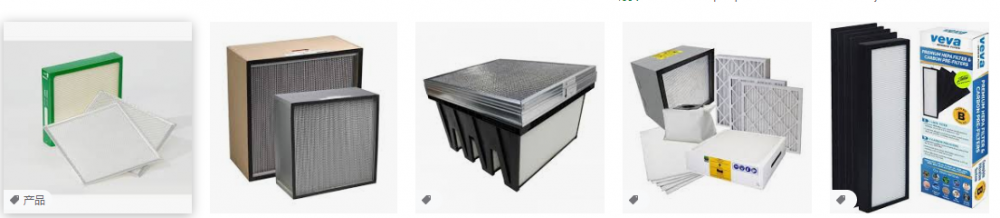

The equipment is dedicated to the casting of sealing for car air filter, industrial filter, air purifier;
High precision metering pump, accurate metering, random error within±0.5%;
High performance anti drooling mix device with flowback adjusting function,
accurate material output synchronization and even mix;
Fully automatic control of material injecting time, cleaning frequency, automatic cleaning flush and air purge;
Adopting PLC, touch screen man-machine interface, and servosystem to control casting, move as per preset track, accurate positioning, which can meet the production need of round, rectangle, and special irregular shape items, high production efficiency, stable performance.
Additional functions optional: remote control, automatic feeding, high viscosity feeding pump, automatic cycle during shutdown , mixing head water flush, etc.;
Nowadays a modern production without two-component materials is unimaginable. Particularly in the automotive industry, the electronics industry and the field of solar technology. But there is an increasing use of adhesives, sealants, fillers and insulation comprising two components (resin and curing agent), too. For example in the production of led light encapsulation, electronic part potting, filter, lable stickers, articles of daily use and even clothes.
Only when the two components are mixed in the correct ratio they cure and achieve their ultimate strength. At the time they are about to be used at the production site. The primary goal for the optimum automation of such applications is not only dosing precision or dispensing precision. But also strict adherence to the mixing ratio. With our special mixing head from our metering components we ensure that the exact mixing ratio is retained from the very start to the very end of the dosing procedure. Even where very small quantities are concerned.
I.Machine description and working principle
Automatic glue mixing and dispenser machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio of glue. The glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pump, supply to a mixing device fully mixing, and then potting/dispensing the desired products.
II.Main Function:
1.Automatic metering and mixing
2.Manual Gluing
3.Auto alarm for lack of material or full material
4.Gluing ratio and quantity adjustable
5.Auto cleaning
6.Glue tank Vacuum Defoaming (Optional)
7.Glue barrels,metering pump,glue pipe can be heating (Optional)
III.Specification:
Model No: |
PGB200 |
Mixing Ratio |
100:100-10:100(1:1-1:10) Adjustable |
Metering precision |
±1% |
Outflow speed |
1g/sec-15g/sec |
Mixing precision |
±1% |
Mixing mode |
Dynamic mixing /Static mixing |
Glue Viscosity |
Lower than 20000 CPS(mPa·s) |
Control mode |
PLC + Touch Screen |
Control system |
Independent R&D |
Measuring mode |
Stepping motor/High-precision, wear-resistant,long-life Gear pump |
Working voltage |
AC 220V 50Hz/60Hz |
Power requirement |
3.55KW |
Air pressure requirement |
4.5-8KG |
Machine Dimension |
1500(L)*1200(W)*1500(H)mm |
Weight |
approx 260 KG |
Work environment |
Humidity: 20%~98%RH; Temperature: 0~+40°c |
Suitable Material: For waterproof, adhesive, fixed two-component adhesive.
Such as: Crystal or less additive glue --Silicone, epoxy, polyurethane(PU), etc.
Applications:LED products ,Crafts,Electronic components
Such as:Wall washer light, LED bar, LED strip, Ads module, Sensor, Photovoltaic module, Photovoltaic inverter .etc
IV:Application
Please contact with me
