Thin-wall Bearing RA10008 Slewing Bearing Cross Roller Bearing

Thin-wall Bearing RA10008 Slewing Bearing Cross Roller Bearing thumbnail-1
Thin-wall Bearing RA10008 Slewing Bearing Cross Roller Bearing thumbnail-2
Thin-wall Bearing RA10008 Slewing Bearing Cross Roller Bearing thumbnail-3
Thin-wall Bearing RA10008 Slewing Bearing Cross Roller Bearing thumbnail-4
Thin-wall Bearing RA10008 Slewing Bearing Cross Roller Bearing thumbnail-5
Thin-wall Bearing RA10008 Slewing Bearing Cross Roller Bearing photo-1

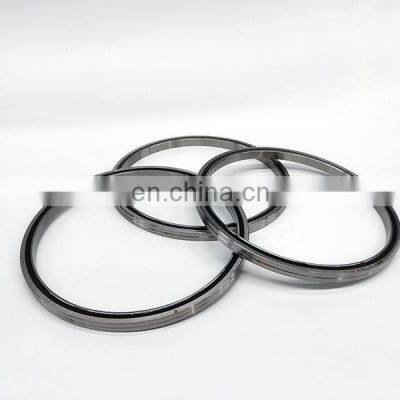

Thin-wall Bearing RA10008 Slewing Bearing Cross Roller Bearing photo-2

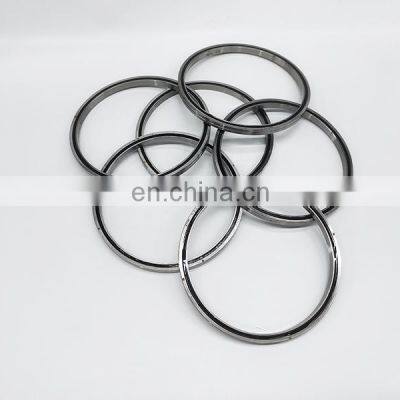

Thin-wall Bearing RA10008 Slewing Bearing Cross Roller Bearing photo-3

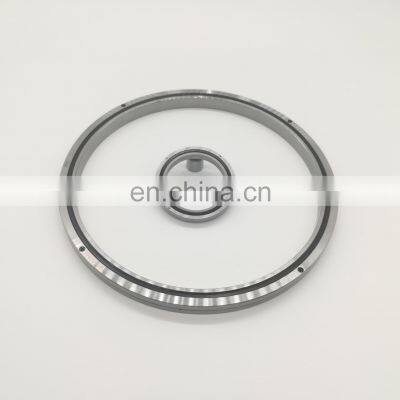

Thin-wall Bearing RA10008 Slewing Bearing Cross Roller Bearing photo-4

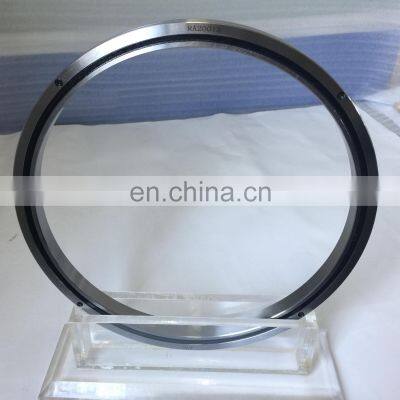

Thin-wall Bearing RA10008 Slewing Bearing Cross Roller Bearing photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2000
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Crossed Roller Bearings
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Description


Crossed roller bearings product description


BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner
and outer rings with high rigidity,because of its vertical arrangement of cylindrical rollers with
a 90°V groove through the separate spacers in the deep grooverolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and
moment loads.
Products Show
Product Paramenters
Shaft Diameter(mm)
Model
 number
Main dimensions(mm)

Weight(kg)
Inner ring(d)
Outer ring(D)
Width B B1
100
RA10008
100
116
8
0.14
110
RA11008
110
126
8
0.15
120
RA12008
120
136
8
0.17
130
RA13008
130
146
8
0.18
140
RA14008
140
156
8
0.19
150
RA15008
150
166
8
0.2
160
RA16013
160
186
13
0.59
170
RA17013
170
196
13
0.64
180
RA18013
180
206
13
0.68
190
RA19013
190
216
13
0.69
200
RA20013
200
226
13
0.71
Related products
Manufacturing Technique
Application Field
Product packaging

Plan01

Blister packaging

Plan02

Carton packaging

Plan03

Wooden case packing


Packaging & Shipping.


1. Industrial Neutral Packing,Package as your requirements.
2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton.
3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box.
4.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc.
Company Profile
Company Information
Luoyang BoYing Bearing Co., Ltd, (BYC) is a professional manufacturer of high precision bearings,The main products are Crossed roller bearings , YRT Rotary Table Bearings , Crossed Tapered Roller Bearings , Cylindrical Thrust Roller Bearing , Angular Contact Ball Bearings , Thin Section Bearings, Slewing Bearings , Ball Screw Bearings . The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for Robotics, Machine Tools, Rotary Table,medical equipment, measuring instruments ,mainly to replace the imported bearings. Also, we can design , choose and manufacture non-standard precision bearings as customer requested.
