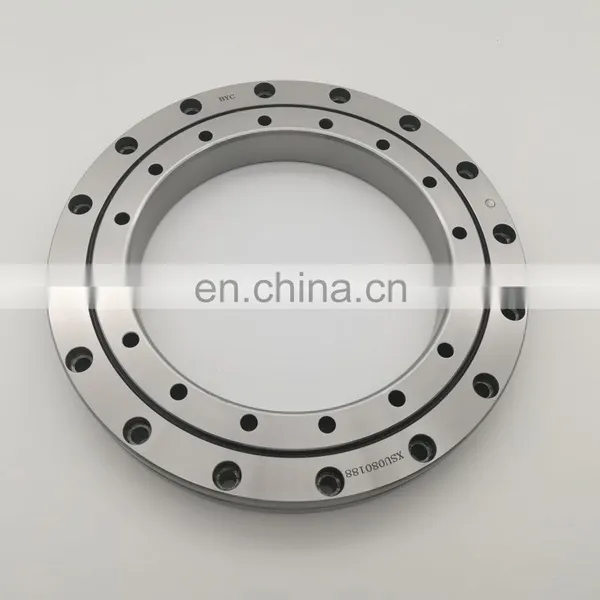

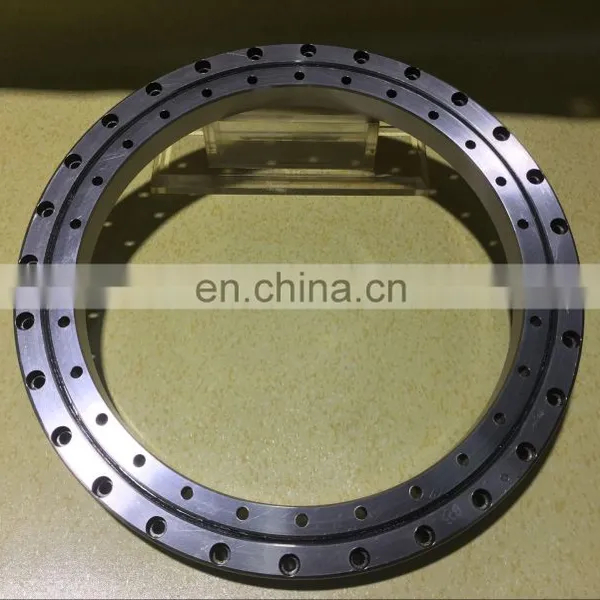

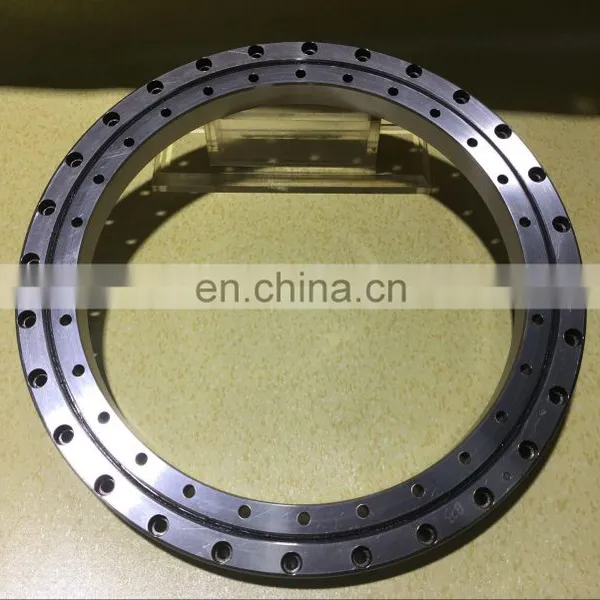

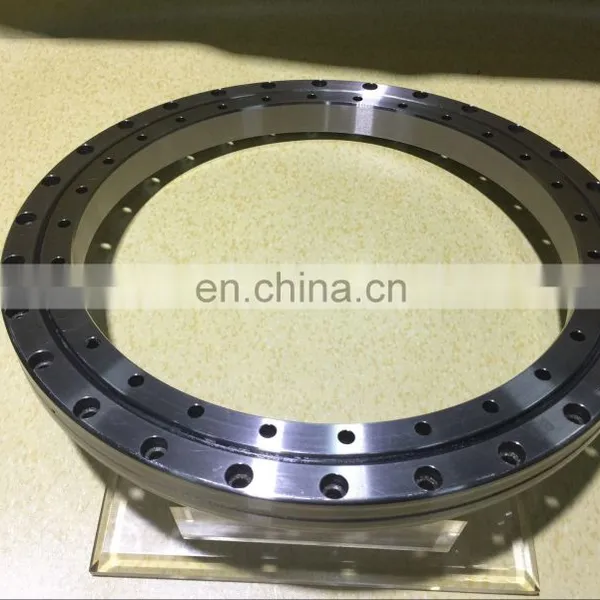

Cross Roller Bearing |thin Section Slewing Bearing XSU080318 Cylindrical Bearing photo-1
Cross Roller Bearing |thin Section Slewing Bearing XSU080318 Cylindrical Bearing photo-2
Cross Roller Bearing |thin Section Slewing Bearing XSU080318 Cylindrical Bearing photo-3
Cross Roller Bearing |thin Section Slewing Bearing XSU080318 Cylindrical Bearing photo-4
Cross Roller Bearing |thin Section Slewing Bearing XSU080318 Cylindrical Bearing photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2000
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Crossed Roller Bearings
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Description


Crossed roller bearings product description


BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.
Products Show
Product Paramenters
Shaft
diameter

Model number
Main dimensions (mm)

Weight (kg)
Inner ring(d)
Outer ring (D)
Width
130
XSU080168
130
205
25.4
3.3
150
XSU080188
150
225
25.4
3.7
180
XSU080218
180
225
25.4
4.3
220
XSU080258
220
295
25.4
5.1
280
XSU080318
280
355
25.4
6.3
360
XSU080398
360
435
25.4
7.8
344
XSU140414
344
484
56
28
474
XSU140544
474
614
56
38
574
XSU140644
574
714
56
44
674
XSU140744
674
814
56
52
774
XSU140844
774
914
56
60
874
XSU140944
874
1014
56
67
1024
XSU140094
1024
1164
56
77
Related products
Manufacturing Technique
Application Field
Product packaging

Plan01

Blister packaging

Plan02

Carton packaging

Plan03

Wooden case packing


Packaging & Shipping


1. Industrial Neutral Packing,Package as your requirements. 2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton 3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box 4.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc
Company Profile
Company Information

Luoyang BoYing Bearing Co., Ltd, (BYC) is a professional manufacturer of high precision bearings,The main products are Crossed roller bearings , YRT Rotary Table Bearings , Crossed Tapered Roller Bearings , Cylindrical Thrust Roller Bearing , Angular Contact Ball Bearings , Thin Section Bearings, Slewing Bearings , Ball Screw Bearings . The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for Robotics, Machine Tools, Rotary Table, medical equipment, measuring instruments ,mainly to replace the imported bearings. Also, we can design,choose and manufacture non-standard precision bearings as customer requested.
