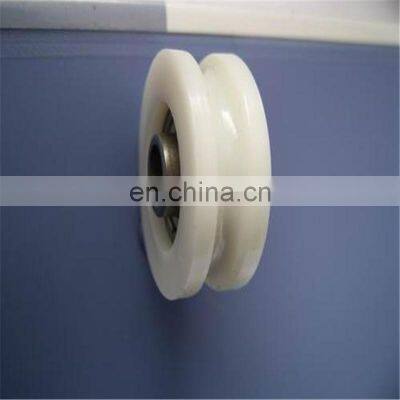

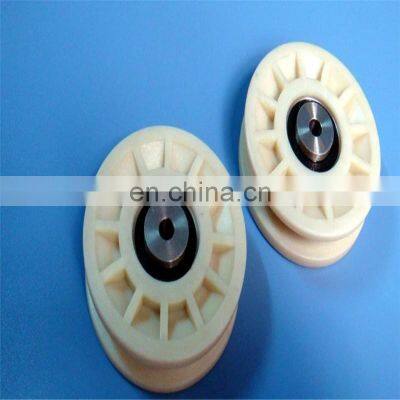

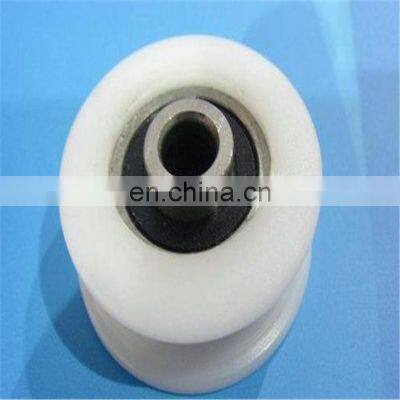

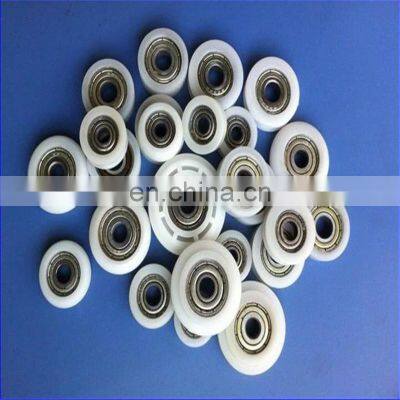

OEM custom drawing sheave pulleys injection molding type UHMWPE plastic pulley wheels
UHMW-PE (Ultra high Molecular Weight Polyethylene) is a thermoplastic engineering plastic with the average molecular weight more than 6.0 million. (PE only has the molecular weight between twenty to two hundred thousand.) This kind of material with five top performance of high-wear-resistance, good-chemical resistance, low-temperature resistance, self-lubrication and high-impact resistance, which is regarded as a surprised engineering plastic of excellent comprehensive capacity and competitive price.
UHMW PE pulley wheels Main characteristics:
1. Very high-wear resistance, seven times wear resistance than steel, four times than PTFE.
2. Very high anti-impact resistance, two times impact resistance than PC, five times than ABS.
3. Good self-lubrication, the same as PTFE, better than steel and brass appended lubricating oil.
4. Good anti-corrosion resistance, it has very stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.
5. Very high-inadhesion resistance, the surface of product hardly affixes other material.
6. Very high-impact resistance, ten times impact resistance than PA66, eight times than PTFE.
7. Good low temperature resistance, in liquefied nitrogen (- 196), it still has the prolongation.
few other materials can reach to this performance.
8. Non-toxic and clean property.
The Main Properties of UHMW PE pulley wheels property:
|
Property |
Item No. |
Unit |
Value |
|
|
Mechanical Properties |
1 |
Density |
g/cm3 |
0.94-0.96 |
|
2 |
average molecular weight |
g/mol |
More than 9.0 million |
|
|
3 |
Tensile strength (23°C in air) |
MPa |
22 |
|
|
4 |
Breaking strength |
MPa |
42 |
|
|
5 |
Tensile strain at break |
% |
600 |
|
|
6 |
Charpy impact strength (notched) |
mJ/mm2 |
No break |
|
|
7 |
Ball indentation hardness |
N/mm2 |
42 |
|
|
8 |
Shore D hardness |
-- |
D65 |
|
|
9 |
Abrading(sand slurry experiment) |
-- |
100 |
|
| Packaging Details: | uhmw pe pulley wheels package in wooden case, or wooden pallet |
| Delivery Detail: | 10-15days after deposit |
1.OEM service is welcome.
2.We will provide all the details to you during the mass production.
3.Customize your mould according to your need.
4.Your requirements and complaints are highly respected.
5.Necessary test and certification can be obtained as you request.
Dezhou Longya Rubber & Plastic Co.Ltd. is a modern hightech enterprise in the integration of R&D,production and market expansion of high performance engineering rubber and plastic products.Our products are widely used in food machinery,beer and beverage machinery,mining machinery,frozen machinery, paper machinery, building ceramic enterprises, solar manufacturing enterprises etc.We have a group of professional technicians ,and use advanced equipment,and operate under a complete scientific management system and test for quality.
Our company maintains dozens of numerical control devices,advanced molding integration production lines,and complete testing equipment .We manage every production chain scientifically.All of our products use environmental friendly material and is tested strictly from source material to production to delivery processes.Our company can produce various high challenging parts and was invited many times to improve machines and develop new type of parts according to customers’ requests; increasing the performance of machines,productivity and gained good reputations. Our products are widely sold in China and exported to Europe,America and Japan and so on.
Our main products:Ultrahigh molecular weight polyethylene chain guide, wearing strip, pipping cord,tube stock,bar, idler and various special-shaped products.Nylon, POM, ABS, LDPE and other engineering plastic products, stainless steel products, rubber products.
