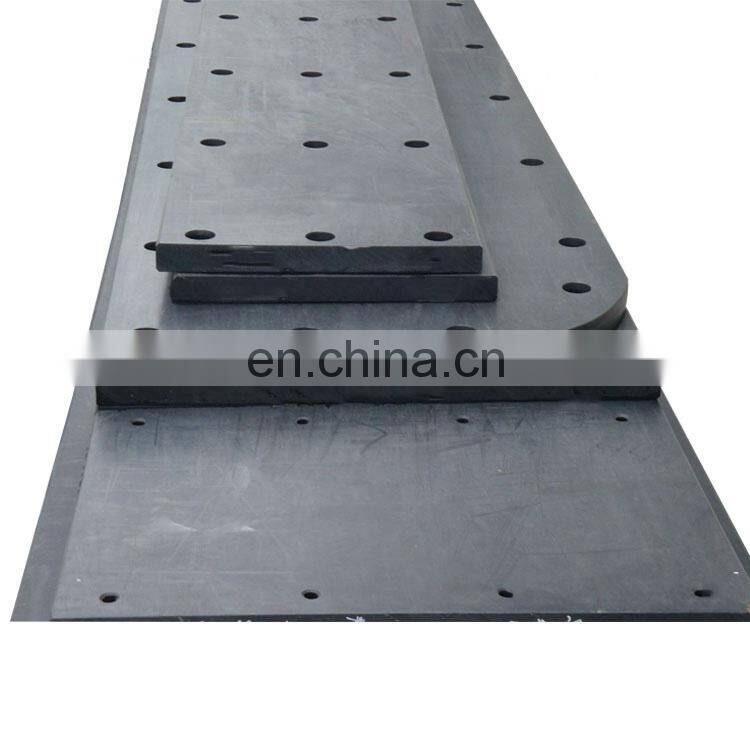

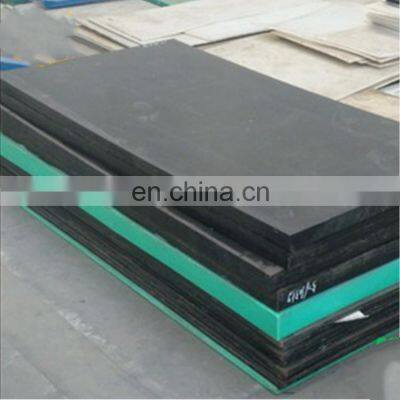

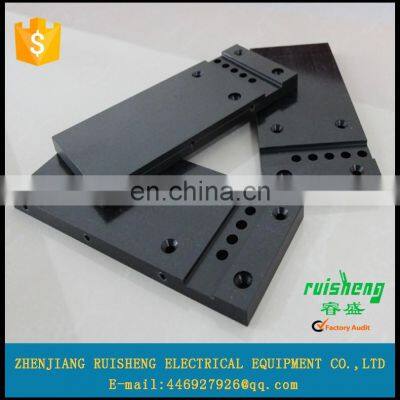

UHMWPE Sheet
Name: Ultra High Molecular Weight Polyethylene
Color: White, Black,Blue,Green, other color can be customized.
Size:1270~4270mm, 1055~4300mm,2040~3150mm. Thickness:6.5mm-150mm
I. Description
UHMW-PE is a super engineering plastic that is probably not as well known as some other engineering plastics but can out perform its relatives in a number of important areas. UHMW (aka UHMW-PE) offers a combination of excellent properties outstanding abrasion resistance, superior impact resistance, non-sticking and self-lubricating properties and excellent mechanical properties, even in cryogenic conditions. UHMW product reduces noise from impact & vibration. It is a self-lubricating material that is chemical, corrosion, and wear-resistant. And its food safe. The weight is light, the is 1/8 of the rolled steel. Life is higher than steel. The wear resistance is 3 to 7 times of carbon steel and stainless steel.
II. UHMWPE Characteristics
1. UHMW exhibits virtually no water absorption
2, Non-Toxic
3. Low coefficient of friction
4. Corrosion resistant
5. Abrasion and impact resistant
6. Wear Resistant
7. Great liner material for industrial material handling applications
8. no ,food safe
III. UHMWPE Application
1. Chemical Engineering: Corrosion and wear resistantance mechanical parts
2. Thermal power: coal handling, storage of coal, warehousing chute lining
3. Coal processing: sieve plate, filter, U-underground coal chute
4. Concrete: cement raw and finished product silo silo lining
5. Grain: food storage or chute lining
6. Mining: sieve plate, chute linings, wear anti-bonding part
7. Food industry: star-shaped wheel, transmission timing bottle screw, bearings, guide
rollers, guides, slide blocks, etc.
IV. UHMWPE Certificate
. UHMW-PE Data Sheet
UHMWPE Typical Properties
|
Specific Gravity, 73°F |
.944 |
|
|
Tensile Strength @ Yield, 73°F |
3250 |
psi |
|
Tensile Modulus of Elasticity, 73°F |
155,900 |
psi |
|
Tensile Elongation (at break), 73°F |
330 |
% |
|
Flexural Modulus of Elasticity |
107,900 |
psi |
|
Compresive Strength at 2% deformation |
400 |
psi |
|
Compressive Strength 10% Deformation |
1200 |
psi |
|
Deformation Under Load |
6-8 |
% |
|
Compressive Modulus of Elasticity, 73°F |
69,650 |
psi |
|
Hardness, Durometer (Shore "D" scale) |
69 |
|
|
Izod Impact, Notched @ 73°F |
30 |
ft.lbs./in. of notch |
|
Coefficient of Friction (Dry vs Steel) Static |
.17 |
|
|
Coefficient of Friction (Dry vs Steel) Dynamic |
.14 |
|
|
Sand Wheel Wear/Abrasion Test |
95 |
UHMW=100 |
|
Coefficient of Linear Thermal Expansion |
11.0 |
in/in/°F x 10-5 |
|
Melting Point (Crystaline Peak) |
279-289 |
°F |
|
Volume Resistivity |
>1015 |
ohm-cm |
|
Surface Resistivity |
>1015 |
ohm-cm |
|
Water Absorption, Immersion 24 Hours |
Nil |
% |
|
Water Absorption, Immersion Saturation |
Nil |
% |
|
Machinability Rating |
5 |
1 = easy, 10 = difficult |
|
Sheet Thickness Availability (Off the Shelf) |
.250 - 2.0 |
inches |
Advantages we have:
A: Experienced uhmwpe products supplier
B: Professional design team and sales department for your service
C: We can provide free small sample or receive small quanty sample order.
D: 8/24 service for you, all the questions will be dealed within 24 hours
Benifit you get:
A: Stable quality----coming from good material and technic
B: Lower price----not cheapest but the lowest at the same quality
C: Good service----satisfactory service before and after sale
D: Delivery time----15-20 days for mass production
