Hotel/Office/Conference Room Multimedia Power Network Panel table Socket

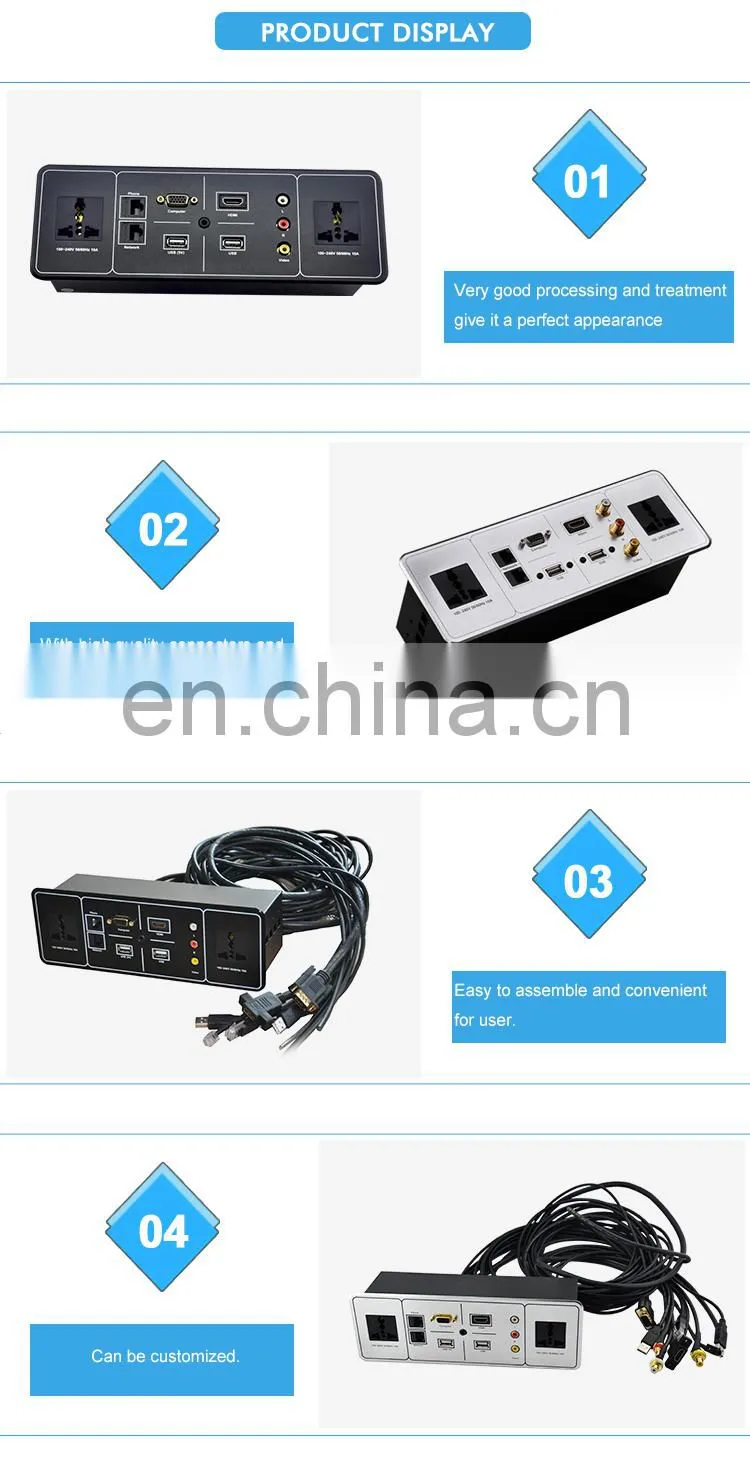

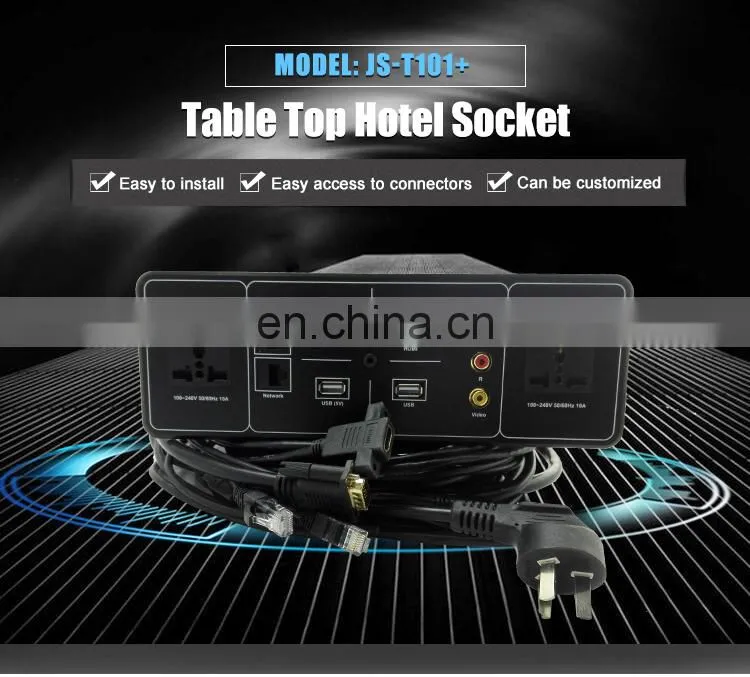

JS-T101+ interconnect box provides inconspicuous access for two three-pin power supply, two network (or a single phone and single network), one VGA and, one 3.5mm audio, one set of audio& video, two USB and one HDMI
The interconnect box is a compact interconnect solution designed for installation into a table as part of a presentation system. It can be mounted into a table, podium and stage to provide a way to connecting audio visual equipment on top of furniture to a presentation system under the furniture.

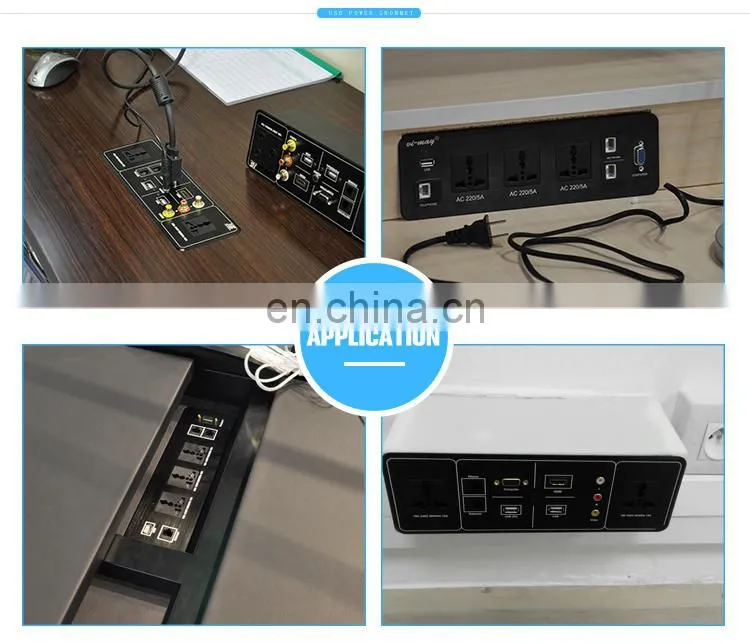

The interconnect box is ideal for office, boardrooms, classrooms, hotel rooms and large training facilities where multiple, distributed tabletop cable connections are needed.
1. Keep the product away from the reach of children.
2. Please read this manual carefully before your using.
3. Unauthorized personnel shall not open the unit as there are high-voltage components inside. Qualified personnel must perform all devices.
4. There is no over current protection in the unit, an additional 10A fuse shall be installed to the power supply by the installer.
5. Do not break any accessories and connection cables.
6. Be cautious to the sharp edge of panel to avoid any possible cut damage.
7. Keep dry, ventilated and keep away from humid, dust, and heat.
8. Check carefully the power voltage and frequency before installation.
9. Disconnect the power cord to turn off the power before cleaning the unit.
10. Clean with a dry cloth. Do not use any depurative for cleaning.
11. Make sure to check the cables regularly.
|
JS-T101+ Main Specification |
|
|
Ports |
3 pin AC power, RJ45, 15pin HD VGA, HDMI, Composite Video, Audio left channel, Audio right channel, USB etc. |
|
Net Weight |
About 1.59kg |
|
Panel Size |
260mmx90mm |
|

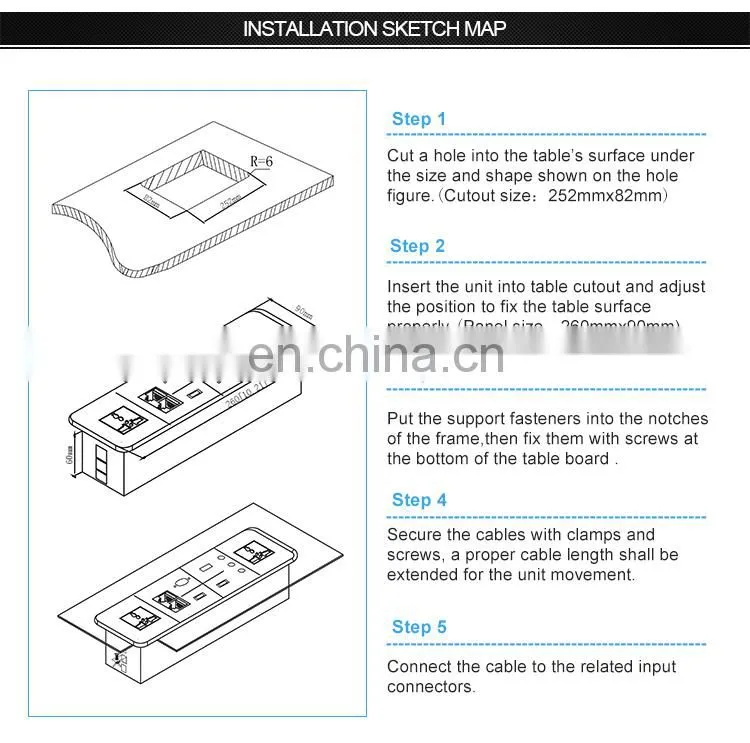

Cutout Size |
252mmx82mm |
|
Panel Material |
Aluminum Alloy |
|
Surface Treatment |
Sandblast/ Brushed |
|
Color |
Silver/Black |
|
Cables |
With 1.7m cables |
|
Table Thickness |
Maximal 60mm |
|
Temp. Range |
0~50 ℃ |
|
Warranty |
1 year |
|
Certificate |
CE, RoHS, CCC |
Since the company has been established in 2006, Beijing JS Technology Co., Ltd. has developed into a professional company specialized in R&D, manufacturing and marketing of audio-visual accessories. With the core concept of “orderly office, easy work”, our R&D department designed out the main product-JS Interconnect Box. We have always dedicated in simply the connections between source devices and display in office, boardroom and hotel. JS successfully provided simple and good looking solution in many application in the past 11 years.
We always take “professional, advanced, stronger” as our corporate culture,committed to research and development, and will continuously improve the product quality and service capabilities in the coming days.
