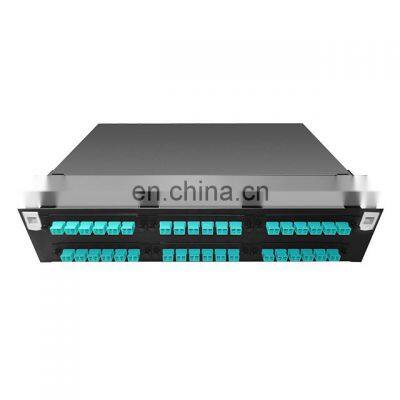

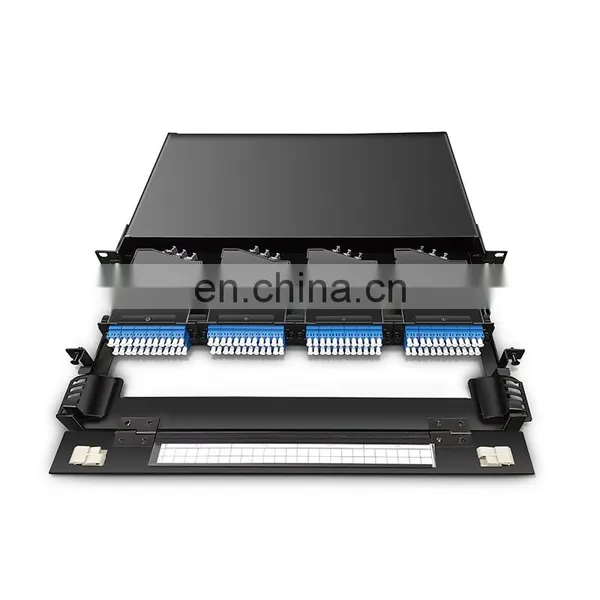

10G 40G High density 19 inch 1U MPO/MTP-LC 24F Optical Cassettes 48,72,96,144 Core MPO Fiber Optic Patch Panel
MPO/MTP patch panel
The panel is made with cold rolled sheet and frosted painting; cassette is made with aluminum, and adapter plate is made with plastic. the cassette is fixed on the panel with pressing valve
MPO fiber optic patch panel, SC/FC/ST/LC,UPC,APC connectors, 1U,2U,4U, we are manufacturer of MPO fiber optic patch panels and cassettes, MPO cable assemblies and components.
Typical MPO fiber optic patch panel is with 1U 19 standard size, inside the patch panel, it can be splice trays with 1XN MPO fiber cable assemblies, or it can use our MPO fiber optic cassette to integrate into the patch panel, the 1U MPO fiber patch panel can be with max 48 cores or 72 cores output optical strand, the output connectors can be SC/FC/ST/LC.

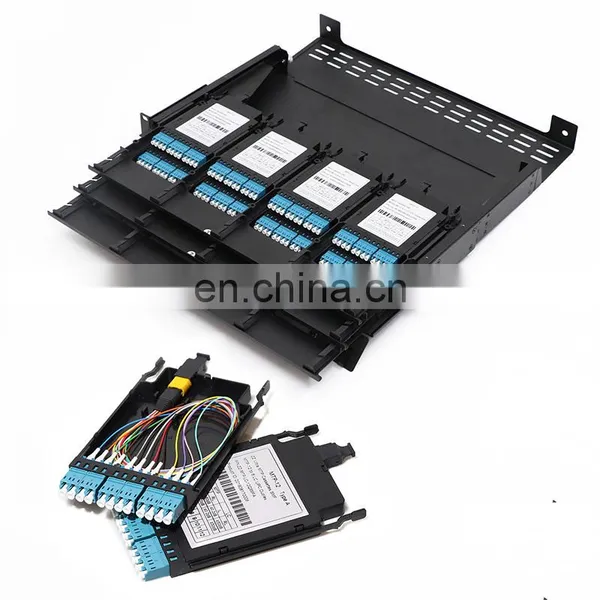

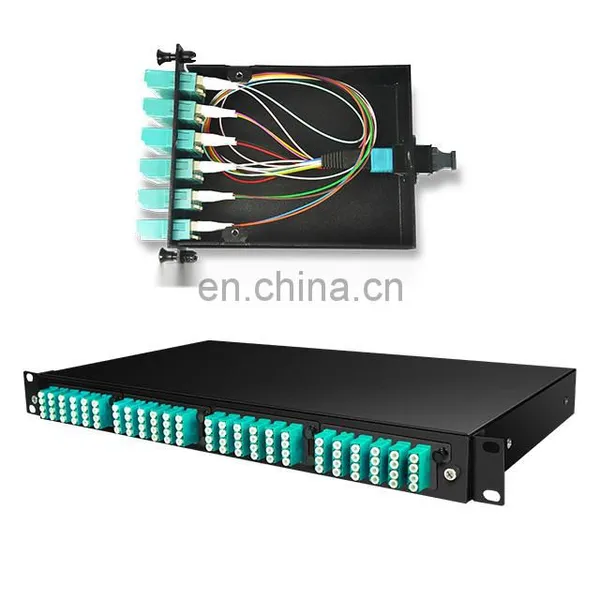

MTP/MPO Cassette

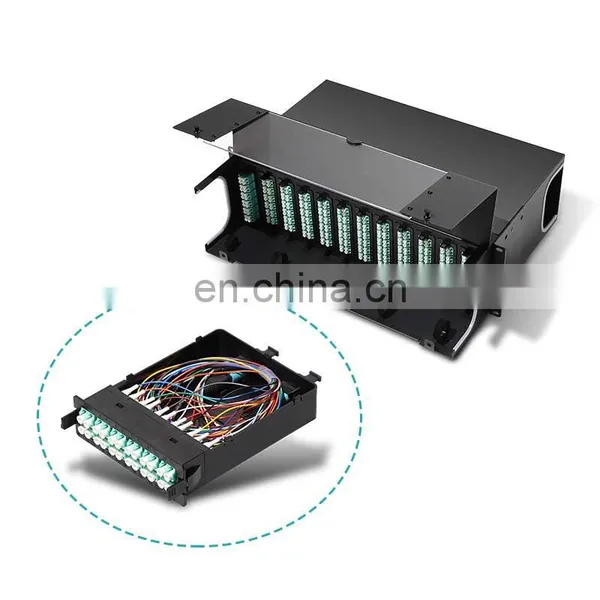

MTP/MPO Cassette Modules provide secure transition between MTP/MPO and LC or SC discrete connectors. They are used to interconnect MTP/MPO backbones with LC or SC patching.
Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. Cassettes can be mounted in 1U or 3U 19” multislot chassis.
APPLICATION
Data centers,pre-terminated installations
Telecommunication networks
Storage area networking fiber channel
High denisty architectures
Telecommunication networks
Storage area networking fiber channel
High denisty architectures
FEATURES
Finishing: powder coated
Fits into 19 inch installations
Max capacity up to 144 fiber for 1U
Sliding tray design
Easy to operate and maintain
Fits into 19 inch installations
Max capacity up to 144 fiber for 1U
Sliding tray design
Easy to operate and maintain
Product Parameters
Performance Level | Standard | Elite | ||||||||
Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) | ||||
MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 | ||||
24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 | ||||||
48F/APC | ≤0.75 | ≥60 | ||||||||
MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | |||||
24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||||||
48F/PC | ≤0.50 | ≥20 | ||||||||
LC/SC/FC/ST | SM | ≤0.30 | ≥60 | ≤0.10 | ≥60 | |||||
UPC | ≤0.20 | ≥50 | ≤0.10 | ≥50 | ||||||
MM | PC | ≤0.20 | ≥30 | ≤0.10 | ≥30 | |||||
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
Mechanical Properties | ||||||
Item | Criteria | Conformance | ||||
△IL After 50 Matings | MPO/MTP | ≤0.3dB | GR-1435 | |||
△IL After 500 Matings | LC/SC/FC/ST | ≤0.2dB | IEC 61300-2-2 | |||
Min Bend Radius (Dynamic) | 20*OD (Cable Diameter) | |||||
Min Bend Radius (Static ) | 15*OD (Cable Diameter) | |||||
Environment Conditions | ||||||
Item | Criteria | Conformance | ||||
Operation Temperature | -40~60°C | IEC 61753-1 | ||||
Storage Temperature | -45~85°C | |||||
