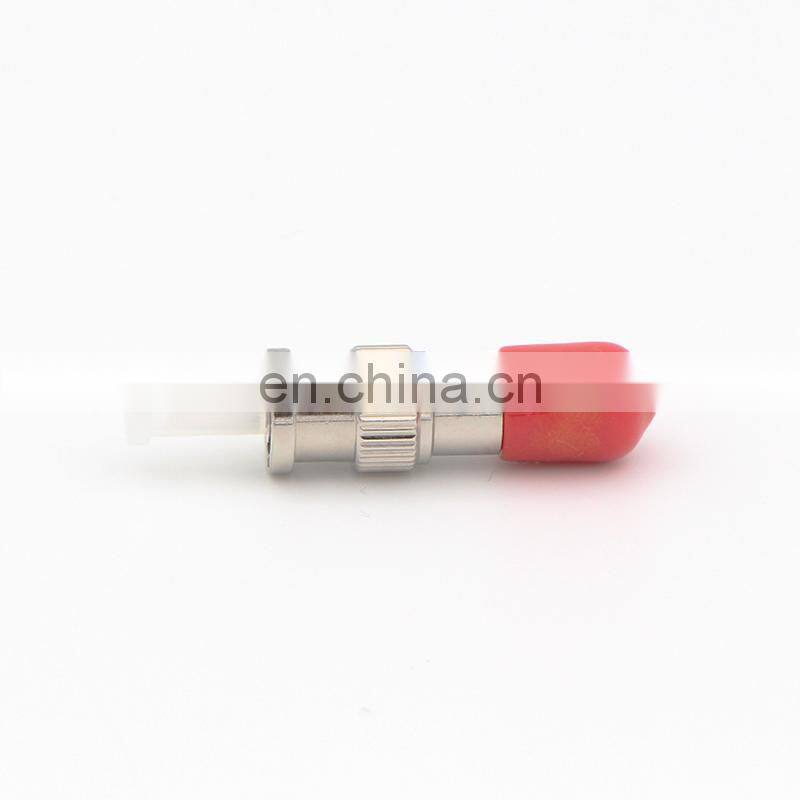

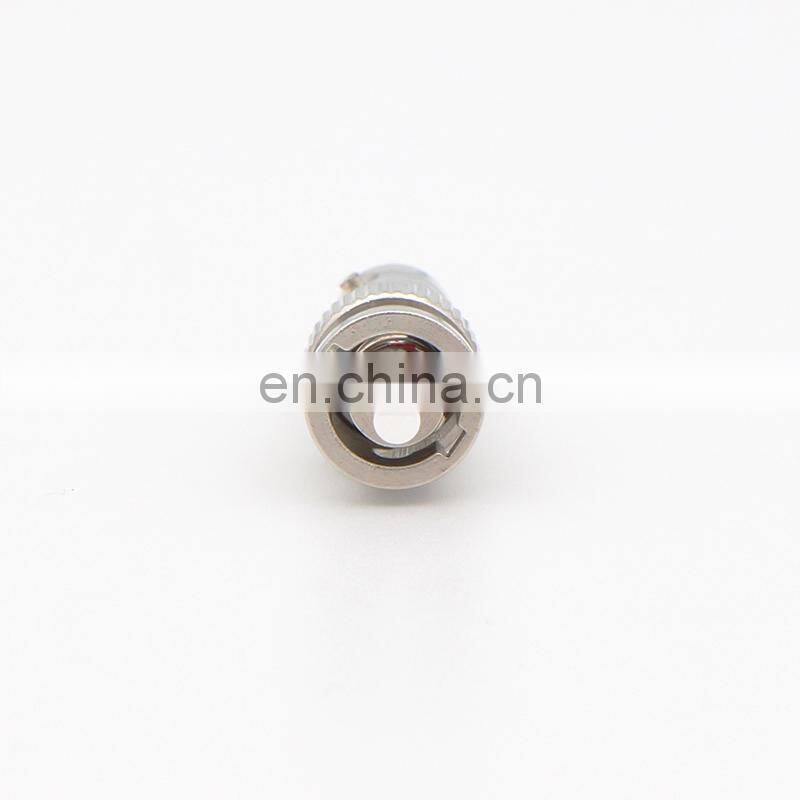

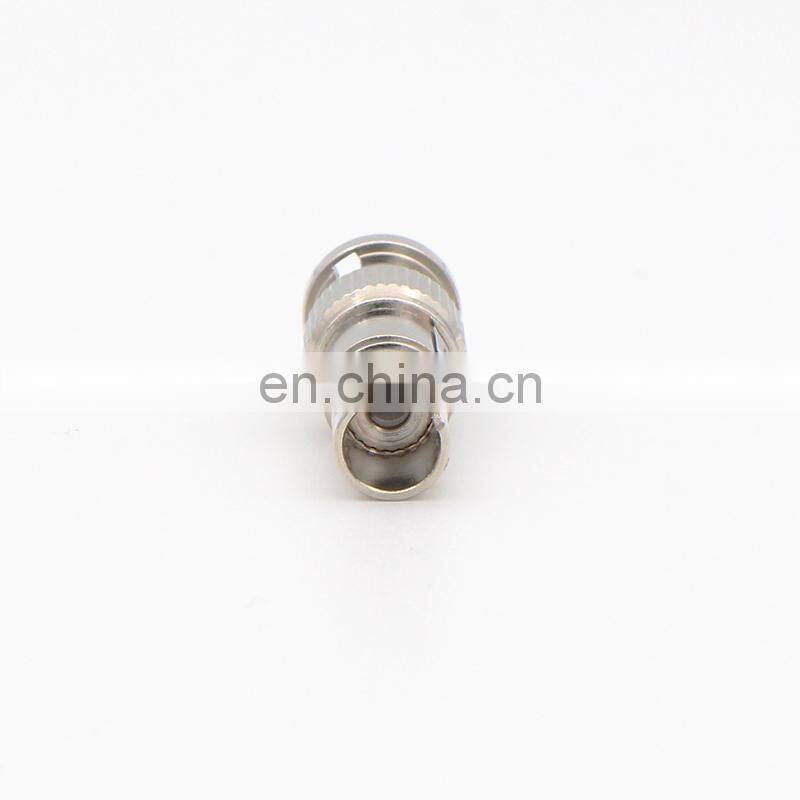

ST/UPC Singlemode Fixed Fiber Optic Attenuator

Product Pictures:

Feature:

• Fully compatible with ST fiber optic connectors
• Low PDL and Low back reflection
• High power endurance
• Wavelength independent
• Precise control of attenuation range
• Simple manipulation
• Highly Reliable Physical Contact Connectors
• Available in single-mode or multi-mode
• Fixed Attenuation value customized from 1-30db



Operation wavelength	SM: 1200 to 1600nm or 1310/1550nm
	MM: 850nm, 1300nm
Return Loss	≥ 50 db (PC)
	≥ 55 db (UPC)
	≥ 65 db (APC)
Attenuation Accuracy	+/-0.5 db  for 1 to 5db attenuation
	+/-10%  for 6 to 30db attenuation
Polarization Dependent loss	≤ 0.2db
Maximum optical Input power	200mW
Operating Temp Range	-40 to + 80 degree

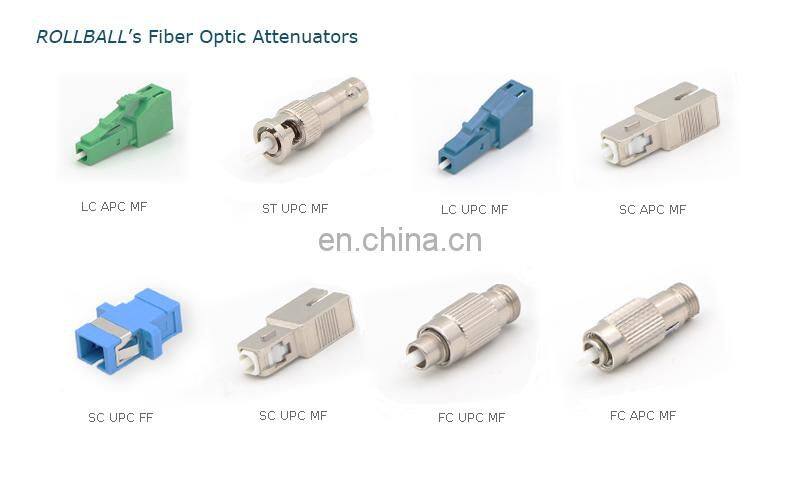

More Products:

Compatible Brand:





Certifications:

Our Company:

Rollball Comm-tech, established in 2000,located in Shenzhen China,specializes in providing high-performance fiber optic communication products and accessories for telecommunication, broadcast, CATV and network industries worldwide for 8 years.

Supplying fiber patch cord, pigtail ,fiber optic splitter,Transceiver,POE switch,Media converter, Fiber optics,OADM and CWDM DWDM MUX/DEMUX etc.

At Rollball, we believe that quality is essential to the company's success. As a result, we strictly monitor our ISO 9001:2000-certified production processes. Also, we inspect every aspect of production, from raw material examination to final inspections and shipping.
