16port Edfa 24dbm
- T/T Credit Card
You May Like
Product Description
RB-HA5400 series is a high-power multi-ports EDFA with gain spectrum band within 1540~1563nm. It is designed for the application of single channel or 1~8 continuous ribbon channels (ITU wavelength). This series of EDFA offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.
EDFA product, for its high quality, high reliable and high cost performance, is the ideal choice of the system integration and system operation.
RB-HA5400A EDFA: 1RU chassis, total output power >1000mW, offers 16 optical outputs at most.

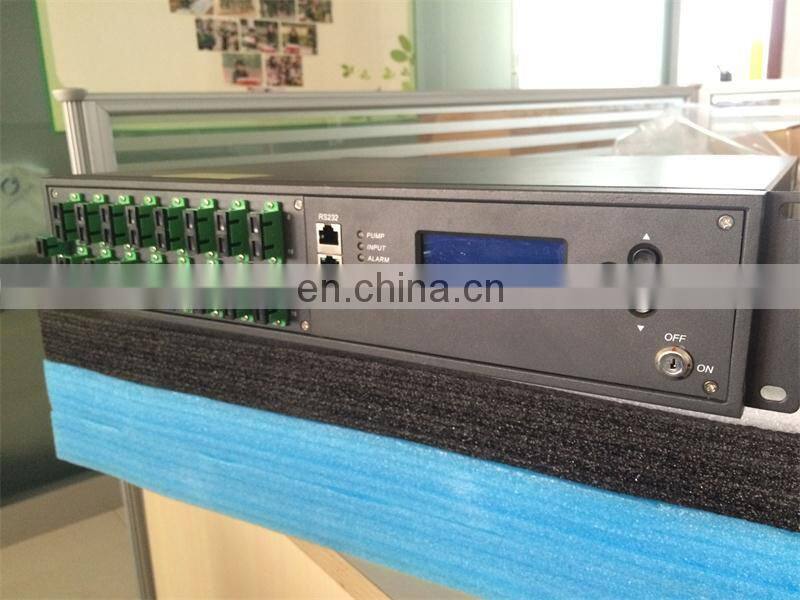

RB-HA5400B EDFA: 2RU chassis, total output power >5000mW, offers 64 optical outputs at most.
2. Product Feature
• 1540~1563nm operating bandwidth
• 500~5000mW (27~37mW) high output power
• Low noise, high performance, high reliability
• 8~32 uplink optical port, used in OLT
• 8~32 1550nm output optical port, multiplex 1310/1490nm data stream.
• Can be compatible with any FTTx PON Technology:EPON/GEPON, GPON, BPON, DPON
• Perfect RS232, SNMP
• Efficient space, flexible installation and easy operation
• Excellent P/P ratio
3. Technique Index
Performance | Index | Supplement | ||||
Min. | Typ. | Max. | ||||
Optical feature | Operating wavelength range | (nm) | 1540 |
| 1563 | CATV |
Input power | (dBm) | -10 | ≥+3 | +10 |
| |
Total output power1) | (dBm) | 27 |
| 32 | 1U | |
28 |
| 37 | 2U | |||
Number of output ports |
| 4 |
| 16 | 1U, SC/APC, LC/APC | |
8 |
| 32 | 1U, LC/APC | |||
8 |
| 32 | 2U, SC/APC, LC/APC | |||
16 |
| 64 | 2U, LC/APC | |||
Each port output power | (dBm) | 10 |
| 22 |
| |
Difference of output power | (dB) | -0.5 |
| +0.5 |
| |
Output power adjustable range | (dBm) | -6 |
| 0 | RB-HA5400/P | |
Noise figure (Pin=0dBm) | (dB) |
|
| 6.3 |
| |
Polarization dependence loss | (dB) |
|
| 0.3 |
| |
Polarization dependence gain | (dB) |
|
| 0.4 |
| |
Polarization mode dispersion | (ps) |
|
| 0.3 |
| |
Input/output isolation | (dB) | 30 |
|
|
| |
Pump power leakage | (dBm) |
|
| -30 |
| |
Echo loss | (dB) | 55 |
|
| APC | |
General feature | Network management interface |
| RJ45 | SNMP | ||
Series interface |
| RS232 |
| |||
Power supply | (V) | 90 |
| 265 | 220VAC | |
30 |
| 72 | -48VDC | |||
4.Rollball Order Information
Model number | Total output power | Number of output port | Each port output power | Connector |
HA5826A-08 | 26dBm(400mW) | 8 | 15.0 | SC/APC, LC/APC |
HA5827A-08 | 27dBm(500mW) | 8 | 16.0 | SC/APC, LC/APC |
HA5828A-08 | 28dBm(630mW) | 8 | 17.0 | SC/APC, LC/APC |
HA5829A-08 | 29dBm(800mW) | 8 | 18.0 | SC/APC, LC/APC |
HA5830B-08 | 30dBm(1000mW) | 8 | 19.0 | SC/APC, LC/APC |
HA5830B-16 | 16 | 15.5 | ||
HA5831B-08 | 31dBm(1260mW) | 8 | 20.0 | SC/APC, LC/APC |
HA5831B-16 | 16 | 16.5 | ||
HA5831B-32 | 32 | 13.0 | LC/APC | |
HA5832B-08 | 32dBm(1600mW) | 8 | 21.0 | SC/APC, LC/APC |
HA5832B-16 | 16 | 17.5 | ||
HA5832B-32 | 32 | 14.0 | LC/APC | |
HA5833B-08 | 33dBm(2000mW) | 8 | 22.0 | SC/APC, LC/APC |
HA5833B-16 | 16 | 18.5 | ||
HA5833B-32 | 32 | 15.0 | LC/APC | |
HA5834B-16 | 34dBm(2500mW) | 16 | 19.5 | SC/APC, LC/APC |
HA5834B-32 | 32 | 16.0 | LC/APC | |
HA5835B-16 | 35dBm(3200mW) | 16 | 20.5 | SC/APC, LC/APC |
HA5835B-32 | 32 | 17.0 | LC/APC | |
HA5836B-16 | 36dBm(4000mW) | 16 | 21.5 | SC/APC, LC/APC |
HA5836B-32 | 32 | 18.0 | LC/APC | |
HA5837B-16 | 37dBm(5000mW) | 16 | 22.5 | SC/APC, LC/APC |
HA5837B-32 | 32 | 19.0 | LC/APC |
Remark: 1. All optical amplifiers in HA5800 series with specified output power and output ports can be in 2U casing.
2. Please contact us for detailed datasheet of optical amplifier if special output power and output ports configuration is required.
