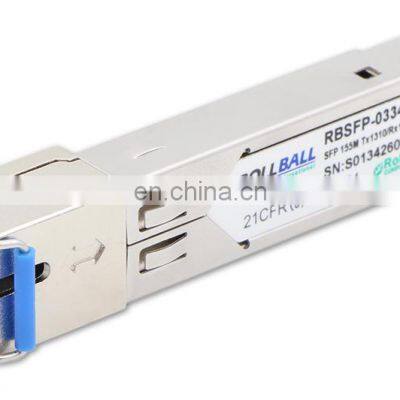

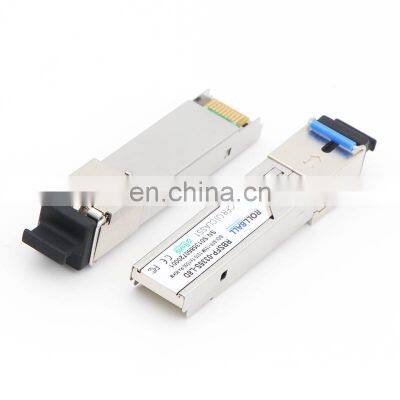

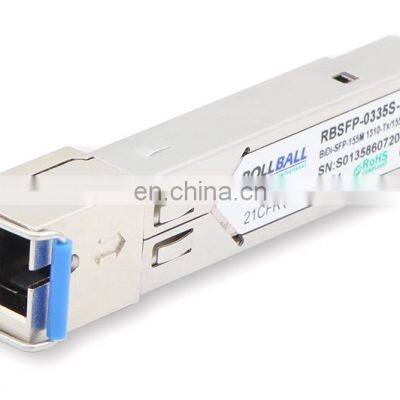

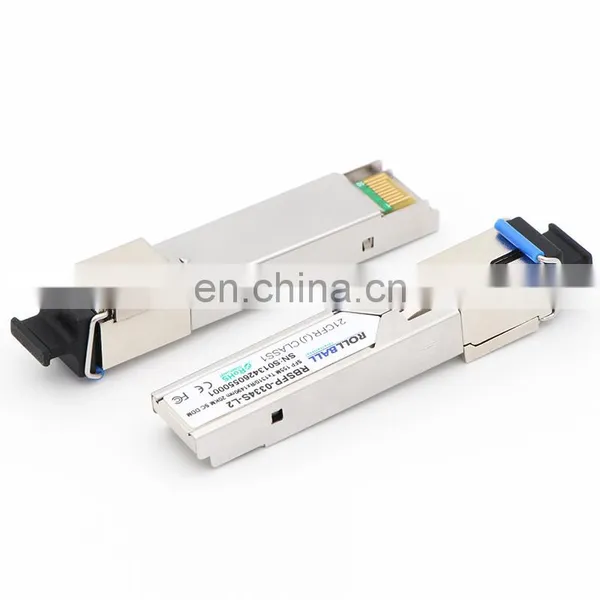

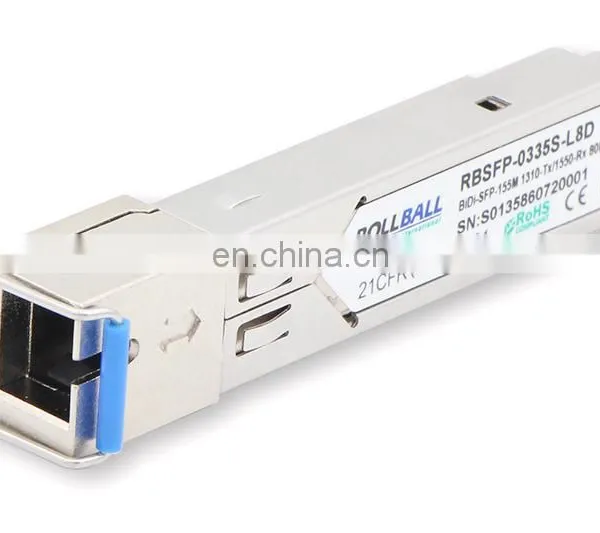

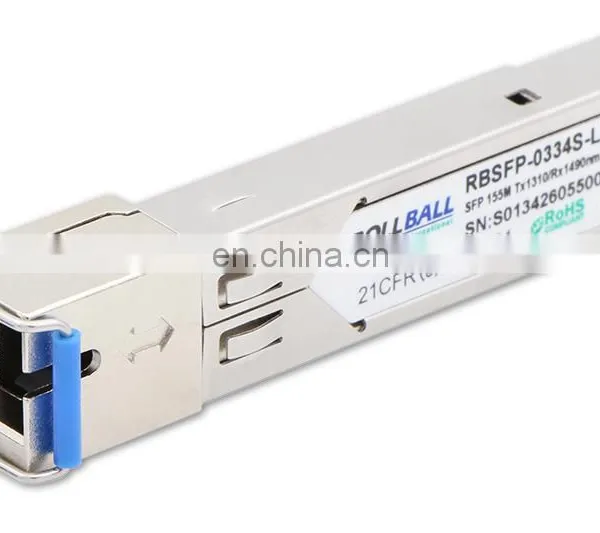

10G 40km/60km SFP+ SFP BIDI Transceiver Module SC/LC
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2004
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10G 40km/60km lC BIDI SFP+ Transceiver ModuleNegotiableMOQ: 1 -
80 km LC Connector SFP+ 10G SFP BIDI TX1270nm RX1330nm Transceiver ModuleNegotiableMOQ: 1
-
25Gb/s SFP28 1310nm 10km Fiber Channel Transceiver Module 25G SMF SFP28 10KMNegotiableMOQ: 1
-
25Gb/s SFP28 BIDI 40km Optical Transceiver Module 25G BIDI SFP28 40KMNegotiableMOQ: 1
-
25Gb/s DWDM SFP28 C-Band 10km Transceiver Module 25G SFP28 Dwdm Best PriceNegotiableMOQ: 1
Product Description
Factory supply WDM bidi 10g sfp+ LC DOM Modules
1.Description
- The bidi sfp+module (RBSFPP-XXXX192-X0R series) single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.
- The RBSFPP-XXXX192-X0R module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.
- The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
2.Applications
- 10GBASE-LR at 10.3125Gbps
- 10GBASE-LW at 9.953Gbps
- Other Optical Links
- For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
- For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.
- 1G/2G/4G/ 8G/10G Fiber Channel applications.
3.Features
- Up to 10.3Gb/s data rates
- 1G/2G/4G/ 8G/10G Fiber Channel applications.
- Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
- Single 3.3V Supply
- Up to 80km on 9/125um SMF
- A:1270nm DFB Laser transmitter,1330nm receiver
- B:1330nm DFB Laser transmitter,1270nm receiver
- SFP+ MSA SFF-8431 Compliant
- Digital Diagnostic SFF-8472 Compliant
- RoHS compliant and Lead Free
- Operating case temperature: Commercial 0°C to 70°C / Industrial -40℃~+85℃
- For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
- For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.
