10G huawei dwdm XFPTransceiver
1.Description

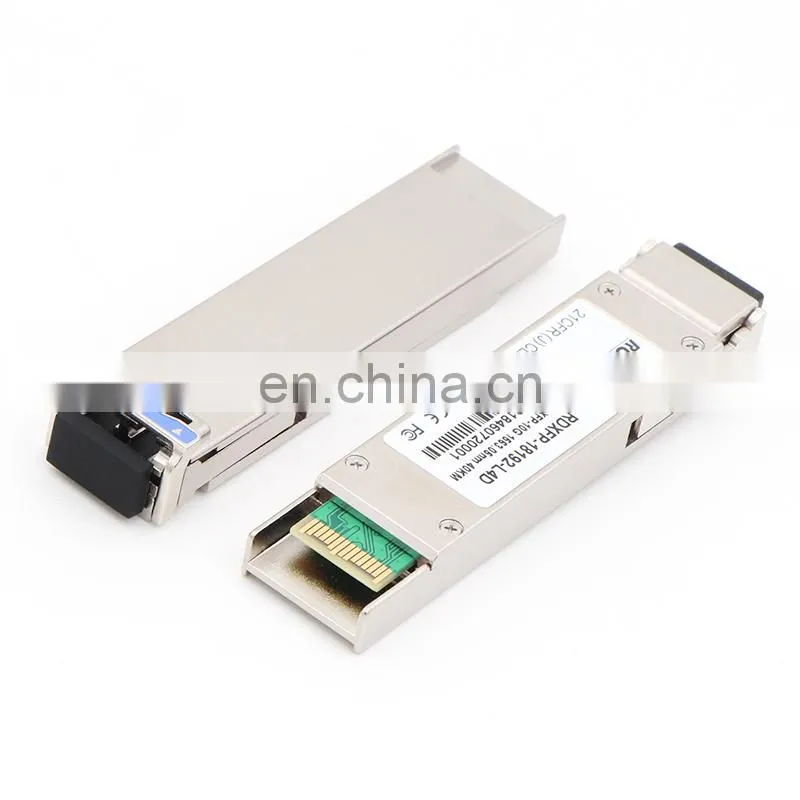

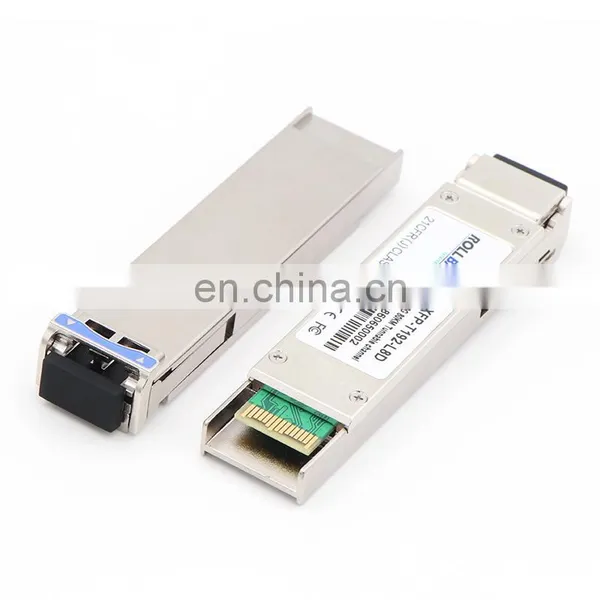

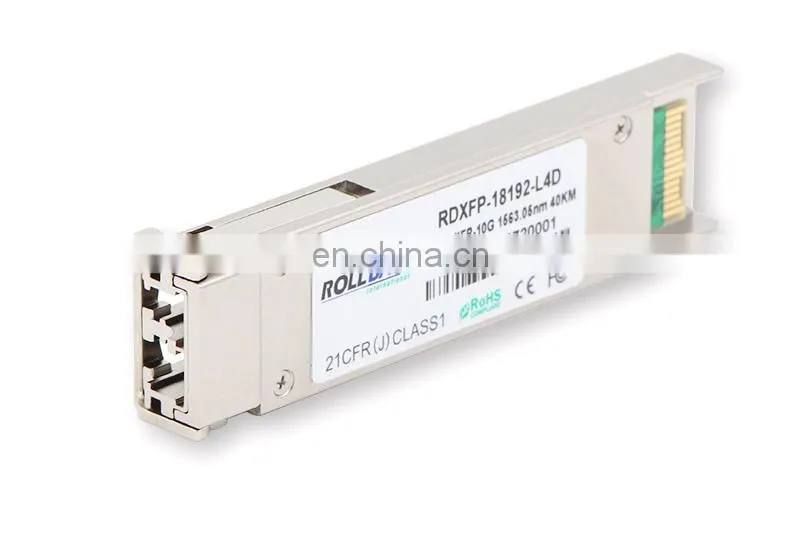

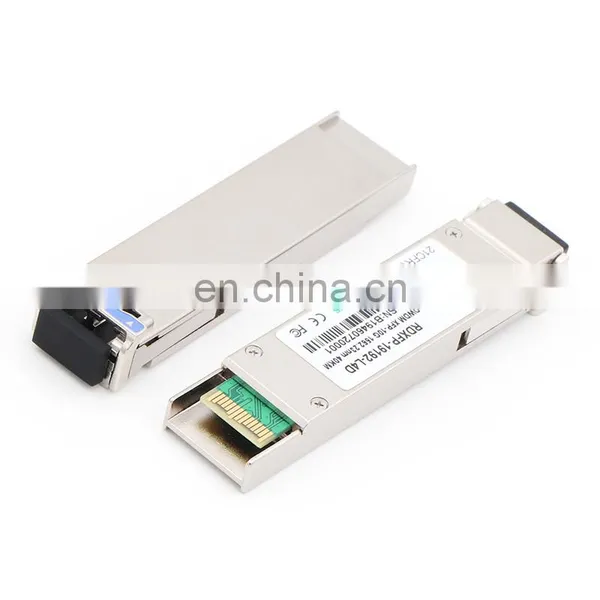

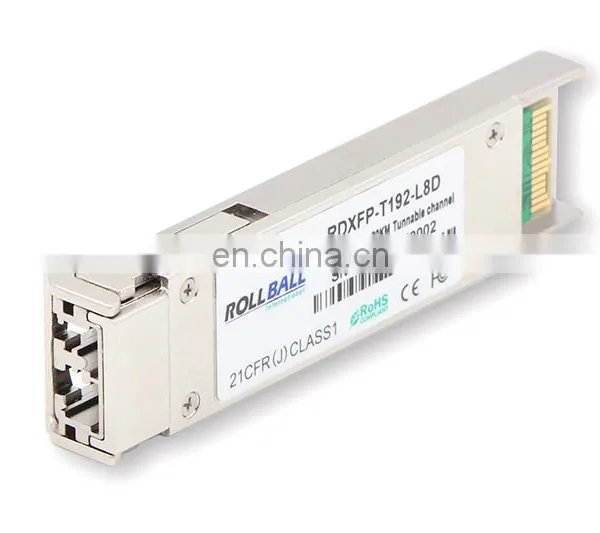

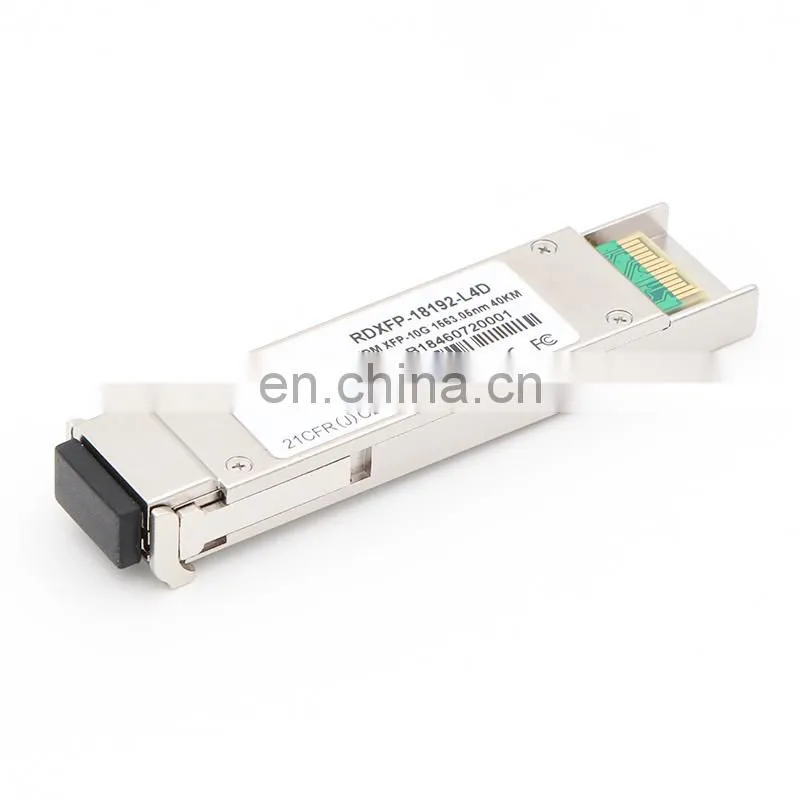

The ROLLBALL tunable 10 Gb/s XFP transceiver is an integrated fiber optic transceiver that provides a high-speed serial link at signaling rates from 9.95 Gb/s to 11.35 Gb/s. The module complies with the 10 Gigabit small form factor pluggable (XFP) multisource agreement-MSA (INF-8077i) and Tunable XFP for ITU Frequency Grid Applications(SFF-8477).
2.Applications
1). SONET OC-192& SDH STM 64
2). 10G Ethernet
3). DWDM 80km 10G Fiber Channel
4). DWDM Networks
3.Features
1). Supports 9.95Gb/s to 11.3Gb/s bit rates
2). Monolithically integrated full C-band tunable transmitter
3). 50 GHz ITU channel spacing with integrated wavelength locker
4). C-band-tunable Laser and APD receiver
5). Maximum link length of 40km
6). Full Duplex LC connector
7). Hot-pluggable XFP footprint
8). Supports Line-side and XFI loopback
9). No Reference Clock required
10).Built-in digital diagnostic functions
11). Standard bail release mechanism
12). Power dissipation <3.5W
13). Case temperature range:0°C to 70°C
4.Product list
dwdm xfp transceiver
|
Part Number |
Product Description |
|
RDXFP-XX192-ZR |
XX= ITU Grid 17~61, 10Gbps, DWDM XFP 80km, -5ºC ~ +70ºC |
|
RDXFP-XX192-ER |
XX= ITU Grid 17~61, 10Gbps, DWDM XFP 40km, -5ºC ~ +70ºC |
|
RDXFP-XX192-12 |
XX= ITU Grid 17~61, 10Gbps, DWDM XFP 120km, -5ºC ~ +70ºC |
Rollball is always at your services with our fiber optical products. As professional manufacturer with rich experience, we have more than 100 different models for your choices, you are sure to stand out with Rollball advantage: competitive price , product warranty and excellent quality. You may check the clients feedback from all over the world. We guarantee what we have showed is 100% genuine and what else you are waiting for?
