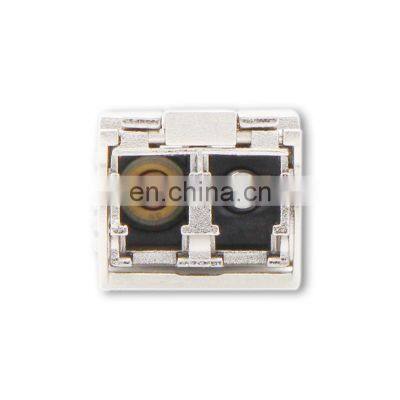

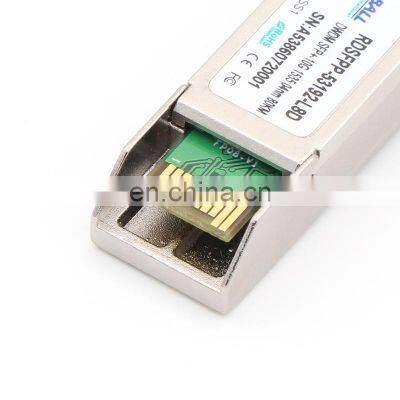

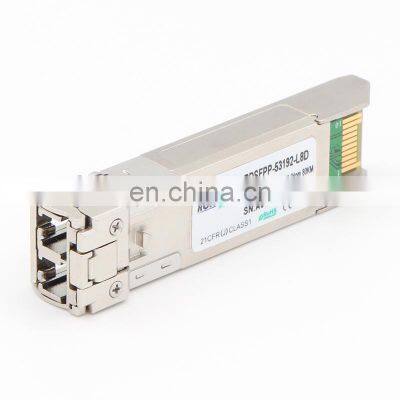

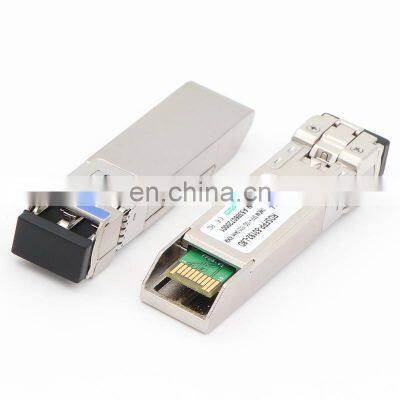

10Gb/s DWDM SFP+ 80km dual LC DOM Transceiver Modules
Product details
- This SFP+ZR DWDM transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 80km.
- The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Features
- Compliant with SFF-8431,SFF-8432 and IEE802.3ae
- Cooled EML transmitter and PIN receiver
- Suitable for use in 100GHz channel spacing DWDM systems
- Hot pluggable
- link length up to 80km
- 10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.
- Low power consumption
- With DDM / without DDM optional; default with DDM;
- Operating Case Temperature
Standard: 0°C ~+70°C
Industrial:-40°C~+85°C
Applications
- 10GBASE-ER
- 10G Fiber Channel
Product Mode
| P/N | Parameters |
RDSFPP-XX192-L4D |
DWDM SFP+-10G 40KM; DDM; CH17-CH61 optional |
RDSFPP-XX192-L8D |
DWDM SFP+-10G 80KM; DDM; CH17-CH61 optional |
DWDM C-band λc Wavelength Guide
|
ITU Channel Product Code |
Frequency(THz) |
Wavelength |
ITU Channel Product Code |
Frequency(THz) |
Wavelength |
17 |
191.7 |
1563.86 |
40 |
194.0 |
1545.32 |
18 |
191.8 |
1563.05 |
41 |
194.1 |
1544.53 |
19 |
191.9 |
1562.23 |
42 |
194.2 |
1543.73 |
20 |
192.0 |
1561.42 |
43 |
194.3 |
1542.94 |
21 |
192.1 |
1560.61 |
44 |
194.4 |
1542.14 |
22 |
192.2 |
1559.79 |
45 |
194.5 |
1541.35 |
23 |
192.3 |
1558.98 |
46 |
194.6 |
1540.56 |
24 |
192.4 |
1558.17 |
47 |
194.7 |
1539.77 |
25 |
192.5 |
1557.36 |
48 |
194.8 |
1538.98 |
26 |
192.6 |
1556.55 |
49 |
194.9 |
1538.19 |
27 |
192.7 |
1555.75 |
50 |
195.0 |
1537.40 |
28 |
192.8 |
1554.94 |
51 |
195.1 |
1536.61 |
29 |
192.9 |
1554.13 |
52 |
195.2 |
1535.82 |
30 |
193.0 |
1553.33 |
53 |
195.3 |
1535.04 |
31 |
193.1 |
1552.52 |
54 |
195.4 |
1534.25 |
32 |
193.2 |
1551.72 |
55 |
195.5 |
1533.47 |
33 |
193.3 |
1550.92 |
56 |
195.6 |
1532.68 |
34 |
193.4 |
1550.12 |
57 |
195.7 |
1531.90 |
35 |
193.5 |
1549.32 |
58 |
195.8 |
1531.12 |
36 |
193.6 |
1548.51 |
59 |
195.9 |
1530.33 |
37 |
193.7 |
1547.72 |
60 |
196.0 |
1529.55 |
38 |
193.8 |
1546.92 |
61 |
196.1 |
1528.77 |
39 |
193.9 |
1546.12 |
|
|
|
5. Part of 10G Modules Product list
| Part Number | Data Rate | Wavelenth | Distance | Package | Temp. | Source |
| XFP (10G) | ||||||
| RXFP-85192-SRD | 10G | 850 | 300M | XFP | 0~70 | VSCEL+PIN |
| RXFP-31192-LRD | 10G | 1310 | 10KM | XFP | 0~70 | EML+PIN |
| RXFP-55192-ERD | 10G | 1550 | 40KM | XFP | 0~70 | EML+PIN |
| RXFP-55192-ZRD | 10G | 1550 | 80KM | XFP | 0~70 | EML+APD |
| SFP+ (10G) | ||||||
| RSFPP-85192-SRD | 10G | 850 | 300M | SFP+ | 0~70 | VSCEL+PIN |
| RSFPP-31192-LRD | 10G | 1310 | 10KM | SFP+ | 0~70 | DFB+PIN |
| RSFPP-55192-ERD | 10G | 1550 | 40KM | SFP+ | 0~70 | EML+PIN |
| DWDM XFP (10G) with DDMI, XX is C-Band and L-Band ITU, XX=17, 18, 19…, which 17=1563.86nm, 18=1563.05nm… | ||||||
| RDXFP-XX192-40D | 10G | XXXX.XX | 40KM | DWDM XFP | 0~70 | DFB+PIN |
| RDXFP-XX192-80D | 10G | XXXX.XX | 80KM | DWDM XFP | 0~70 | DFB+PIN |
| CWDM XFP(10G) with DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm | ||||||
| RCXFP-XX192-10D | 10G | (1270-1330nm) | 10KM | CWDM XFP | 0~70 | DFB+PIN |
| RCXFP-XX192-40D | 10G | (1470-1610nm) | 40KM | CWDM XFP | 0~70 | EML+PIN |
| CWDM SFP+(10G) with DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm | ||||||
| RCSFPP-XX192-10D | 10G | (1270-1330nm) | 10KM | CWDM SFP+ | 0~70 | DFB+PIN |
| RCSFPP-XX192-40D | 10G | (1270-1330nm) | 40KM | CWDM SFP+ | 0~70 | DFB+PIN |
