Adjustable DC power supply

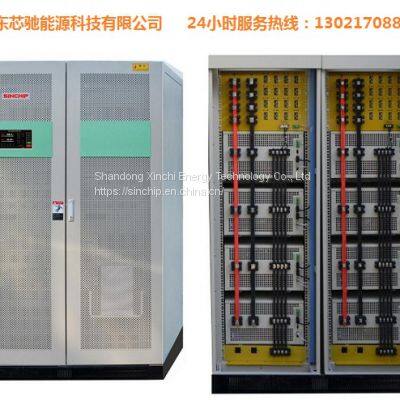

Product Name: SDC series Aviation Military High Voltage DC power supply

Performance features: redundant parallel output power supply to improve power supply reliability

Product remarks: Aviation Military special power supply

Product introduction

Sdc270 series aviation high-voltage DC power supply is one of the new products mainly developed and launched by our company. It is a high-voltage DC power supply specially designed and manufactured for the power supply of new generation fighters and airborne equipment; The product specification has more than 30, 48, 60 and 72 kW different levels to meet different needs. The biggest feature is that the power supply adopts international advanced wide-range ZVZCS soft switching inverter technology, modular design, redundant parallel output power supply and improve power supply reliability.

Technical features

■ meet the technical requirements of national military standard gjb572-2006 and mil-std-704 aviation power supply specification

■ wide range ZVZCS soft switching inverter technology of international advanced level is adopted, with high efficiency and high reliability.

■ it adopts German Siemens IGBT and ultramicrocrystalline magnetic core as the core devices and is specially developed for aviation military equipment

■ full CNC interface, full software correction, high stability, low drift, very low ripple and noise.

■ military grade MCU controller design is adopted to realize intelligent remote operation and monitoring

■ digital display of output voltage and output current; Voltage adjustable resolution 0.1V

■ output lead voltage drop compensation (ALDC) can be realized automatically without remote feedback signal terminal

■ high working frequency, high efficiency, high power density, high power factor and high reliability.

■ it has short-circuit protection, overload protection, overheating protection, overvoltage protection, overcurrent protection and independent temperature detection protection circuit

■ emergency mushroom type "off" switch, automatic aircraft safety disconnection device, high reliability and safety

■ adopt advanced silencing technology to create a quiet and comfortable working environment

■ humanized design, analog and digital integrated display panel, modular structure, simple operation and convenient maintenance. Product Name: SDC series Aviation Military High Voltage DC power supply
