Featuring with industrial-grade IPQ4019/IPQ4029 chipset

Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module

Support 4.940GHz to 5.825GHz Frequency Range

Support 2.400GHz to 2.482GHz

Support 2 x 5G MMCX Connectors and 2x2.4G MMCX

Support 5MHz/10MHz/20MHz/40MHz/80MHz Bandwidth

Support 11ABGN/AC

Support fixed data rate

RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

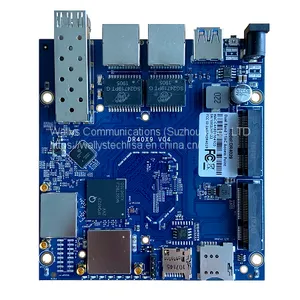

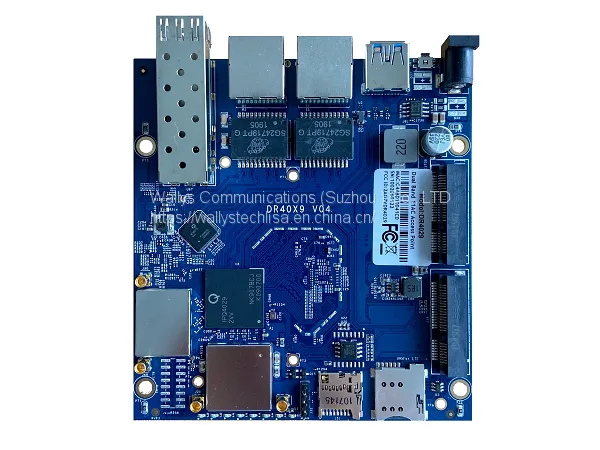

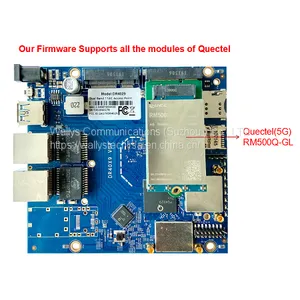

Our Firmware supports all the modules of Quectel

     Absolute Maximum Rating


    Parameter

    Rating

    Unit

    Supply Voltage

    24V~48

    V

    Operating Temperature Range

    -40 to +70

    ºC

    Storage Temperature Range

    -45 to +105

    ºC

    Operating Humidity Range

    5 to +95 (non-condensing)

    %

    Storage Humidity Range

    0 to +90 (non-condensing)

    %



     Hardware Specifications


    Symbol

    Parameter

    CPU

    IPQ4029（Quad core ARM Cortex A7 at 716.8 MHz）

    Antenna Connector

    2 x 5G MMCX connectors;2x2.4G MMCX

    10/100/1000Mbps Gigabit Ethernet

     2xRJ45

    SFP connector

    1xSFP fiber module connector (optional)

    3G/4G connector

    1xminipcie 3G/4G connector support with two sim card

    USB connector

    1xUSB 3.0 connector

    POE

    24V~48V passive POE

    DC Jack

    24V~48V power supply

    ROHS Compliance

    YES

    Dimension

    115mm x 105mm x 16mm

    Max Power

    48.1V x 0.180A= 8.658W

    Nor Flash

    2MB~32MB

    Nand Flash

    128MB

    DDR

    256MB~512MB



    		 Radio TX Specifications(5180MHz-5825MHz)


    Operating Mode

    Data Rate

    Power

    Tolerance

    1 Chain

    2 Chains

    802.11a

    6 Mbps

    27dBm

    30dbm

    ±2dB

    54 Mbps

    23dBm

    26dbm

    ±2dB

    802.11n HT20

    MCS0, MCS8

    26dBm

    29dbm

    ±2dB

    MCS7, MCS15

    22dBm

    25dbm

    ±2dB

    802.11n HT40

    MCS0, MCS8

    25dBm

    28dbm

    ±2dB

    MCS7, MCS15

    21dBm

    24dbm

    ±2dB

    802.11ac

    MCS0, MCS10,MCS20

    25dBm

    28dbm

    ±2dB

    MCS9,MCS19,MCS29

    19dBm

    22dbm

    ±2dB



     Radio RX Specifications(5180MHz-5825MHz)


    Operating Mode

     Data Rate

     Sensitivity

    802.11a

    6 Mbps

    -96dBm

    54 Mbps

    -78dBm

    802.11n HT20

    MCS0, MCS8

    -93dBm

    MCS7, MCS15

    -73dBm

    802.11n HT40

    MCS0, MCS8

    -90dBm

    MCS7, MCS15

    -70dBm

    802.11AC HT40

    MCS0, MCS10,MCS20

    -90dBm

    MCS9,MCS19,MCS29

    -67dBm

    802.11AC HT80

    MCS0, MCS10,MCS20

    -88dBm

    MCS9,MCS19,MCS29

    -62dBm



     Radio TX Specifications(2412MHz-2482MHz)


    Operating Mode

    Data Rate

    Power

    Tolerance

    1 Chain

    2 Chains

    802.11g

    6 Mbps

    27dbm

    30dbm

    ±2dB

    54 Mbps

    25dbm

    28dbm

    ±2dB

    802.11n HT20

    MCS0, MCS8

    26dbm

    29dbm

    ±2dB

    MCS7, MCS15

    25dbm

    28dbm

    ±2dB

    802.11n HT40

    MCS0, MCS8

    26dbm

    29dbm

    ±2dB

    MCS7, MCS15

    24dbm

    27dbm

    ±2dB



    		 Radio RX Specifications(2412MHz-2482MHz)


    Operating Mode

     Data Rate

     Sensitivity

    802.11g

    6 Mbps

    -96dBm

    54 Mbps

    -78dBm

    802.11n HT20

    MCS0, MCS8

    -93dBm

    MCS7, MCS15

    -73dBm

    802.11n HT40

    MCS0, MCS8

    -90dBm

    MCS7, MCS15

    -70dBm




    		 Interface MAP






    		  Version


    Item

    Information

    DR40X9-1

    CPU is IPQ4019

    DR40X9-2

    CPU is IPQ4029



    		 LED & GPIO header


    Item

    Information

    Note

    1

    PWR LED

    2

    Eth1 LED

    3

    Eth2 LED

    4

    2.4G LED

    GPIO32

    5

    5G LED

    GPIO50

    6

    Strength LED

    GPIO36

    7

    Strength LED

    GPIO39

    8

    NC

    9

    GND

    10

    Uart1_TX

    GPIO8

    11

    Uart1_RX

    GPIO9

    12

    NC

    13

    NC

    14

    NC

    15

    GND

    16

    PWR

      3.3v



    		 Serial Port


    Item

    Information

    1

    PWR

    2

    Uart0 TX

    3

    Uart0 RX

    4

    GND



    		 GPIO


    Item

    Information

     GPIO11

    Control for the switch of SIM cards
