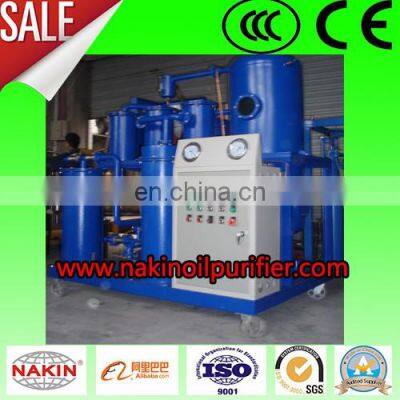

ZYD Custom Purifier Lubricant Hydraulic Compressor Turbine Oil Machine Set Customizable Used Oil Filtration Machine Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TYF Multifunctional Oil Purifier Vacuum Plate-Press Oil Filtration Machine to Clean Industrial LubricantsNegotiableMOQ: 1 -
High Power Engine Oil Recycling Plant Oil Refinery Machine Motor Oil Recycling MachineNegotiableMOQ: 1
-
Gasoline Diesel Marine Heavy Oil Filtration Machine Centrifuga Clarification and Purification MachineNegotiableMOQ: 1
-
Vacuum Machine Oil Purifier Used Oil Purifier Filtration Equipment Oil Refining MachineNegotiableMOQ: 1
-
Used Oil Purification Machine Mini Oil Refinery for SaleNegotiableMOQ: 1
Mechanical Oil, Hydraulic Oil, Compressor Oil, Turbine Oil, Refrigerator oil Vacuum Lubricating Oil Purifier Oil Filtration Machine Price
Product Description
Product Name :
Application:

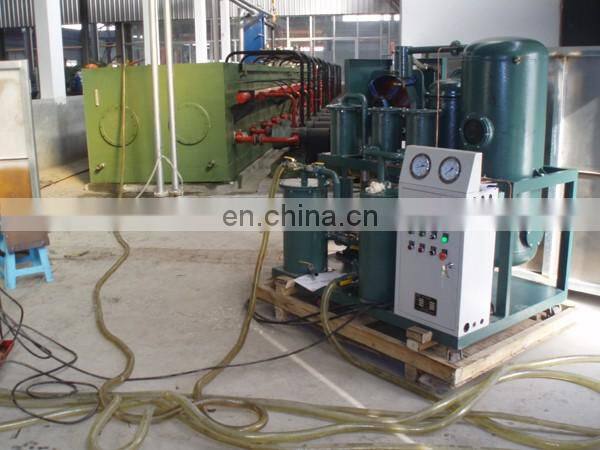

◆ TYA Vacuum lubricating oil purifier mainly deals with unqualified mechanical oil, hydraulic oil, compressor oil, turbine oil, refrigerator oil etc. It can quickly and effectively remove water, gas, impurities and volatiles (such as alcohol, gasoline, ammonia, etc.) from oil. it restores oil viscosity, flash point and other performance indicators. The filtered oil is low emulsification value, low water content, high cleanliness, which can be used again and again in high-precision hydraulic lubrication equipment. TYA Oil Purifier is suitable for various kinds of lubrication purification and regeneration treatment in petroleum, chemical, mining, metallurgy, power, transportation, machinery manufacturing, railway and other industries.
◆ TYA LubricatingOil Purifier
Application:
◆ TYA Vacuum lubricating oil purifier mainly deals with unqualified mechanical oil, hydraulic oil, compressor oil, turbine oil, refrigerator oil etc. It can quickly and effectively remove water, gas, impurities and volatiles (such as alcohol, gasoline, ammonia, etc.) from oil. it restores oil viscosity, flash point and other performance indicators. The filtered oil is low emulsification value, low water content, high cleanliness, which can be used again and again in high-precision hydraulic lubrication equipment. TYA Oil Purifier is suitable for various kinds of lubrication purification and regeneration treatment in petroleum, chemical, mining, metallurgy, power, transportation, machinery manufacturing, railway and other industries.
Features:
◆ The water separator uses high-molecular coalescing material as filtering medium, which integrates emulsification, dehydration
◆ Strong ability to remove impurities: ultra-large area cylindrical precision filter element, with high filtration accuracy, easy installation and replacement.
◆ High-efficiency vacuum dehydration and degassing: Duplex-Stereo film evaporation technology
◆ Excellent heating system: carbon fiber electric heater with long service life, low heating surface load, linear temperature rise, preventing oil cracking, keeping oil uniform heating.
◆ Automatic control to realize unattended, safe and stable working.
◆ Safety interlock protection: oil pump, vacuum pump, heater interlock protection
◆ Humanized instructions: automatic design, and there are instructions such as oil temperature gauge, pressure gauge, vacuum gauge, filter pollution alarm, operating status and so on.
◆ This machine has the advantages of low noise, easy operation, long maintenance interval, low energy consumption, low operating cost, high oil filtration efficiency, long lifetime, etc.
◆ The water separator uses high-molecular coalescing material as filtering medium, which integrates emulsification, dehydration
◆ Strong ability to remove impurities: ultra-large area cylindrical precision filter element, with high filtration accuracy, easy installation and replacement.
◆ High-efficiency vacuum dehydration and degassing: Duplex-Stereo film evaporation technology
◆ Excellent heating system: carbon fiber electric heater with long service life, low heating surface load, linear temperature rise, preventing oil cracking, keeping oil uniform heating.
◆ Automatic control to realize unattended, safe and stable working.
◆ Safety interlock protection: oil pump, vacuum pump, heater interlock protection
◆ Humanized instructions: automatic design, and there are instructions such as oil temperature gauge, pressure gauge, vacuum gauge, filter pollution alarm, operating status and so on.
◆ This machine has the advantages of low noise, easy operation, long maintenance interval, low energy consumption, low operating cost, high oil filtration efficiency, long lifetime, etc.
Specification
Index | Unit | TYA-10 | TYA-20 | TYA-30 | TYA-50 | TYA-100 | TYA-150 | TYA-200 | TYA-300 | |||||||||
Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | |||||||||
Working vacuum | MPa | -0.06～-0.095 | ||||||||||||||||
Working Pressure | MPa | ≤0.4 | ||||||||||||||||
Working Temperature | ℃ | 20 ～80 | ||||||||||||||||
Power Supply | 380V 50HZ,3Ph (or According to user demand) | |||||||||||||||||
Working Noise | dB(A) | ≤65～80 | ||||||||||||||||
Heating Power | Kw | 24 | 24 | 24 | 30 | 48 | 72 | 96 | 120 | |||||||||
Total Power | Kw | 27 | 27 | 27 | 33 | 53 | 78 | 102 | 128.5 | |||||||||
Inlet / Outlet | mm | 25 | 25 | 25 | 32 | 40 | 50 | 50 | 65 | |||||||||
Weight | kgs | 450 | 480 | 500 | 550 | 650 | 800 | 1000 | 1300 | |||||||||
Dimension(MM) | L | 1550 | 1550 | 1550 | 1650 | 1750 | 1800 | 1900 | 2100 | |||||||||
W | 1100 | 1100 | 1100 | 1200 | 1250 | 1500 | 1600 | 1800 | ||||||||||
H | 1650 | 1650 | 1650 | 1750 | 1750 | 1850 | 1950 | 1950 | ||||||||||
After Purification | ||||||||||||||||||
Demulsification value | min | ≤15/min(GB/F7035) | ||||||||||||||||
Water Content | ppm | ≤80 | ||||||||||||||||
Gas Content | % | ≤0.1 | ||||||||||||||||
Optional Device:
A- Optional PLC control.
B- Oil pump set, vacuum pump set, filter element and electrical parts are selected imported brand products.
C- Flow meter, online moisture monitoring
D- Select the appropriate explosion-proof level according to the working environment (ExdII BT4 / ExdII CT4)
A- Optional PLC control.
B- Oil pump set, vacuum pump set, filter element and electrical parts are selected imported brand products.
C- Flow meter, online moisture monitoring
D- Select the appropriate explosion-proof level according to the working environment (ExdII BT4 / ExdII CT4)
Recommend Products
Company Profile
NAKIN Oil Purifiers:
NAKIN products are widely applied in projects of transformer substation, electric department,steel structure, bridge, auto, railway, aviation, chemicals, petroleum etc. The products are exported to more than 30 countries and areas, such as Europe, America, Middle East, Southeast Asia and so on. Each product of NAKIN is professionally tested, and the machine quality and oil quality are guaranteed. It has achieved a good reputation in the hearts of dealers and end users.
Service Commitment：
NAKIN products are widely applied in projects of transformer substation, electric department,steel structure, bridge, auto, railway, aviation, chemicals, petroleum etc. The products are exported to more than 30 countries and areas, such as Europe, America, Middle East, Southeast Asia and so on. Each product of NAKIN is professionally tested, and the machine quality and oil quality are guaranteed. It has achieved a good reputation in the hearts of dealers and end users.
Service Commitment：
CHONGQING NAKIN ELECTROMECHANICAL CO.,LTD will always adhere to the business philosophy of “Responsible for product, Responsible for user, Responsible for sell”, keep the faith to create the national brand, keep innovation, keep improving and keep making the high quality oil purifier&oil filtration products with first-class after-service for getting the customer’s trust and love. Really building a new era in Brand-NAKIN with customers.
Certifications
Packing & Delivery
FAQ
Q1. Can you please offer sample?
A: Sorry, our products are customized one-to-one according to customer needs, so samples cannot be provided.
Q2. What is your packing method?
A: Generally, our goods packed by wooden box.
Q3. What is your terms of payment?
A: Generally, we use T/T, 30% in advance, balance pay after the machine finish.
Q4. How about your delivery time?
A: Generally, it will take 5 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you customized goods for us?
A: Yes, we can customized by your samples or technical drawings.
Q6. If you have any inspection or test for your goods before delivery?
A: Yes, we do the inspection and test before finished goods.
Q7. Can we visit your factory?
A: Yes, we warmly welcome your visiting, and can pick up you at airport or train station.
A: Sorry, our products are customized one-to-one according to customer needs, so samples cannot be provided.
Q2. What is your packing method?
A: Generally, our goods packed by wooden box.
Q3. What is your terms of payment?
A: Generally, we use T/T, 30% in advance, balance pay after the machine finish.
Q4. How about your delivery time?
A: Generally, it will take 5 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you customized goods for us?
A: Yes, we can customized by your samples or technical drawings.
Q6. If you have any inspection or test for your goods before delivery?
A: Yes, we do the inspection and test before finished goods.
Q7. Can we visit your factory?
A: Yes, we warmly welcome your visiting, and can pick up you at airport or train station.
