Products Description
Title goes here.
JZC waste oil distillation machine, it is special fordistilling and regenerating the black waste lube oil, including waste engine oil, lube oil, hydraulic oil, gear oil, dirty diesel
oil, mixed oils etc. This equipment adopts physicochemical way to polymerize, passivity, absorb, eliminate impurities and harmful
contaminations. JZC waste oil distillation machine heat the waste oil to (from 110℃ to 350℃) different temperature under high
vacuum condition, making Hydrocarbon molecules break out, and re-order combination, forming diesel oil, lubricating base oil etc.
JZC machine is very suitable for the small oil refinery company, also for the small oil company who want to make the oil by self.
oil, mixed oils etc. This equipment adopts physicochemical way to polymerize, passivity, absorb, eliminate impurities and harmful
contaminations. JZC waste oil distillation machine heat the waste oil to (from 110℃ to 350℃) different temperature under high
vacuum condition, making Hydrocarbon molecules break out, and re-order combination, forming diesel oil, lubricating base oil etc.
JZC machine is very suitable for the small oil refinery company, also for the small oil company who want to make the oil by self.
Features
◆ Safety design, during the working process, raw materials oil is always flowing and flashing between the distillation tank and heating system, there is no any coking happen in the pipes and tanks, so the system is 100% safety, and long life time.
◆ There are optional ways to heat the oil, like the boiler way by using fuel, natural gas or coal. Also, if machine is small
capacity, we can use the electric heating way.
◆ By using the high vacuum distilling way, so the distilling temperature is low, energy saving and safety.
◆ Using the special chemicals to catalyze the waste oil, which makes sure the final diesel oil, gasoline oil and base oil are good anti-oxidation with good color, there is no bad odor. The final oil can be storage for one year without color change and odor change.
◆ Oil cooler system adopts the SS304, which has the good heating exchange function, long life time.
◆ Environmental friendly, there is only 5-8% of the oil residual under the distilling kettle, which can be use as the boiler heavy fuel, so there is no pollution.
◆ The final oil is high purity; gasoline/diesel oil and lube base oil be loaded in different oil tanks.
◆ Machine design life is more than 20 years, long working life time.
◆ Easy operation, only 1 or 2 workers can operate the machine.
◆ There are optional ways to heat the oil, like the boiler way by using fuel, natural gas or coal. Also, if machine is small
capacity, we can use the electric heating way.
◆ By using the high vacuum distilling way, so the distilling temperature is low, energy saving and safety.
◆ Using the special chemicals to catalyze the waste oil, which makes sure the final diesel oil, gasoline oil and base oil are good anti-oxidation with good color, there is no bad odor. The final oil can be storage for one year without color change and odor change.
◆ Oil cooler system adopts the SS304, which has the good heating exchange function, long life time.
◆ Environmental friendly, there is only 5-8% of the oil residual under the distilling kettle, which can be use as the boiler heavy fuel, so there is no pollution.
◆ The final oil is high purity; gasoline/diesel oil and lube base oil be loaded in different oil tanks.
◆ Machine design life is more than 20 years, long working life time.
◆ Easy operation, only 1 or 2 workers can operate the machine.

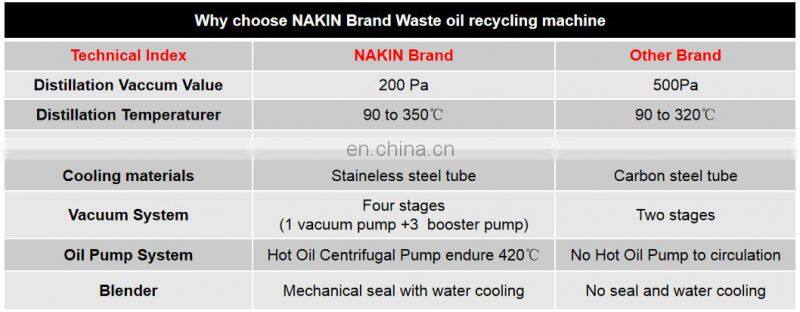

Why Choose Us
Product Paramenters
Index | Unit | JZC-2 | JZC-5 | JZC -10 | JZC -20 | |||
Capacity | Ton / day | 2 | 5 | 10 | 20 | |||
Recovery ratio | % | Above 85% | ||||||
Working pressure | MPa | ≤ 0.4 | ||||||
Working vacuum | MPa | -0.08 ~ -0.0998 | ||||||
Working Temperature | ℃ | 80-350 | ||||||
Working Noise | dB (A) | 75 | ||||||
Power supply | V | 380v, 50hz, 3Phase (Or According user demand) | ||||||
Heating way | Electromagnetic-Heater or boiler ( fuel, natural gas or coal) | |||||||
Pump Motor Power | kW | 15 | 25 | 45 | 60 | |||
Working Size | M2 | 200 | 300 | 500 | 700 | |||
Recovery Rate
Final products | Ratio Percentages | Distillation temperature | Vacuum Value |
Water | 2% | 80-110 | -0.098 |
Gasoline and diesel | 8% | 120-210 | 500Pa |
Light base oil | 40% | 220℃-290℃ | 300Pa |
Heavy base oil (Viscosity ≥SN150 ) | 45% | 300℃-350℃ | 200Pa |
Oil Residual | 5% | ||
Total | 100% |
