Black Oil Recycling Plant, Automotive Used Oil Filtration Equipment Purify to Base Oil
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Diesel Engine Oil Purifier Machine Filtration Equipment Oil Recycling Oil Refinery PlantNegotiableMOQ: 1 -
Mini Refinery Machine Black Oil Distillation Plant Plastic Pyrolysis Black Car Oil Recycle To Base Diesel OilNegotiableMOQ: 1
-
Oil Distillation Machine Purify Black Engine Oil to Base Oil Recycling Machine Other Filtration EquipmentNegotiableMOQ: 1
-
Used Cars Machine Oil Purifier Machinery Engines Motorcycle Engine Oil Cleaning Equipment Other Recycling ProductsNegotiableMOQ: 1
-
Recycling Oil Purifier / Used Oil Filtration Equipment Distillation Refinery for Diesel Engines Lubricant Automotive Engine OilNegotiableMOQ: 1
High Efficiency Waste Oil Refining Plant Dielectric Oil Recycle Machine Distillation Equipment
Product Description
Product Name :

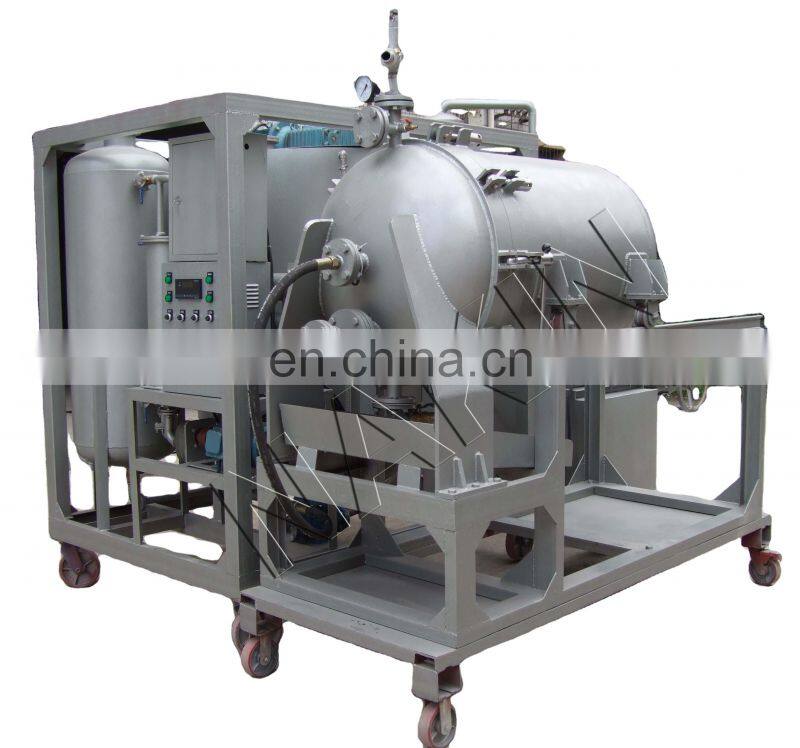

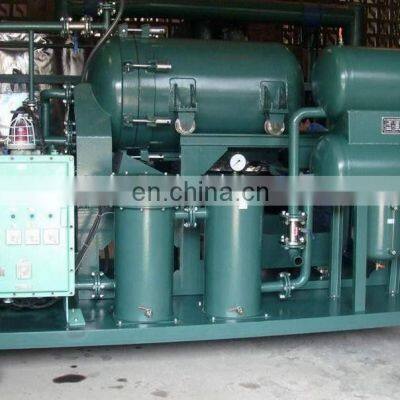

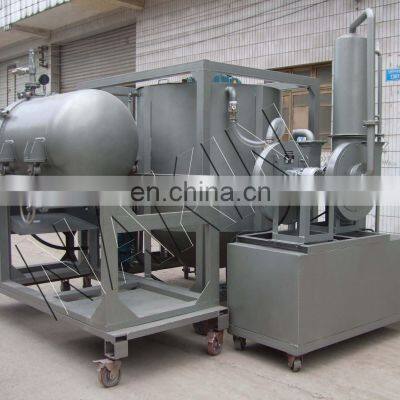

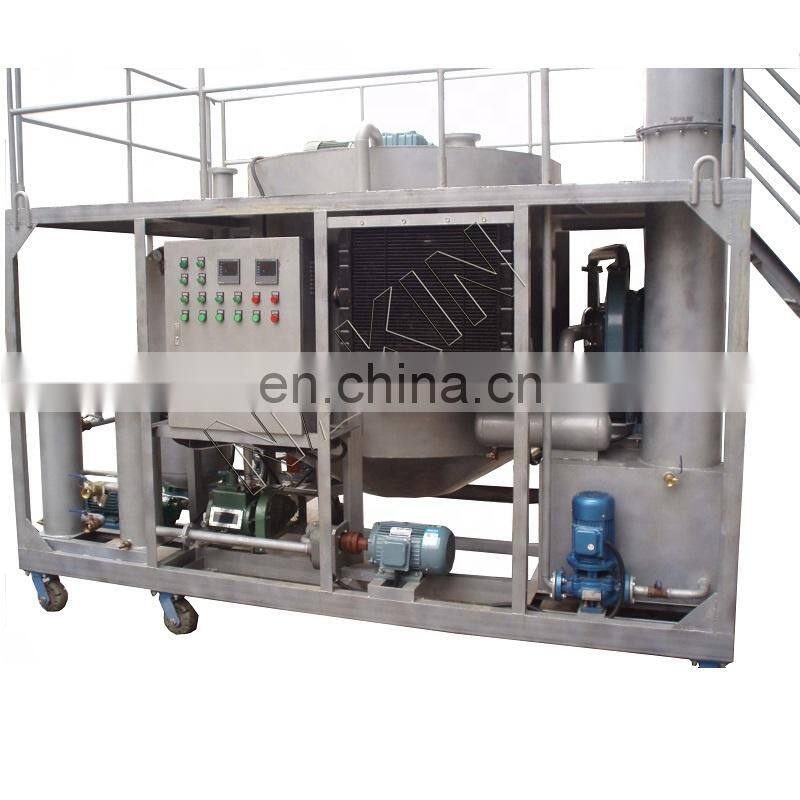

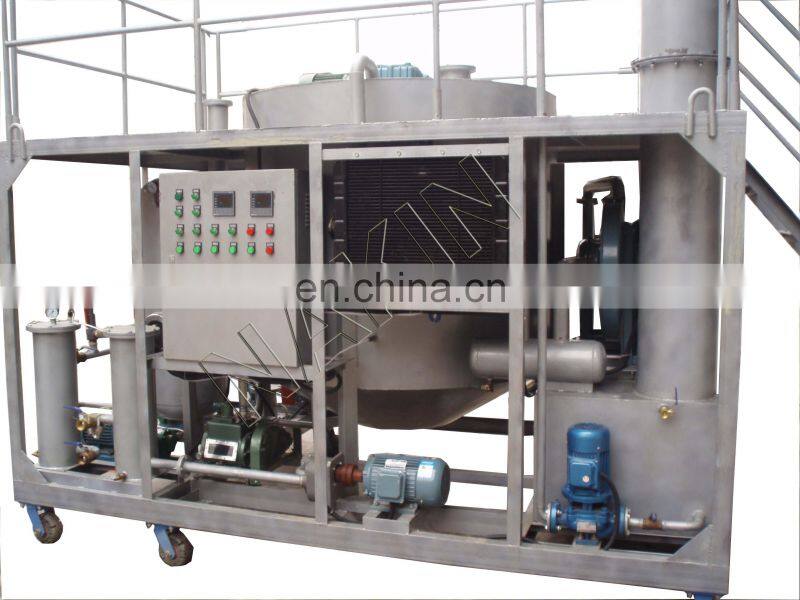

◆ JZS Waste Oil Regeneration System
Application:
◆ Series JZS waste oil regeneration system is mainly for regenerating the waste engine oil, this equipment can effective separate water, gas, particles, deeply oxides, free carbon, colloid, asphalt and wax from oil, making black engine oil become transparent golden color. This equipment has the functions of dewatering, degassing, decolor. Improving the engine oil’s properties, restoring the oil’s performance and lowering wear to ensure the engine can work normally and safely, prolonging the engine and engine oil lifetime.
Oil Index After Treatment
Index | Unit | JZS-1000 | JZS-2000 | JZS -5000 | JZS-10000 | |||
Treatment Capacity | L/Day | 1000 | 2000 | 5000 | 10000 | |||
Ratio of regeneration | % | 75 -95 | ||||||
Working pressure | MPa | -0.095 ～ 0.4 | ||||||
Temperature range | ℃ | 80～180 | ||||||
Working noise | dB(A) | ≤70 | ||||||
Power supply | 380V 50HZ 3PH(As per user’s option) | |||||||
Heating power | kW | 55 | 108 | 145 | 192 | |||
Total power | kW | 68 | 122 | 162 | 216 | |||
Inlet(Outlet) | mm | 32 | 32 | 42 | 42 | |||
Reactor system | mm | 2500x2100x 2300 | 3000x2100x2300 | 3300x2100x2300 | 5600x2100x 2300 | |||
Filtration system | mm | 3000x1200x 1900 | 3000x1400x1900 | 3500x1600x2100 | 2x3500x1600x2100 | |||
Gas treatment system | mm | 1360x800x 3000 | 1360x800x 3000 | 1560x950x 3000 | 1560x950x 3000 | |||
Weight | kgs | 3100 | 4200 | 6700 | 8800 | |||
Index | Standard value | Test result | Test means |
Kinematic viscosity (100℃)/( mm²/s) | 12.5~<16.3 | 11.6 | GB/T 265 |
Flash point (open cup )/℃ | ≥ 220 | 240 | GB/T 3536 |
Pour point /℃ | ≤ -10 | -26 | GB/T 3535 |
Acid number (mg KOH/G) | ≤ 2.0 | 0.04 | GB/T 7304 |
Impurities(%) | ≤ 0.01 | 0.005 | GB/T 511 |
Water soluble acid/alkali | — | none | GB/T 259 |
Viscosity index | ≥80 | 98 | GB/T 1995 |
Sulfate ash content (%) | — | 0 | GB/T 2433 |
Features:
◆ Use of special chemicals to eliminate oil-ion’s charge polarity, collecting oil-ions and separating out them, removing colloid, asphalt and other chemical compounds.
◆ Gas treatment device combined with air filter and vacuum degassing, dewatering to remove the odor and water.
◆ Closed type filtering system use stainless steel mesh, reliable, no pollution. Two filtering units can realize continuous production.
◆ Vacuum degassing, dewatering, removing particles make sure effectively improve oil properties, restoring oil performance.
◆ Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
◆ Compact structure, reasonable layout, small space applied, large output.
◆ Imported Germany electric parts (such as SIEMENS, SCHNEIDER), good performance, safe and reliable.
◆ Use of special chemicals to eliminate oil-ion’s charge polarity, collecting oil-ions and separating out them, removing colloid, asphalt and other chemical compounds.
◆ Gas treatment device combined with air filter and vacuum degassing, dewatering to remove the odor and water.
◆ Closed type filtering system use stainless steel mesh, reliable, no pollution. Two filtering units can realize continuous production.
◆ Vacuum degassing, dewatering, removing particles make sure effectively improve oil properties, restoring oil performance.
◆ Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
◆ Compact structure, reasonable layout, small space applied, large output.
◆ Imported Germany electric parts (such as SIEMENS, SCHNEIDER), good performance, safe and reliable.
