Semi-Automatic Commercial espresso coffee machine

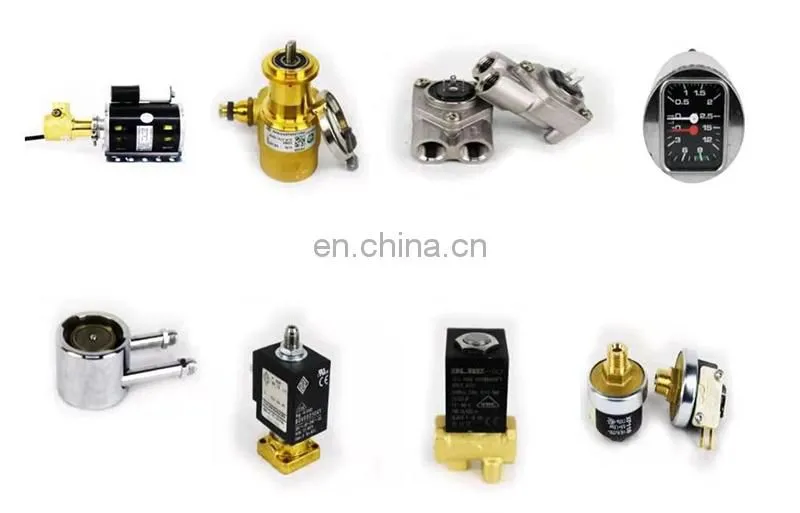

1. SS304 stainless steel for front size

2. Imported water Pump is made in Italy Brand “FLUID-O-TECH”

3. Imported 3-Channel Solenoid Valve is made in Italy Brand “ODE”

4. Imported Pressure Button is made in Italy Brand “MA-TER”

5. Imported 2-channel Solenoid valve is made in Italy Brand “OLAB”

6. Imported fluid meter is made in Italy Brand “GICAR”

7. Imported pressure meter is made in Italy Brand “OAR”

8. Water boiler Pot material is SS304 or Copper

9. Water pot with double safety device to prevent explosive or leaking or high pressure.

 commercial instant coffee machine

 Instruction for use

1. Turn on the power supply to automatically detect the water level. If the water level is not enough, or the new machine starts, the water level will be automatically detected to realize the pumping function. When the pumping is completed, the pumping will stop at the limit position.

2. During the pumping process, the pointer state of the pressure gauge in the middle of the panel can be observed. The red pointer below represents the water pressure, and the white pointer represents the steam pressure.

3. After the completion of water pumping, the heating will automatically detect several temperature points during the heating process, and the heating will be stopped for 3-5 seconds in the middle, when the heating reaches a certain temperature, the heating will automatically stop. At this time, steam and hot water can flow out normally.

4. Coffee making shows the number of seconds, and coffee flow is controlled according to your own needs.

5. Steam function. Press the steam icon light to turn on the steam. At this time, you can make milk bubbles or heat drinks. Press the steam icon light again to turn off the steam

6. When making coffee, the actual temperature will be displayed, and the temperature will change according to the change of water temperature.

7. The drain switch is equipped with a drain valve at 30mm at the bottom right of the machine. When touching the drain valve switch, turn the switch clockwise to drain the water in the boiler, and turn the switch anticlockwise to close the drainage of the boiler. This switch is only used for thorough cleaning of the boiler, and it is closed in normal time.

8. When the boiler has steam, it needs to drain. Open the steam valve, unplug the power supply, exhaust the steam in the tank, open the drain valve to drain water, and close the drain valve.

 Other similar of commercial instant coffee machine

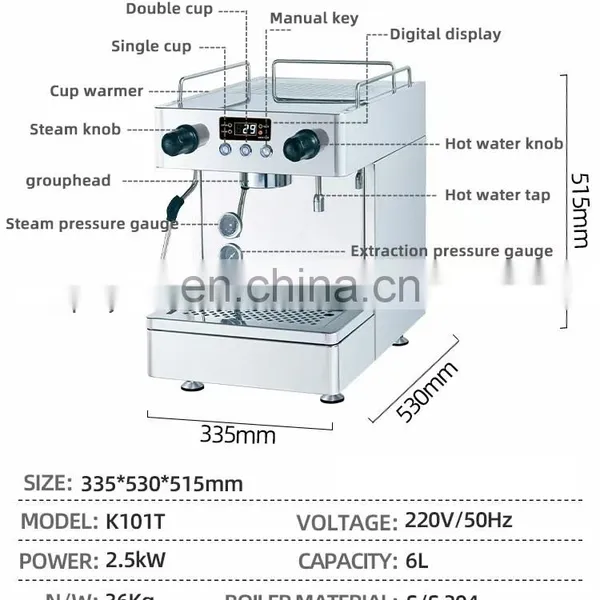

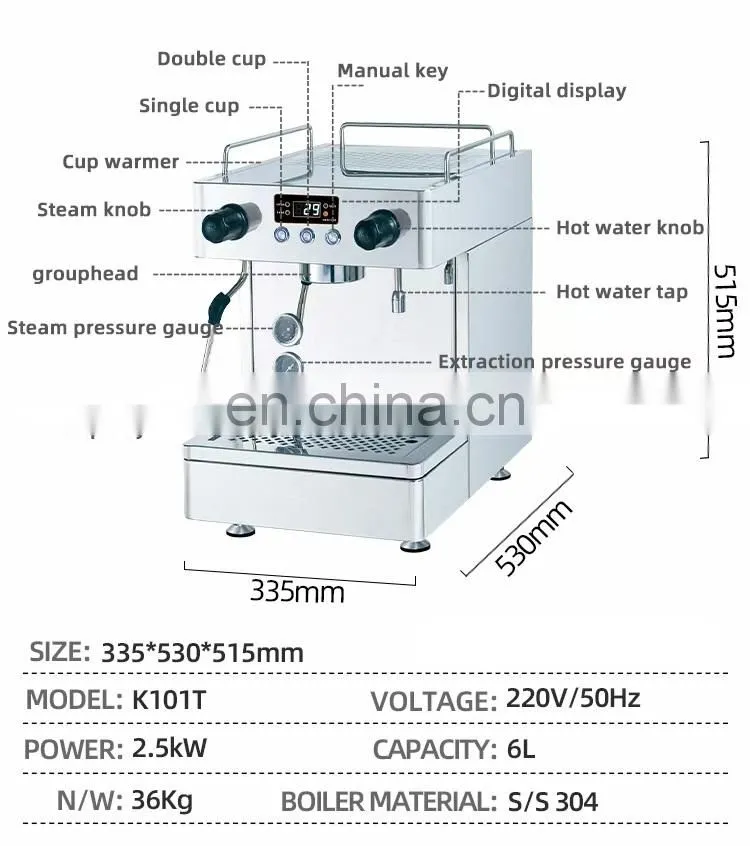

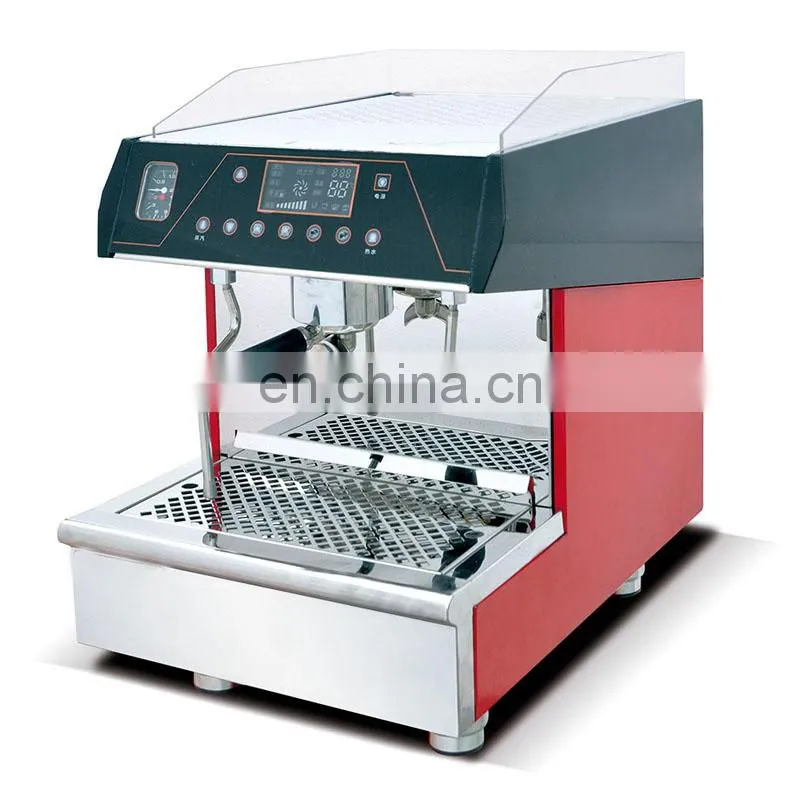

	Model:101T Size:430x560x600mm Volt:220V Hp:2.5KW Versions:9bar Hydraulic Pressure:6L Net weight:42KG

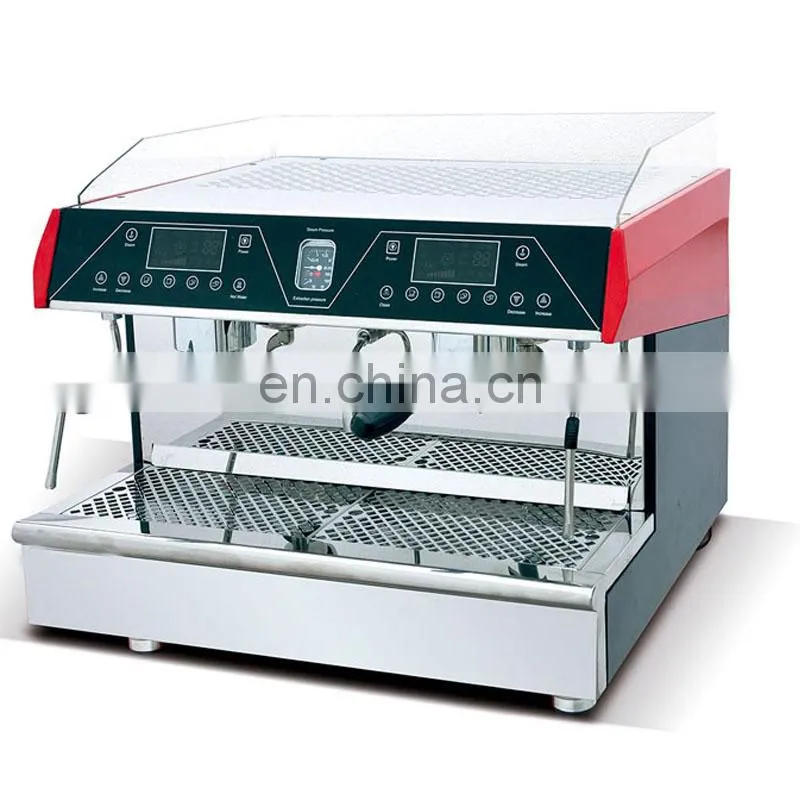

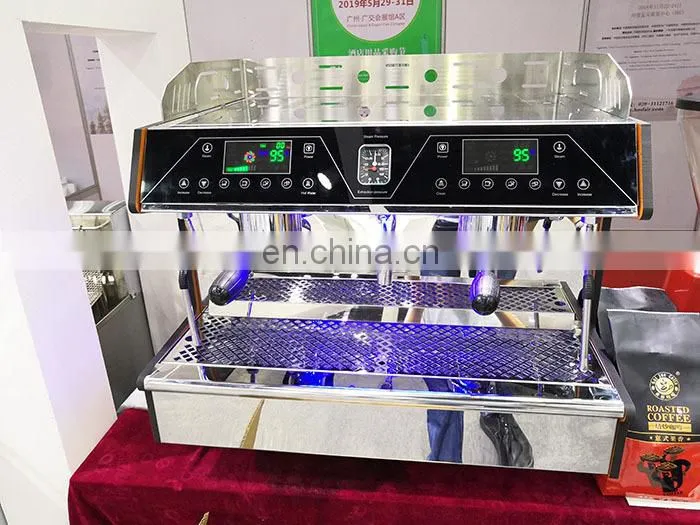

	Model:202T Size:695x560x600mm Volt:220V Hp:3.8KW Versions:9bar Hydraulic Pressure:11L Net weight:60KG

Feature of commercial instant coffee machine

2. In-built rotary pump with balanced by-pass

3. Dual boiler system/Steam generator and coffee brewing seperated

4. Automatic controlled system. Continuous delivery push-button

5. Electric heating with safety thermostat

6. Steady 9 bar coffee brewing, 90.5°C temperature

7. 2 groups, 2steam outlets, 2 coffee brewing holders, 1 water outlet

8. Group with pre-infusion chamber for the best extraction of coffee

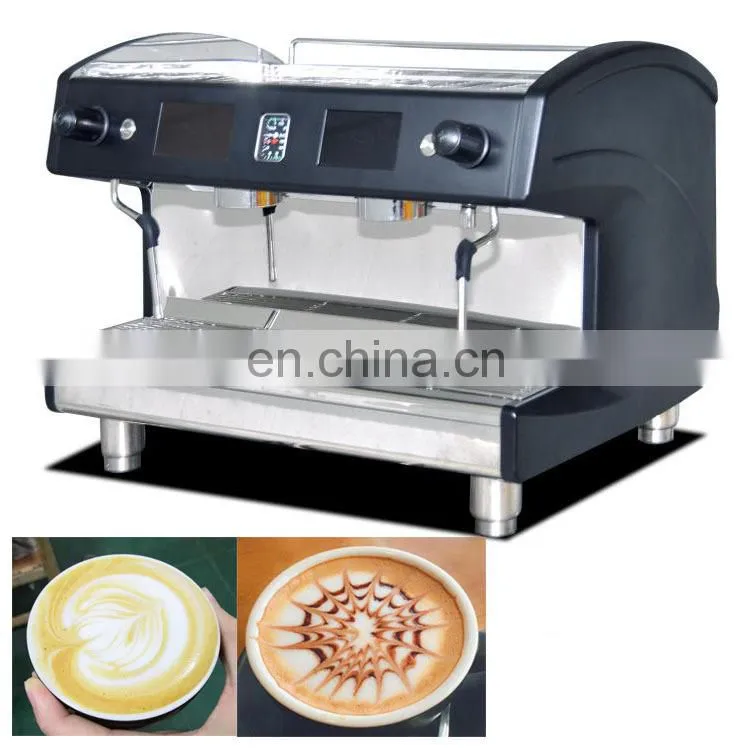

9. Over heat protection system, over pressure protection system art of latte is available

Instructions for use

1. The water level is automatically detected after the power is connected. If the water level is not enough, or the new machine starts, it will automatically detect the water level and operate the pumping function. It will stop pumping when pumping to the maximum  water level.

2,During the pumping process, you can observe the status of the gauge pointer in the middle of the panel. The red pointer below represents the water pressure and the white pointer represents the vapor pressure.

3. After the pumping is completed, it will be automatically heated. The heating process will automatically detect several temperature points, and it will stop for 3~5 seconds to heat up. When it is heated to a certain temperature, it will stop heating automatically. At then, both steam and hot water can flow normally.

4. Brewing coffee settings: single small cup 70ml single large cup 120ml double small cup 120ml double large cup 220ml

5.hot water function: touch hot water icon and hot water will come out and it will automatically turned off for 5 seconds.

6. Steam function: Press the steam icon, the light will turn on and the steam function will be turned on. At this time, you can make foam and heat the drink, then press the steam icon light to turn off the steam function.

7. The actual temperature is displayed when brewing coffee, and the temperature digital display changes depending on the temperature of the water.

8. Drain function:  At the bottom left of the machine, there is a drain valve at 30mm, open the switch clockwise, release the water inside the boiler, and turn off the boiler drain counterclockwise. This switch is only used when the boiler is thoroughly cleaned. In general, the switch is off..

 If you need more detail information of our coffee machine,pls feel free contact us.
