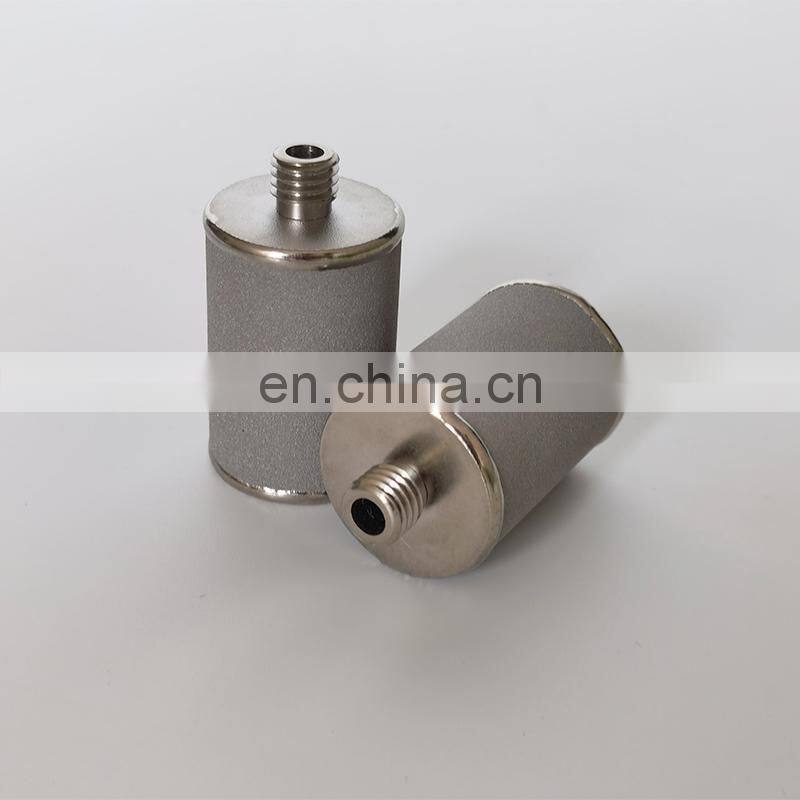

Home > Construction & Decoration > Wire Mesh > Filter Screen > Customized 304 Stainless Steel Powder Filter Element
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1999
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
316L Stainless Steel Powder Sintered Filter Element Stainless Steel Aerator Head MicroporousNegotiableMOQ: 1 -
Customized Stainless Steel Micron Breathable 316L Porous Stainless Steel Powder FilterNegotiableMOQ: 1
-
Customized 304 Powder Filter Element Stainless Steel Powder Sintered Filter Cartridge ElementNegotiableMOQ: 1
-
Customized 304 Stainless Steel Filter Core Powder Sintered Mesh Filter CylinderNegotiableMOQ: 1
-
Customized Titanium Filter Titanium Rod Metal SinteredNegotiableMOQ: 1

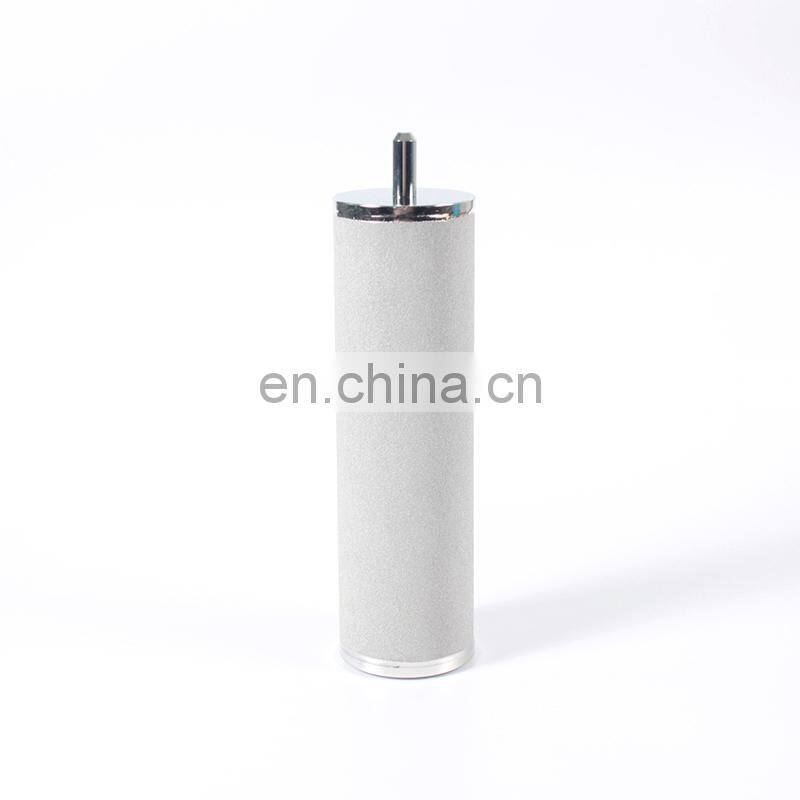

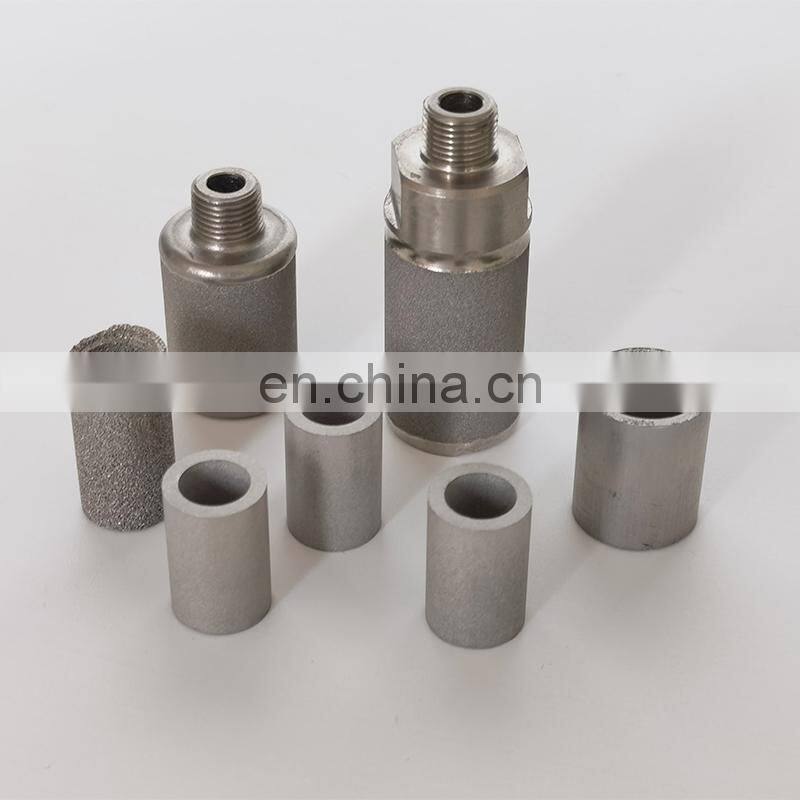

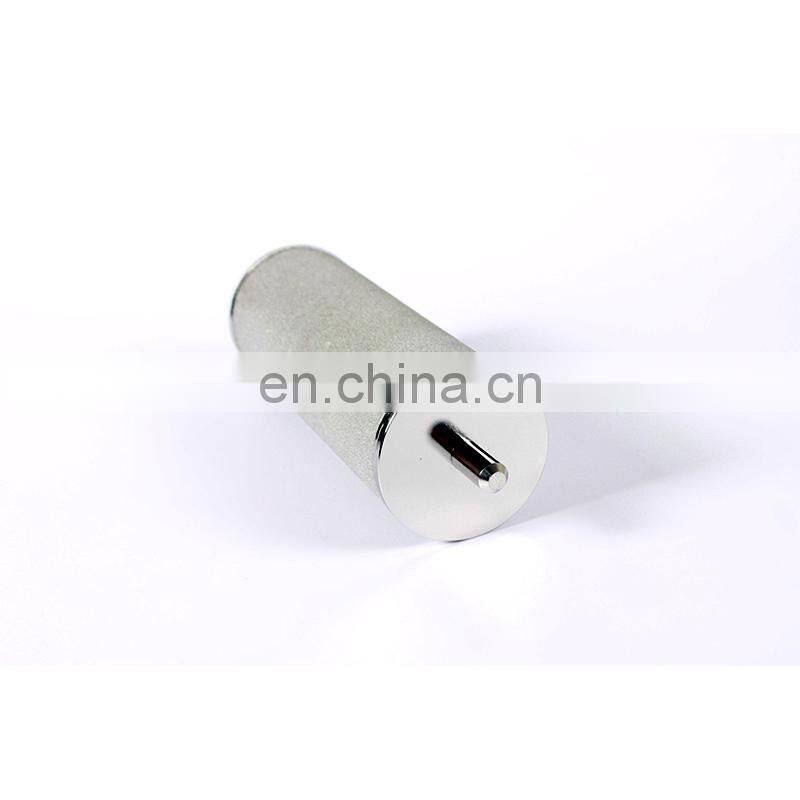

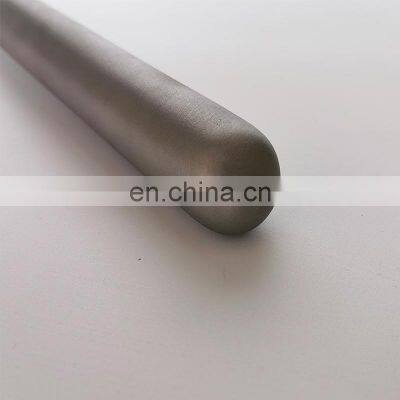

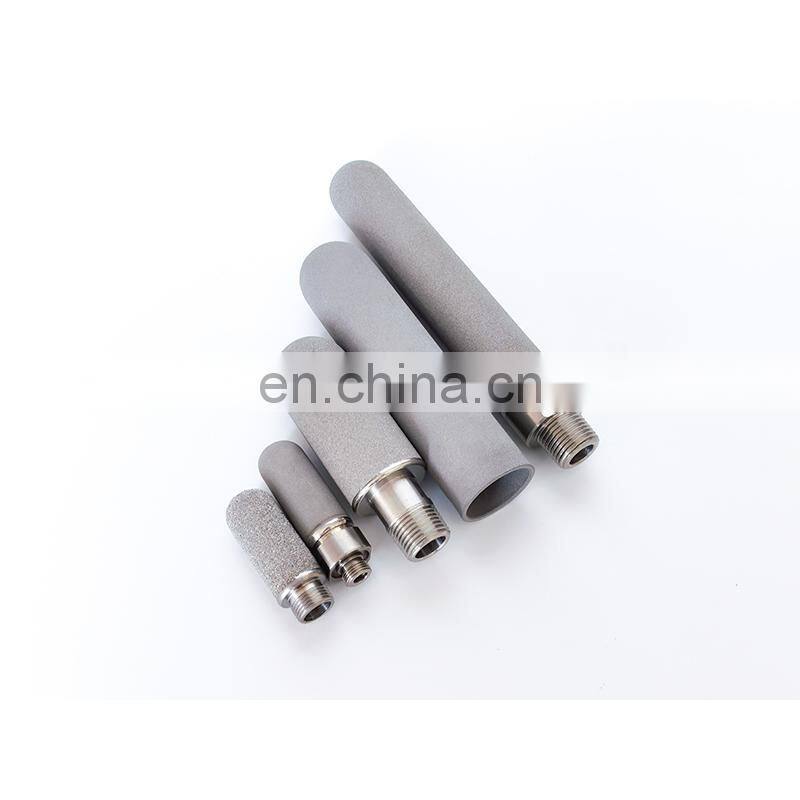

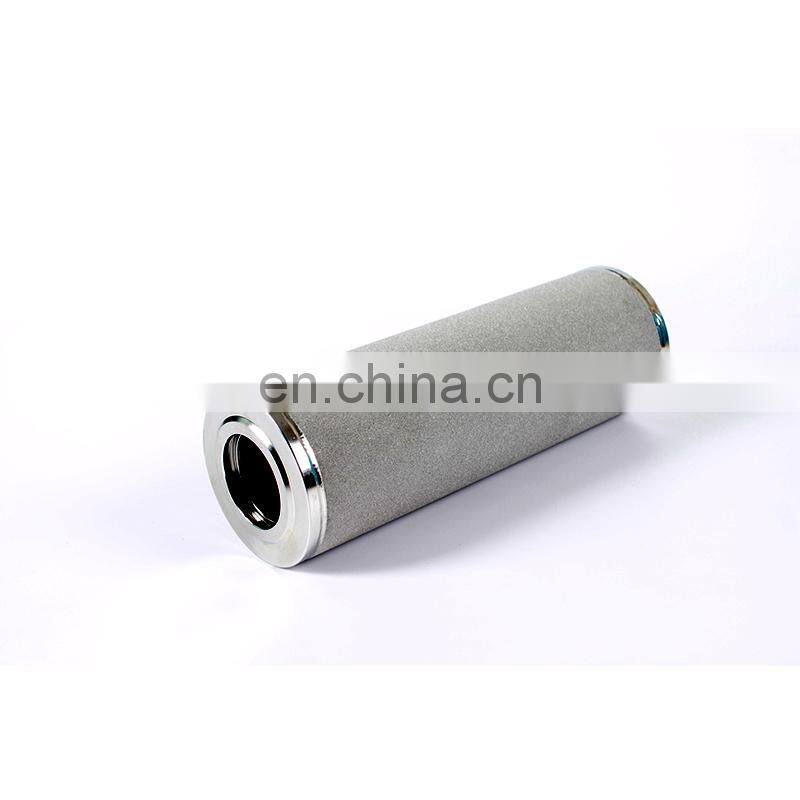

product name | Titanium rod filter element/stainless steel powder filter element |
Specification (seamless tube) | outer diameter (φ) x wall thickness (δ) x length (L) (unit: mm): φ12x2.0 xL(20～100) φ18x2.0xL(20～200)、 φ20x2.5xL(30～300)、 φ25x2.5xL(50～500)、 φ30x2.5xL(50～1000)、φ35x2.5xL(50～1000)、 φ40x2.0xL(50～1000)、φ50x2.5xL(50～1200)、 φ60x2.5xL(100～1200)、φ65x2.5xL(100～1200)、 φ70x2.5xL(100～1000)、φ75x2.5xL(100～1000)、 φ80x3.0xL(100～1000)、φ90x3.0xL(100～1200)、 φ100x3.0xL(50～1200)、φ135x5.0xL(100～500)、 φ200x5.0xL(50～500)、 The above can be made as a whole (all within the length of the existing mold can be made as a whole) Special specifications and lengths can be docked and customized |
Filter element material | titanium and stainless steel |
Filtration accuracy | 0.22-100μm |
Wall thickness | 2.5-3.0 (allowable deviation ±0.5mm) |
Diameter | Allowable deviation ±1.5mm |

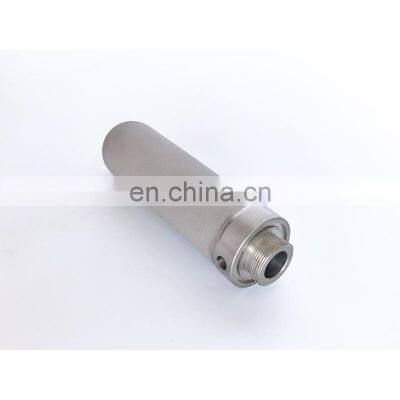

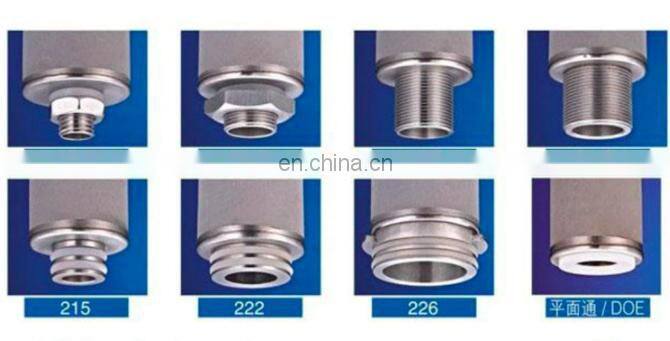

Interface form | threaded interface (G1/2, G3/4, M20, M30, M36, M42, M50, etc.); Filter element universal interface (215, 220, 222, 226, flat pressure type, etc.); Flange type interface, special interface can be processed according to requirements. |
Product Advantage
The porous metal filter element produced by Xinforte is completely passed through with metal powder or metal fiber;
Made by high temperature sintering. The combination of this special process and metal materials enables the majority of users to obtain
To technical advantages and economic benefits.
To technical advantages and economic benefits.
Stable shape
Unlike most filter elements, the metal powder elements of Xinforte can be directly installed into the equipment as structural elements without auxiliary support. The metal characteristics of Xinforte's products can withstand a relatively high load. High toughness, strong ability to withstand alternating or impact loads.
High temperature resistance, heat shock resistance.
Stainless steel can operate at a high temperature of 600 degrees, and special alloys can even reach 900 degrees.
preservative.
It can be used in acid, alkali, salt solution, or in an oxidizing or reducing atmosphere.
The pore size can be precisely controlled.
According to application requirements, metal powder can be made into components with pores as small as 0.22 microns, or components with pores as small as 200 microns. Far better than metal wire mesh with the same filtration accuracy.
Easy to clean.
Such as high-pressure steam, vacuum cleaning, or the use of various organic and inorganic chemicals.
The pore size can be precisely controlled.
According to application requirements, metal powder can be made into components with pores as small as 0.22 microns, or components with pores as small as 200 microns. Far better than metal wire mesh with the same filtration accuracy.
Easy to clean.
Such as high-pressure steam, vacuum cleaning, or the use of various organic and inorganic chemicals.
Scope of application
Pharmaceutical industry
In the pharmaceutical industry, decarbonization and filtration in the concentration of large infusions, small injections, eye
drops, and oral liquids.
Security filtering before terminal filtering in the rare distribution link. Impurity removal in the production process of API;
drops, and oral liquids.
Security filtering before terminal filtering in the rare distribution link. Impurity removal in the production process of API;
filter.
Chemical industry
Decarbonization filtration and precision filtration of liquid products, liquid raw materials, and pharmaceutical intermediates in the chemical industry,
Ultra-fine body, filtration and recovery of catalysts, precision filtration after resin adsorption and system heat transfer oil,
Chemical industry
Decarbonization filtration and precision filtration of liquid products, liquid raw materials, and pharmaceutical intermediates in the chemical industry,
Ultra-fine body, filtration and recovery of catalysts, precision filtration after resin adsorption and system heat transfer oil,
Material removal and filtration, catalytic gas purification, etc.
Water treatment industry
Ultrafiltration, RO, EDI system security filtration in water treatment, filtration after ozone sterilization and ozone aeration.
Oil field return water filtration, security filtration before reverse osmosis in the field of seawater desalination.
Sewage treatment;
Water treatment industry
Ultrafiltration, RO, EDI system security filtration in water treatment, filtration after ozone sterilization and ozone aeration.
Oil field return water filtration, security filtration before reverse osmosis in the field of seawater desalination.
Sewage treatment;
The energy consumption of the unconventional aerator with the microporous pure titanium aeration head is reduced by 40%, and the sewage treatment capacity is nearly doubled. The service life is as long as ten years. It is especially suitable for urban sewage, new expansion of large-scale water plants and transformation of old aeration tanks.
food industry;
food industry;
Clarification of beverages, liquor, beer, vegetable oil, mineral water, soy sauce and vinegar in food and beverage;
filter.
other industry
High temperature decarburization in the dye industry, de-white clay filtration. In terms of gas purification, as long as it
includes steam,
Purification and filtration of compressed air and catalytic gas.
other industry
High temperature decarburization in the dye industry, de-white clay filtration. In terms of gas purification, as long as it
includes steam,
Purification and filtration of compressed air and catalytic gas.
Company Profile
FAQ
1. who are we?
We are based in Hebei, China, start from 2014,sell to Western Europe(15.00%),North America(14.00%),Mid East(9.00%),Eastern Asia(9.00%),Central America(8.00%),South America(8.00%),Africa(8.00%),Southeast Asia(6.00%),Northern Europe(6.00%),Eastern Europe(6.00%),South Asia(4.00%),Oceania(3.00%),Southern Europe(3.00%),Domestic Market(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Filters for Industrial,Filter Element,Filtration Purification Equipment,Cartridge Filter,Filter Cylinder
4. why should you buy from us not from other suppliers?
We are the leading manufacturer of filtration products in Hebei of China. With the advanced equipment and production line, strict quality control system, and professional sales team, we can provide you superior quality and service. Sincerely welcom you!
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Hebei, China, start from 2014,sell to Western Europe(15.00%),North America(14.00%),Mid East(9.00%),Eastern Asia(9.00%),Central America(8.00%),South America(8.00%),Africa(8.00%),Southeast Asia(6.00%),Northern Europe(6.00%),Eastern Europe(6.00%),South Asia(4.00%),Oceania(3.00%),Southern Europe(3.00%),Domestic Market(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Filters for Industrial,Filter Element,Filtration Purification Equipment,Cartridge Filter,Filter Cylinder
4. why should you buy from us not from other suppliers?
We are the leading manufacturer of filtration products in Hebei of China. With the advanced equipment and production line, strict quality control system, and professional sales team, we can provide you superior quality and service. Sincerely welcom you!
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
