Home > Consumer Electronics > Other Consumer Electronics > Description of Bluetooth RFID Reader

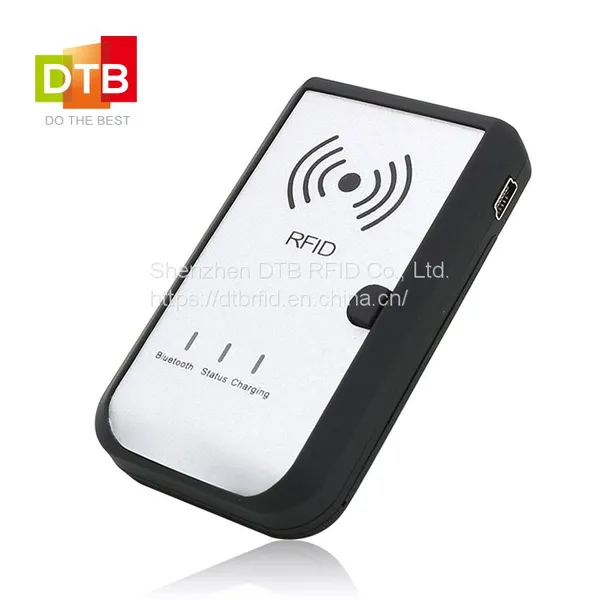

Description of Bluetooth RFID Reader

Name: Description of Bluetooth RFID Reader
Brand: DTB RIFD/DTB IOT
SKU: 168602121
Availability: InStock

Description of Bluetooth RFID Reader thumbnail-1

Description of Bluetooth RFID Reader photo-1

US$ 0.5 - 5 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Brand Name:

DTB RIFD/DTB IOT

Contact Supplier Request Quote Chat Now

Shenzhen DTB RFID Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

8 days

Product Details
Company Profile
Contact Us

Brand Name DTB RIFD/DTB IOT

The Bluetooth RFID reader is EOL( end of life), our RFID Desktop Reader, UHF RFID Desktop Terminal QY-DR100U and UHF RFID Desktop Terminal QY-DR300U are suitable alternatives.

To fulfill the requirements of the customers for E-wallet, E-commerce applications, this Bluetooth reader supports ISO14443-A or ISO18092 or ISO15693. The Bluetooth reader is characterized by its read/write functions, Bluetooth communications, and battery charging management functions, etc.

Overview

Smart outlook, light and handy, portable;

Bluetooth communicates online devices supporting the standard blue tooth 2.0;

Peripheral press button can choose the active reading card mode, convenient to use.

Specifications of Bluetooth RFID Reader

Basic Parameters
Model	Bluetooth Reader & Writer
Dimensions	80.5mm X 52.5mm X 5.5mm
Keys	One power button, one trigger button
Battery	Standard 3.7V/420mAh lithium battery
Operating Temp	-10℃ to +50℃
Interface	USB
Wireless Data	Bluetooth
Communication	Bluetooth
Indicators	Buzz LED indicator: charging indicator light
Indicators	With low battery, LED light or buzz is active.
Protection	Equipped with over-charge protection, over-discharge protection and short-circuit protection
RFID Parameters
Frequency Range	13.56MHz
Protocols and Chip supported	Option 1:ISO14443A- MIFARE Classic 1K/4K,Ultralight EV1
	Option 2:ISO18092- NTAG203/213/215/216,and Mifare S50,S70,ultralight
	Option 3: ISO15693-I code sli, I code sli-l, I code sli-s
Support OS	Option 1: PC (windows 32bit) and Android 2.0/4.0 (Available for each above protocol)
Support OS	Option 2: IOS (Available for each above protocol)
Current Consumption
Read Range	3-5cm, depend on the installation site and the antenna
Bluetooth Module Parameters
Frequency Range	2.4GHz
Bluetooth	When main machine searching the bluetooth reader and connecting successfully, then can use virtual serial port to communication
Data Rate	Utmost 115200dps
Indicators	Bluetooth work indicator

DTB rfid is a professional rfid providers, we provide rfid solutions, portable rfid card reader, best handheld rfid reader, handheld rfid tag reader, bluetooth rfid card reader, wireless rfid card reader, microchip rfid reader, embedded rfid reader, RFID Tag and etc. Want to know wireless rfid reader price or more? Please contact us.
